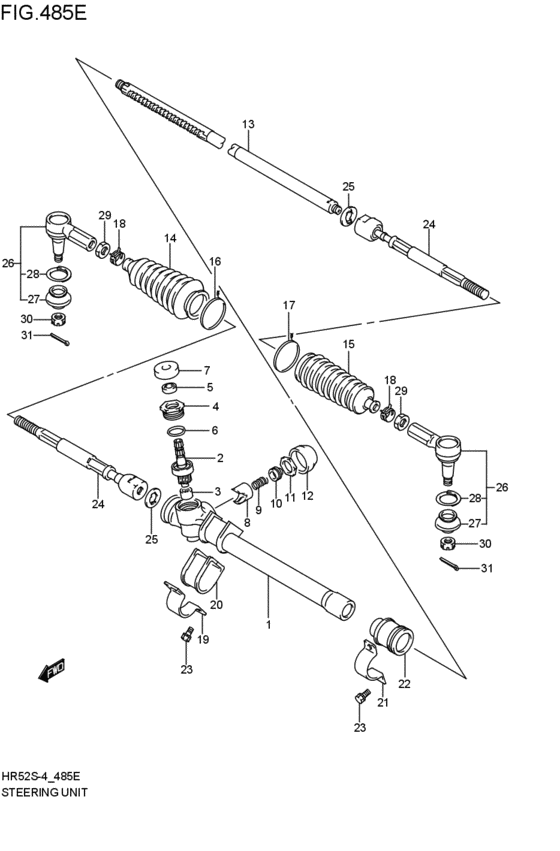

steering unit (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48510-70H02-000
ケース,ステアリングギヤ
2006-05-01~ |
48510-70H02-000 |
— | ||
| replacement | |||||
|
1
|
1
48510-70H03-000 CASE,STRG GEAR2006-05-01~ |
48510-70H03-000 |
US $256 |
||
|
2
|
2
48550-78F02-000 PINION,STEERING2006-05-01~ |
48550-78F02-000 |
from US $90.90 |
||
|
3
|
3
09263-10014-000 BEARING(10X14X10)Bearing, cl rlse low 2006-05-01~ |
09263-10014-000 |
from US $7.56 |
||
|
4
|
4
48562-82000-000
Plug, pinion bearing
2006-05-01~ |
48562-82000-000 |
— | ||
| replacement | |||||
|
4
|
4
48562-82K00-000 PLUG,PINION BEARING2006-05-01~ |
48562-82K00-000 |
US $12.32 |
||
|
5
|
5
09283-15002-000 SEAL,OIL(15X25X5)2006-05-01~ |
09283-15002-000 |
US $2.72 |
||
|
6
|
6
09280-34003-000 O RING(D:2,ID:34.1)2006-05-01~ |
09280-34003-000 |
US $1.92 |
||
|
7
|
7
48451-82000-000 PACKING,STEERING GEAR CASE2006-05-01~ |
48451-82000-000 |
US $2.56 |
||
|
8
|
8
48534-60J00-000 PLUNGER,STEERING RACK2006-05-01~ |
48534-60J00-000 |
from US $17.42 |
||
|
9
|
9
09440-19011-000 SPRING2006-05-01~ |
09440-19011-000 |
from US $1.49 |
||
|
10
|
10
48535-76G01-000 SCREW,RACK DAMPER2006-05-01~ |
48535-76G01-000 |
US $7.69 |
||
|
11
|
11
48536-76G00-000 NUT,DAMPER SCREW LOCK2006-05-01~ |
48536-76G00-000 |
US $2.56 |
||
|
12
|
12
48536-58000-000 CAP,RACK DAMPER SCREW2006-05-01~ |
48536-58000-000 |
US $1.92 |
||
|
13
|
13
48531-70H00-000 RACK,STEERING2006-05-01~ |
48531-70H00-000 |
US $121.44 |
||
|
14
|
14
48571-82000-000 BOOT,STEERING PINION SIDE2006-05-01~ |
48571-82000-000 |
US $32 |
||
|
15
|
15
48572-60B10-000 BOOT,STEERING RACK SIDE2006-05-01~ |
48572-60B10-000 |
US $28.80 |
||
|
16
|
16
09460-01028-000 WIRE2006-05-01~ |
09460-01028-000 |
US $13.20 |
||
|
17
|
17
09460-01029-000 WIRE2006-05-01~ |
09460-01029-000 |
US $13.20 |
||
|
18
|
18
09401-15407-000 CLIPBolt, 2nd air hose 2006-05-01~ |
09401-15407-000 |
from US $1.15 |
||
|
19
|
19
48521-76G00-000 BRACKET,STEERING PINION SIDE2006-05-01~ |
48521-76G00-000 |
US $12.64 |
||
|
20
|
20
48525-76G00-000 MOUNT,STRG PINION SIDE2006-05-01~ |
48525-76G00-000 |
US $15.84 |
||
|
21
|
21
48522-82000-000 BRACKET,STEERING RACK SIDE2006-05-01~ |
48522-82000-000 |
US $17.60 |
||
|
22
|
22
48526-77A00-000 MOUNT,STRG RACK SIDE2006-05-01~ |
48526-77A00-000 |
from US $8.91 |
||
|
23
|
23
09117-08099-000
ボルト,8X25
2006-05-01~ |
09117-08099-000 |
— | ||
| replacement | |||||
|
23
|
23
09117-08101-000 BOLT(8X25)2006-05-01~ |
09117-08101-000 |
from US $1.92 |
||
|
24
|
24
48830-78F01-000 TIE-ROD,STEERING2006-05-01~ |
48830-78F01-000 |
from US $81.79 |
||
|
25
|
25
48841-77A00-000 WASHER,STEERING TIE ROD LOCK2006-05-01~ |
48841-77A00-000 |
US $5.32 |
||
|
26
|
26
48810-60J00-000 END,STEERING TIE-ROD2WD; 2006-05-01~ |
48810-60J00-000 |
US $93.60 |
||
|
27
|
27
48819-60B00-000
BOOT SET
2006-05-01~ |
48819-60B00-000 |
— | ||
| replacements | |||||
|
27
|
27
48819-60B01-000
Boot Set
2006-05-01~ |
48819-60B01-000 |
— | ||
|
27
|
27
48800-60810-000 Boot Set2006-05-01~ |
48800-60810-000 |
US $21.60 |
||
|
28
|
28
09401-23402-000 CLIP2006-05-01~ |
09401-23402-000 |
US $1.92 |
||
|
29
|
29
09140-12030-000 NUTNut, tie rod (rh thread) 2006-05-01~ |
09140-12030-000 |
from US $1.42 |
||
|
30
|
30
08314-4012A-000 NUT2006-05-01~ |
08314-4012A-000 |
from US $0.99 |
||
|
31
|
31
04111-3020A-000 PIN2006-05-01~ |
04111-3020A-000 |
from US $0.59 |
||
