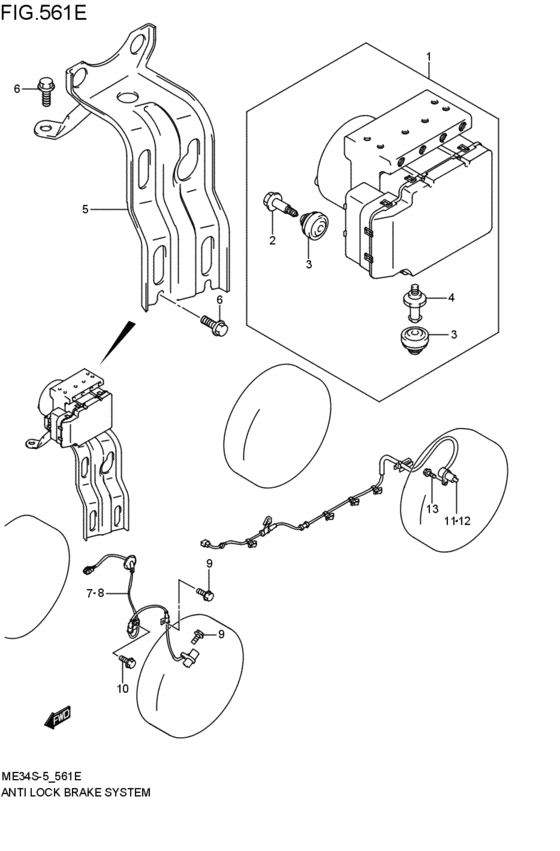

antilock brake system (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56100-78F00-000 ACTUATOR ASSY,ABS2WD; 2005-12-01~2007-07-01 |
56100-78F00-000 |
US $1,888.56 |
||
|
2
|
2
56111-75F00-000 BOLT,ACTUATOR MOUNT2005-12-01~2007-07-01 |
56111-75F00-000 |
US $4.11 |
||
|
3
|
3
56112-75F00-000 DAMPER,ACTUATOR MOUNT2005-12-01~2007-07-01 |
56112-75F00-000 |
from US $2.03 |
||
|
4
|
4
56113-75F00-000
BOLT,ACTUATOR LWR MOUNT
2005-12-01~2007-07-01 |
56113-75F00-000 |
— | ||
|
5
|
5
56160-78F00-000
BRACKET,ACTUATOR
2005-12-01~2007-07-01 |
56160-78F00-000 |
— | ||
|
6
|
6
01550-0812A-000 Bolt2005-12-01~2007-07-01 |
01550-0812A-000 |
from US $0.91 |
||
|
7
|
7
56210-83E11-000
SENSOR,FR WHEEL,R
2005-12-01~2007-07-01 |
56210-83E11-000 |
— | ||
| replacement | |||||
|
7
|
7
56210-83E12-000 SENSOR,FR WHEEL,R2005-12-01~2007-07-01 |
56210-83E12-000 |
US $163.39 |
||
|
8
|
8
56220-83E11-000
SENSOR,FR WHEEL,L
2005-12-01~2007-07-01 |
56220-83E11-000 |
— | ||
| replacement | |||||
|
8
|
8
56220-83E12-000 SENSOR,FR WHEEL,L2005-12-01~2007-07-01 |
56220-83E12-000 |
US $163.39 |
||
|
9
|
9
02162-0616A-000 SCREW2005-12-01~2007-07-01 |
02162-0616A-000 |
from US $1.24 |
||
| replacement | |||||
|
9
|
9
02162-0616B-000 SCREWBolt, adjust 2005-12-01~2007-07-01 |
02162-0616B-000 |
from US $0.96 |
||
|
10
|
10
02162-0612A-000 SCREWBolt, bracket 2005-12-01~2007-07-01 |
02162-0612A-000 |
from US $0.79 |
||
|
11
|
11
56310-82H21-000
SENSOR,RR WHEEL,R
2WD; 2005-12-01~2007-07-01 |
56310-82H21-000 |
— | ||
| replacement | |||||
|
11
|
11
56310-82H22-000 SENSOR,RR WHEEL,R2WD; 2005-12-01~2007-07-01 |
56310-82H22-000 |
US $149.41 |
||
|
12
|
12
56320-82H21-000
SENSOR,RR WHEEL,L
2WD; 2005-12-01~2007-07-01 |
56320-82H21-000 |
— | ||
| replacement | |||||
|
12
|
12
56320-82H22-000 SENSOR,RR WHEEL,L2WD; 2005-12-01~2007-07-01 |
56320-82H22-000 |
US $149.41 |
||
|
13
|
13
02162-0612A-000 SCREWBolt, bracket 2005-12-01~2007-07-01 |
02162-0612A-000 |
from US $0.79 |
||
