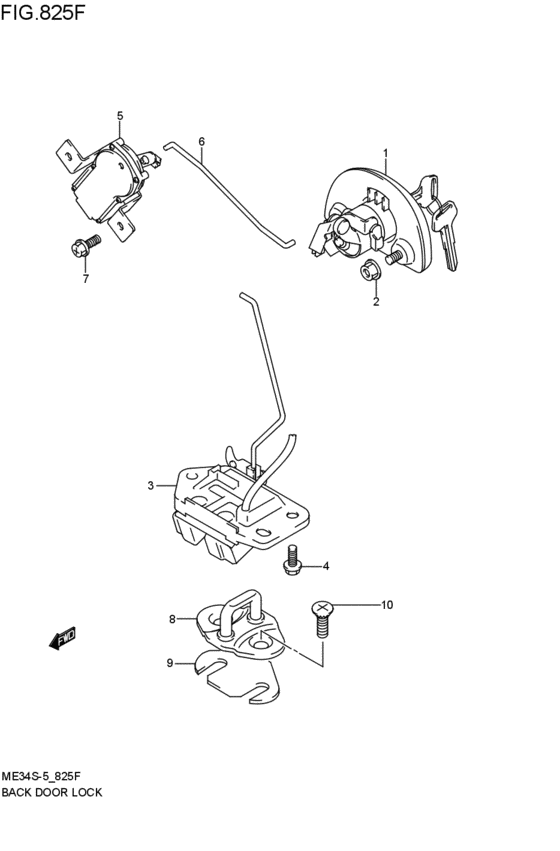

back door lock (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82500-78820-ZJ3 CYLINDER,BACK DR LOCKブラック; 2005-12-01~2007-07-01 |
82500-78820-ZJ3 |
US $114.82 |
||
|
1
|
1
82500-78820-Z2S CYLINDER,BACK DR LOCKシルバ-; 2005-12-01~2007-07-01 |
82500-78820-Z2S |
US $114.82 |
||
|
1
|
1
82500-78820-Z7T CYLINDER,BACK DR LOCKホワイト; 2005-12-01~2007-07-01 |
82500-78820-Z7T |
US $114.82 |
||
|
1
|
1
82500-78820-Z9T
シリンダアッシ,バックドアロック(レッド)
レッド; 2005-12-01~2007-07-01 |
82500-78820-Z9T |
— | ||
|
2
|
2
08316-1006A-000 NUT2005-12-01~2007-07-01 |
08316-1006A-000 |
from US $0.80 |
||
|
3
|
3
82510-78F01-000 LATCH ASSY,BACK DR2005-12-01~2007-07-01 |
82510-78F01-000 |
from US $80.22 |
||
|
4
|
4
02162-0616B-000 SCREWBolt, adjust 2005-12-01~2007-07-01 |
02162-0616B-000 |
from US $0.96 |
||
|
5
|
5
82550-76F00-000 ACTUATOR,BACK DR LATCH2005-12-01~2007-07-01 |
82550-76F00-000 |
US $110.40 |
||
|
6
|
6
82555-76F00-000 ROD,BACK DOOR ACTUATOR2005-12-01~2007-07-01 |
82555-76F00-000 |
US $4.75 |
||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust 2005-12-01~2007-07-01 |
02162-0616B-000 |
from US $0.96 |
||
|
8
|
8
82610-60D00-000 STRIKER,DOOR LATCH2005-12-01~2007-07-01 |
82610-60D00-000 |
from US $9.68 |
||
|
9
|
9
78199-78000-000 SPACER,DOOR LOCK STRIKER2005-12-01~2007-07-01 |
78199-78000-000 |
from US $0.68 |
||
|
10
|
10
09137-08004-000 SCREW(8X18)2005-12-01~2007-07-01 |
09137-08004-000 |
from US $0.99 |
||
| replacement | |||||
|
10
|
10
09137-08011-000 SCREW(8X18)2005-12-01~2007-07-01 |
09137-08011-000 |
from US $1.40 |
||
