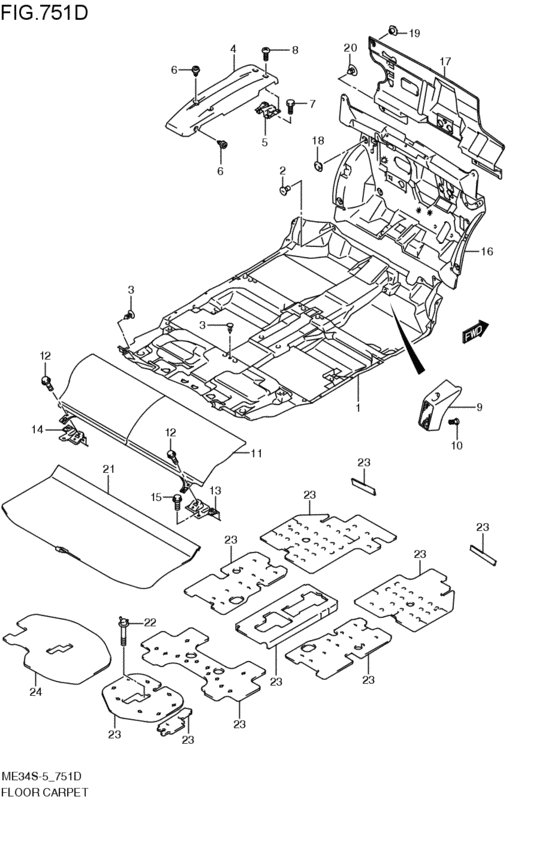

floor mat / carpet (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75110-82H00-R3F CARPET,FLブラック; 2005-12-01~2007-07-01 |
75110-82H00-R3F |
US $580.80 |
||
|
2
|
2
09148-05042-000 CLIP2005-12-01~2007-07-01 |
09148-05042-000 |
US $1.12 |
||
|
3
|
3
09409-10302-P4Z CLIP(GRAY)グレ-; 2005-12-01~2007-07-01 |
09409-10302-P4Z |
US $12.90 |
||
|
4
|
4
75121-78F00-R8R COVER,FL CENTERブラウン; 2005-12-01~2007-07-01 |
75121-78F00-R8R |
US $32.02 |
||
|
5
|
5
75122-78F01-000 BRACKET,FLOOR CENTER COVER2005-12-01~2007-07-01 |
75122-78F01-000 |
US $6.92 |
||
|
6
|
6
09409-06322-P4Z CLIP(GRAY)グレ-; 2005-12-01~2007-07-01 |
09409-06322-P4Z |
from US $1.82 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket 2005-12-01~2007-07-01 |
02162-0612A-000 |
from US $0.79 |
||
|
8
|
8
03141-0512A-000 SCREWScrew, belt cooling duct 2005-12-01~2007-07-01 |
03141-0512A-000 |
from US $0.76 |
||
|
9
|
9
75491-76F00-000 PEDAL,FOOTREST2005-12-01~2007-07-01 |
75491-76F00-000 |
US $22.26 |
||
|
10
|
10
75492-76G00-000
Clip, footrest
2005-12-01~2007-07-01 |
75492-76G00-000 |
— | ||
| replacement | |||||
|
10
|
10
75492-76G01-000 CLIP,FOOTREST2005-12-01~2007-07-01 |
75492-76G01-000 |
US $2.69 |
||
|
11
|
11
75101-82H01-R3F
Flap assy,rr floor
ブラック; 2005-12-01~2007-07-01 |
75101-82H01-R3F |
— | ||
|
12
|
12
02162-0612A-000 SCREWBolt, bracket 2005-12-01~2007-07-01 |
02162-0612A-000 |
from US $0.79 |
||
|
13
|
13
75451-73H10-000 COVER,RR FL SIDE,R2005-12-01~2007-07-01 |
75451-73H10-000 |
US $18.77 |
||
|
14
|
14
75456-73H10-000 COVER,RR FL SIDE,L2005-12-01~2007-07-01 |
75456-73H10-000 |
US $18.77 |
||
|
15
|
15
01551-1020A-000 Bolt2005-12-01~2007-07-01 |
01551-1020A-000 |
US $17.30 |
||
|
16
|
16
75220-82H00-000
SILENCER,DASH PANEL
2005-12-01~2007-07-01 |
75220-82H00-000 |
— | ||
|
17
|
17
75280-78F00-000
SILENCER,DASH OUTER
2005-12-01~2007-07-01 |
75280-78F00-000 |
— | ||
|
18
|
18
09148-05037-000 CLIP2005-12-01~2007-07-01 |
09148-05037-000 |
from US $1.28 |
||
|
19
|
19
09148-05037-000 CLIP2005-12-01~2007-07-01 |
09148-05037-000 |
from US $1.28 |
||
|
20
|
20
09409-06321-000 CLIP2005-12-01~2007-07-01 |
09409-06321-000 |
from US $1.33 |
||
|
21
|
21
75440-82H00-R3F
COVER,SPARE TIRE
ブラック; 2005-12-01~2007-07-01 |
75440-82H00-R3F |
— | ||
|
22
|
22
75463-70B00-000
SCREW,SPARE TIRE
2005-12-01~2007-07-01 |
75463-70B00-000 |
— | ||
|
23
|
23
99611-60A01-000 SHEET,SILENCER 800X1000X32005-12-01~2007-07-01 |
99611-60A01-000 |
US $62.40 |
||
