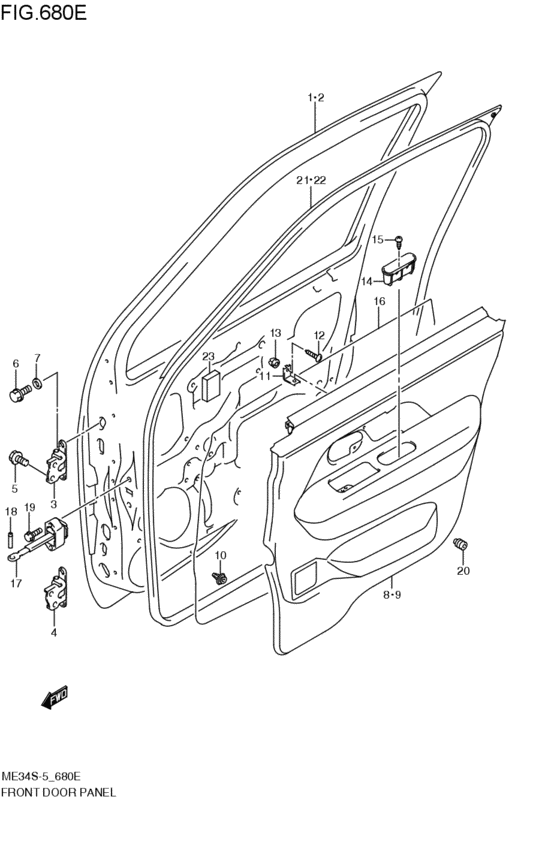

front door panel (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-78F02-000 PANEL ASSY,FRONT DOOR,R2005-12-01~2007-07-01 |
68001-78F02-000 |
US $587.84 |
||
|
2
|
2
68002-78F01-000 PANEL ASSY,FRONT DOOR,L2005-12-01~2007-07-01 |
68002-78F01-000 |
US $587.84 |
||
|
3
|
3
69310-60G01-000 HINGE,FR DR NO.1アッパ ライト; 2005-12-01~2007-07-01 |
69310-60G01-000 |
US $41.60 |
||
|
3
|
3
69320-60G01-000 HINGE,FR DR NO.2アッパ レフト; 2005-12-01~2007-07-01 |
69320-60G01-000 |
US $41.60 |
||
|
4
|
4
69310-60G01-000 HINGE,FR DR NO.1ロア レフト; 2005-12-01~2007-07-01 |
69310-60G01-000 |
US $41.60 |
||
|
4
|
4
69320-60G01-000 HINGE,FR DR NO.2ロア ライト; 2005-12-01~2007-07-01 |
69320-60G01-000 |
US $41.60 |
||
|
5
|
5
01551-0820A-000 Bolt2005-12-01~2007-07-01 |
01551-0820A-000 |
from US $0.96 |
||
|
6
|
6
09103-08389-000 BOLT(8X24)2005-12-01~2007-07-01 |
09103-08389-000 |
US $17.30 |
||
|
7
|
7
69480-65D00-000
Washer
2005-12-01~2007-07-01 |
69480-65D00-000 |
— | ||
|
8
|
8
83710-78H10-DLC
トリム,フロントドア,ライト
ブラウン/ベージュ; 2005-12-01~2007-07-01 |
83710-78H10-DLC |
— | ||
|
9
|
9
83720-78H10-DLC
トリム,フロントドア,レフト
ブラウン/ベージュ; 2005-12-01~2007-07-01 |
83720-78H10-DLC |
— | ||
|
10
|
10
09409-08320-000 CLIP2005-12-01~2007-07-01 |
09409-08320-000 |
from US $1.15 |
||
|
11
|
11
83751-84F0V-000 BRACKET FR DR TRIM2005-12-01~2007-07-01 |
83751-84F0V-000 |
US $4.38 |
||
|
12
|
12
03241-0612A-000 SCREW2005-12-01~2007-07-01 |
03241-0612A-000 |
US $0.80 |
||
|
13
|
13
09148-06007-000 NUT2005-12-01~2007-07-01 |
09148-06007-000 |
US $0.91 |
||
|
14
|
14
83799-75H00-R8R HANDLE,SIDE DOOR TRIMブラウン; 2005-12-01~2007-07-01 |
83799-75H00-R8R |
US $9.64 |
||
|
15
|
15
09132-05058-000 SCREW(5X12)2005-12-01~2007-07-01 |
09132-05058-000 |
US $12.50 |
||
|
16
|
16
83911-60X51-000
Cover, door sealing (600x1200)
2005-12-01~2007-07-01 |
83911-60X51-000 |
— | ||
| replacement | |||||
|
16
|
16
83911-60X52-000 COVER,DR SEALING2005-12-01~2007-07-01 |
83911-60X52-000 |
US $6.06 |
||
|
17
|
17
81810-65D00-000 STOP,FRONT DOOR OPEN2005-12-01~2007-07-01 |
81810-65D00-000 |
US $37.24 |
||
|
18
|
18
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY2005-12-01~2007-07-01 |
81831-70B00-000 |
US $1.60 |
||
|
19
|
19
09122-86004-000 SCREW(6X20)2005-12-01~2007-07-01 |
09122-86004-000 |
US $11.80 |
||
|
20
|
20
82711-56B00-000 STOPPER,FR DOORStopper, fr dr lower 2005-12-01~2007-07-01 |
82711-56B00-000 |
from US $2.88 |
||
|
21
|
21
84641-76F01-000 WEATHERSTRIP,FR DR OPNG,R2005-12-01~2007-07-01 |
84641-76F01-000 |
US $87.22 |
||
|
22
|
22
84651-76F01-000 WEATHERSTRIP,FR DR OPNG,L2005-12-01~2007-07-01 |
84651-76F01-000 |
US $87.22 |
||
|
23
|
23
77591-75000-000 PAD2005-12-01~2007-07-01 |
77591-75000-000 |
US $2.28 |
||
