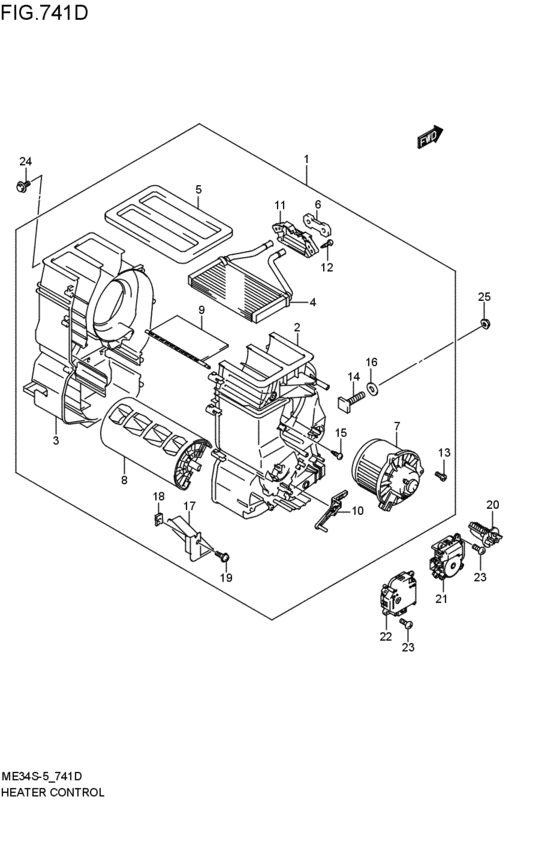

heater control (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-78F84-000
ヒータユニット
2005-12-01~2007-07-01 |
74100-78F84-000 |
— | ||
|
2
|
2
74111-78F05-000 CASE,HTR,L2005-12-01~2007-07-01 |
74111-78F05-000 |
US $71.39 |
||
|
3
|
3
74112-78F03-000
CASE,HTR,R
2005-12-01~2007-07-01 |
74112-78F03-000 |
— | ||
|
4
|
4
74120-80G00-000 CORE,HEATER2005-12-01~2007-07-01 |
74120-80G00-000 |
from US $404.80 |
||
|
5
|
5
74116-78F10-000 PACKING2005-12-01~2007-07-01 |
74116-78F10-000 |
US $12.48 |
||
|
6
|
6
74118-80G00-000 PACKING2005-12-01~2007-07-01 |
74118-80G00-000 |
US $6.96 |
||
|
7
|
7
74150-78F00-000 MOTOR ASSY,FAN2005-12-01~2007-07-01 |
74150-78F00-000 |
US $345.92 |
||
|
8
|
8
74171-78F00-000 DOOR ASSY,MODE2005-12-01~2007-07-01 |
74171-78F00-000 |
US $38.27 |
||
|
9
|
9
74172-78F00-000 DOOR ASSY,AIR MIXTURE2005-12-01~2007-07-01 |
74172-78F00-000 |
US $23.55 |
||
|
10
|
10
74181-78F00-000 LEVER,AIR MXT2005-12-01~2007-07-01 |
74181-78F00-000 |
US $9.90 |
||
|
11
|
11
74191-78F00-000 BRACKET2005-12-01~2007-07-01 |
74191-78F00-000 |
US $8.24 |
||
|
12
|
12
03511-0416A-000 SCREW2005-12-01~2007-07-01 |
03511-0416A-000 |
from US $2.45 |
||
|
13
|
13
74135-82000-000 SCREW,MOTOR2005-12-01~2007-07-01 |
74135-82000-000 |
US $1.73 |
||
|
14
|
14
74115-65D00-000 Bolt2005-12-01~2007-07-01 |
74115-65D00-000 |
US $3.61 |
||
|
15
|
15
03511-0416A-000 SCREW2005-12-01~2007-07-01 |
03511-0416A-000 |
from US $2.45 |
||
|
16
|
16
74119-78F00-000 WASHER,RBR2005-12-01~2007-07-01 |
74119-78F00-000 |
US $3.53 |
||
|
17
|
17
74910-78F00-000
ADAPTER,HTR,R
2005-12-01~2007-07-01 |
74910-78F00-000 |
— | ||
|
18
|
18
09148-06021-000 NUTNut, air cleaner 2005-12-01~2007-07-01 |
09148-06021-000 |
from US $1.34 |
||
|
19
|
19
02112-7616A-000 SCREW2005-12-01~2007-07-01 |
02112-7616A-000 |
from US $0.96 |
||
|
20
|
20
95626-78F80-000 DRIVER,BLOWER FANDENSO; 2005-12-01~2007-07-01 |
95626-78F80-000 |
from US $96.05 |
||
|
21
|
21
95651-78F81-000 ACTUATOR,TEMPDENSO; 2005-12-01~2007-07-01 |
95651-78F81-000 |
US $92.74 |
||
|
22
|
22
95653-78F80-000 ACTUATOR,MODEDENSO; 2005-12-01~2007-07-01 |
95653-78F80-000 |
from US $93.10 |
||
|
23
|
23
03541-0416A-000 SCREWScrew, trunk box lamp 2005-12-01~2007-07-01 |
03541-0416A-000 |
from US $0.76 |
||
|
24
|
24
09113-06006-000 BOLT(6X20)2005-12-01~2007-07-01 |
09113-06006-000 |
US $12.50 |
||
| replacement | |||||
|
24
|
24
09113-06014-000 BOLT(6X20)2005-12-01~2007-07-01 |
09113-06014-000 |
US $14.40 |
||
|
25
|
25
09159-06081-000 NUT2005-12-01~2007-07-01 |
09159-06081-000 |
from US $1.31 |
||
