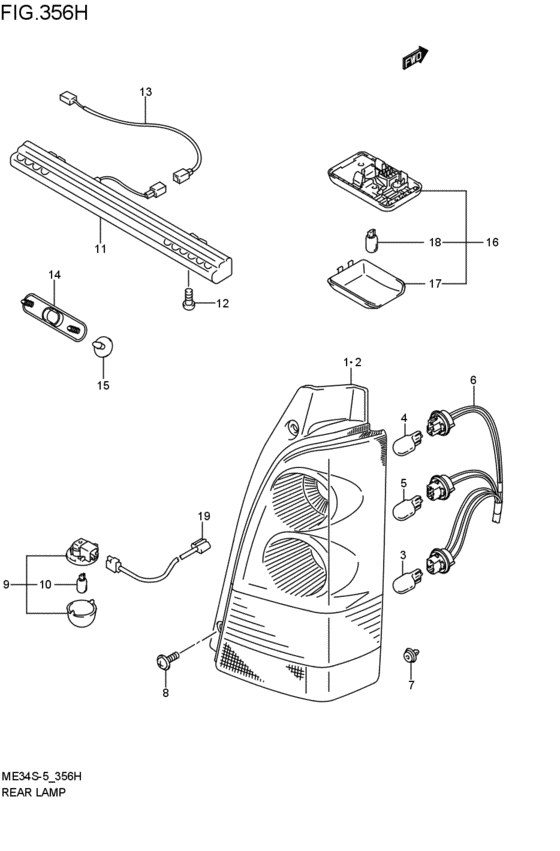

rear lamp (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-82H02-000 LAMP UNIT,RR COMB,R2005-12-01~2007-07-01 |
35650-82H02-000 |
US $185.84 |
||
|
2
|
2
35670-82H02-000 LAMP UNIT,RR COMB,L2005-12-01~2007-07-01 |
35670-82H02-000 |
US $185.84 |
||
|
3
|
3
09471-12192-000 BULB(12V21/5W)2005-12-01~2007-07-01 |
09471-12192-000 |
from US $3.19 |
||
|
4
|
4
09471-12202-000 BULB(12V21W/WY21W,AMBER)アンバー; 2005-12-01~2007-07-01 |
09471-12202-000 |
from US $5.76 |
||
|
5
|
5
09471-12191-000 BULB(12V21W)2005-12-01~2007-07-01 |
09471-12191-000 |
from US $4.23 |
||
|
6
|
6
35658-82H00-000 SOCKET&CORD,RR COMB2005-12-01~2007-07-01 |
35658-82H00-000 |
US $43.06 |
||
|
7
|
7
71812-78F00-000 CLIP2005-12-01~2007-07-01 |
71812-78F00-000 |
from US $1.67 |
||
|
8
|
8
02162-0616A-000 SCREW2005-12-01~2007-07-01 |
02162-0616A-000 |
from US $1.24 |
||
| replacement | |||||
|
8
|
8
02162-0616B-000 SCREWBolt, adjust 2005-12-01~2007-07-01 |
02162-0616B-000 |
from US $0.96 |
||
|
9
|
9
35910-75F12-000 Lamp assy,license2005-12-01~2007-07-01 |
35910-75F12-000 |
from US $14.33 |
||
|
10
|
10
09471-12216-000 BULB(12V5W)Bulb (12v5w) 2005-12-01~2007-07-01 |
09471-12216-000 |
from US $3.02 |
||
|
11
|
11
35810-75F40-000 LAMP ASSY,HIGH MT STOP2005-12-01~2007-07-01 |
35810-75F40-000 |
US $168.91 |
||
|
12
|
12
02112-7516A-000 SCREWScrew, gear shift 2005-12-01~2007-07-01 |
02112-7516A-000 |
from US $0.96 |
||
|
13
|
13
36842-75F00-000 WIRE,HIGH MOUNT STOP LAMP2005-12-01~2007-07-01 |
36842-75F00-000 |
from US $5.09 |
||
|
14
|
14
35819-72J00-000 COVER,HIGH MT STOP LAMP HOLE2005-12-01~2007-07-01 |
35819-72J00-000 |
US $2.58 |
||
|
15
|
15
09250-05011-5PK CAP(OD:12)Plug ブラック; 2005-12-01~2007-07-01 |
09250-05011-5PK |
from US $2.21 |
||
|
16
|
16
36210-74F02-6GS LAMP ASSY,RR ROOMグレ-; 2005-12-01~2007-07-01 |
36210-74F02-6GS |
from US $25.25 |
||
|
17
|
17
36212-74F00-000 LENS,ROOM LAMP2005-12-01~2007-07-01 |
36212-74F00-000 |
from US $4.05 |
||
|
18
|
18
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 2005-12-01~2007-07-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
18
|
18
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 2005-12-01~2007-07-01 |
09471-12216-000 |
from US $3.02 |
||
|
19
|
19
36843-78F00-000 WIRE,LICENSE LAMP2005-12-01~2007-07-01 |
36843-78F00-000 |
US $14.87 |
||
