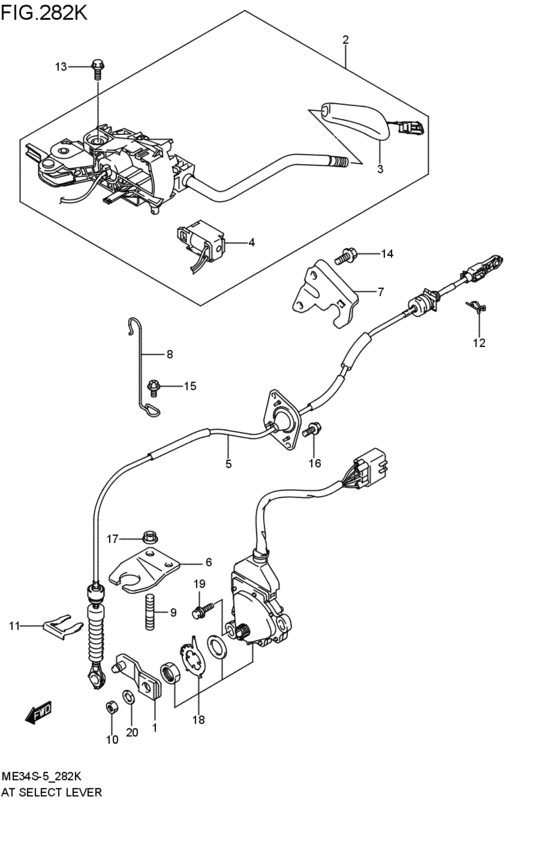

select lever (2005-12-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25971-79CJ0-000 LEVER,MANUAL SLT2005-12-01~2007-07-01 |
25971-79CJ0-000 |
US $12 |
||
|
2
|
2
28100-82H32-000
SELECTOR ASSY,COLUMN
2005-12-01~2007-07-01 |
28100-82H32-000 |
— | ||
| replacement | |||||
|
2
|
2
28100-82H33-000 SELECTOR ASSY,COLUMN2005-12-01~2007-07-01 |
28100-82H33-000 |
US $268.64 |
||
|
3
|
3
28160-76FK0-000
KNOB ASSY,SEL LEVER
2005-12-01~2007-07-01 |
28160-76FK0-000 |
— | ||
| replacement | |||||
|
3
|
3
28160-76FK1-000 KNOB ASSY,SEL LEVER2005-12-01~2007-07-01 |
28160-76FK1-000 |
US $23.18 |
||
|
4
|
4
28610-82H10-000
SOLENOID,SHIFT LOCK
2005-12-01~2007-07-01 |
28610-82H10-000 |
— | ||
|
5
|
5
28210-82H30-000 CABLE ASSY,SELECT2005-12-01~2007-07-01 |
28210-82H30-000 |
US $127.33 |
||
|
6
|
6
28221-79C10-000
BRACKET,SELECT CABLE
2005-12-01~2007-07-01 |
28221-79C10-000 |
— | ||
|
7
|
7
28222-78FJ0-000 BRACKET,SEL CABLE COLUMN2005-12-01~2007-07-01 |
28222-78FJ0-000 |
US $8.72 |
||
|
8
|
8
28225-79C11-000 CLAMP,SELECT CABLE2005-12-01~2007-07-01 |
28225-79C11-000 |
US $2.72 |
||
|
9
|
9
09108-08257-000 BOLT,STUD2005-12-01~2007-07-01 |
09108-08257-000 |
US $18.40 |
||
|
10
|
10
08310-0008A-000 NUTNut, bead stopper 2005-12-01~2007-07-01 |
08310-0008A-000 |
from US $0.76 |
||
|
11
|
11
09383-19001-000 E RINGClip 2005-12-01~2007-07-01 |
09383-19001-000 |
from US $2.72 |
||
|
12
|
12
09385-08007-000 PIN,SNAPClip 2005-12-01~2007-07-01 |
09385-08007-000 |
from US $1.09 |
||
|
13
|
13
01550-0820A-000 BoltBolt, funnel bracket 2005-12-01~2007-07-01 |
01550-0820A-000 |
from US $1.12 |
||
|
14
|
14
01550-0816A-000 BoltBolt, rear 2005-12-01~2007-07-01 |
01550-0816A-000 |
from US $0.91 |
||
|
15
|
15
02162-0612A-000 SCREWBolt, bracket 2005-12-01~2007-07-01 |
02162-0612A-000 |
from US $0.80 |
||
|
16
|
16
02162-0620C-000 SCREW2005-12-01~2007-07-01 |
02162-0620C-000 |
from US $0.96 |
||
|
17
|
17
08316-1008A-000 NUTNut, idle gear shaft 2005-12-01~2007-07-01 |
08316-1008A-000 |
from US $0.76 |
||
|
18
|
18
37720-79C10-000 SWITCH ASSY,SHIFT2005-12-01~2007-07-01 |
37720-79C10-000 |
US $203.20 |
||
|
19
|
19
24896-79C10-000 BOLT,SHIFT SWITCH2005-12-01~2007-07-01 |
24896-79C10-000 |
US $1.73 |
||
|
20
|
20
25997-60G10-000 WASHER,MANUAL SELECT LEVER2005-12-01~2007-07-01 |
25997-60G10-000 |
US $3.20 |
||
