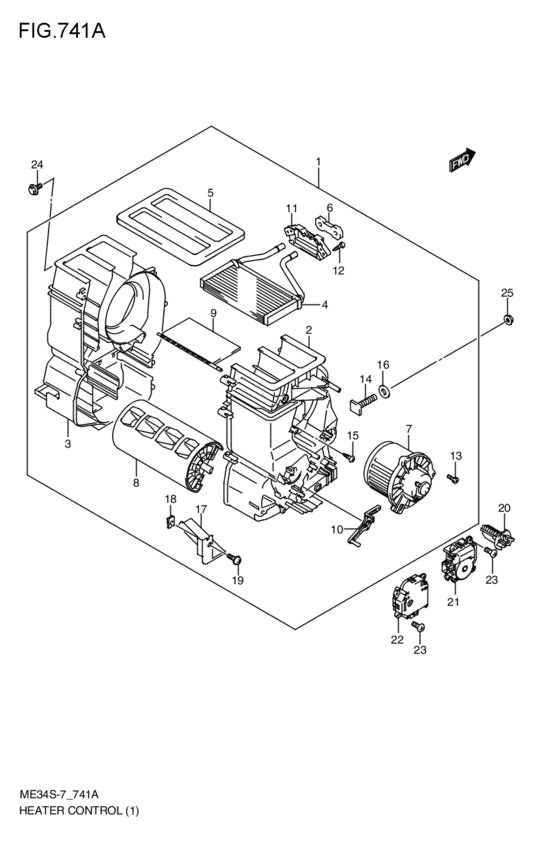

heater control (XMA; 2009-06-01~) Diagram Suzuki OTHER MODELS
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XMA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-78F84-000
ヒータユニット
XMA; 2009-06-01~ |
74100-78F84-000 |
— | ||
|
2
|
2
74111-78F05-000 CASE,HTR,LXMA; 2009-06-01~ |
74111-78F05-000 |
US $71.39 |
||
|
3
|
3
74112-78F03-000
CASE,HTR,R
XMA; 2009-06-01~ |
74112-78F03-000 |
— | ||
|
4
|
4
74120-80G00-000 CORE,HEATERXMA; 2009-06-01~ |
74120-80G00-000 |
from US $404.80 |
||
|
5
|
5
74116-78F10-000 PACKINGXMA; 2009-06-01~ |
74116-78F10-000 |
US $12.48 |
||
|
6
|
6
74118-80G00-000 PACKINGXMA; 2009-06-01~ |
74118-80G00-000 |
US $6.96 |
||
|
7
|
7
74150-78F00-000 MOTOR ASSY,FANXMA; 2009-06-01~ |
74150-78F00-000 |
US $345.92 |
||
|
8
|
8
74171-78F00-000 DOOR ASSY,MODEXMA; 2009-06-01~ |
74171-78F00-000 |
US $38.27 |
||
|
9
|
9
74172-78F00-000 DOOR ASSY,AIR MIXTUREXMA; 2009-06-01~ |
74172-78F00-000 |
US $23.55 |
||
|
10
|
10
74181-78F00-000 LEVER,AIR MXTXMA; 2009-06-01~ |
74181-78F00-000 |
US $9.90 |
||
|
11
|
11
74191-78F00-000 BRACKETXMA; 2009-06-01~ |
74191-78F00-000 |
US $8.24 |
||
|
12
|
12
03511-0416A-000 SCREWXMA; 2009-06-01~ |
03511-0416A-000 |
from US $2.45 |
||
|
13
|
13
74135-82000-000 SCREW,MOTORXMA; 2009-06-01~ |
74135-82000-000 |
US $1.73 |
||
|
14
|
14
74115-65D00-000 BoltXMA; 2009-06-01~ |
74115-65D00-000 |
US $3.61 |
||
|
15
|
15
03511-0416A-000 SCREWXMA; 2009-06-01~ |
03511-0416A-000 |
from US $2.45 |
||
|
16
|
16
74119-78F00-000 WASHER,RBRXMA; 2009-06-01~ |
74119-78F00-000 |
US $3.53 |
||
|
17
|
17
74910-78F00-000
ADAPTER,HTR,R
XMA; 2009-06-01~ |
74910-78F00-000 |
— | ||
|
18
|
18
09148-06021-000 NUTNut, air cleaner XMA; 2009-06-01~ |
09148-06021-000 |
from US $1.34 |
||
|
19
|
19
02112-7616A-000 SCREWXMA; 2009-06-01~ |
02112-7616A-000 |
from US $0.96 |
||
|
20
|
20
95626-78F80-000 DRIVER,BLOWER FAN(DENSO); XMA; 2009-06-01~ |
95626-78F80-000 |
from US $96.05 |
||
|
21
|
21
95651-78F81-000 ACTUATOR,TEMP(DENSO); XMA; 2009-06-01~ |
95651-78F81-000 |
US $92.74 |
||
|
22
|
22
95653-78F80-000 ACTUATOR,MODE(DENSO); XMA; 2009-06-01~ |
95653-78F80-000 |
from US $93.10 |
||
|
23
|
23
03541-0416A-000 SCREWScrew, trunk box lamp XMA; 2009-06-01~ |
03541-0416A-000 |
from US $0.76 |
||
|
24
|
24
09113-06006-000 BOLT(6X20)XMA; 2009-06-01~ |
09113-06006-000 |
US $12.50 |
||
| replacement | |||||
|
24
|
24
09113-06014-000 BOLT(6X20)XMA; 2009-06-01~ |
09113-06014-000 |
US $14.40 |
||
|
25
|
25
09159-06081-000 NUTXMA; 2009-06-01~ |
09159-06081-000 |
US $12.50 |
||
