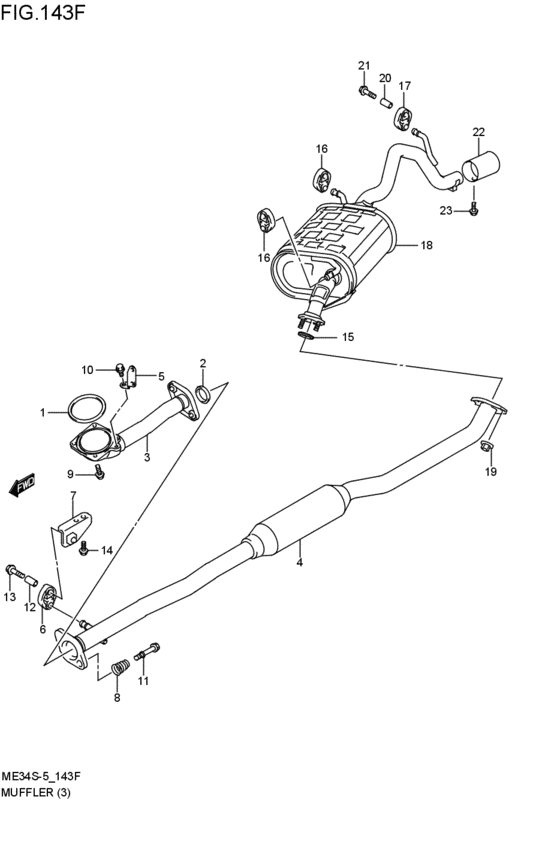

muffler (ME34S-400001カラ; 4WD; 2006-05-01~2007-07-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2006
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14181-70H00-000 GASKET,EXH MANF4WD; 2006-05-01~2007-07-01 |
14181-70H00-000 |
from US $9.95 |
||
|
2
|
2
14183-76A00-000 RING,SEAL EXH PIPE4WD; 2006-05-01~2007-07-01 |
14183-76A00-000 |
from US $12.62 |
||
|
3
|
3
14190-80GC0-000 PIPE,EXH NO.14WD; 2006-05-01~2007-07-01 |
14190-80GC0-000 |
US $207.92 |
||
|
4
|
4
14250-82H00-000 PIPE,EXH NO.24WD; 2006-05-01~2007-07-01 |
14250-82H00-000 |
US $314.64 |
||
|
5
|
5
14271-57K00-000 STIFFENER,EXH MANF4WD; 2006-05-01~2007-07-01 |
14271-57K00-000 |
US $12.14 |
||
|
6
|
6
14281-75F00-000
Mounting
4WD; 2006-05-01~2007-07-01 |
14281-75F00-000 |
— | ||
| replacement | |||||
|
6
|
6
14281-75F01-000 MOUNTING,MUF4WD; 2006-05-01~2007-07-01 |
14281-75F01-000 |
from US $4.88 |
||
|
7
|
7
14281-75F00-000
Mounting
4WD; 2006-05-01~2007-07-01 |
14281-75F00-000 |
— | ||
| replacement | |||||
|
7
|
7
14281-75F01-000 MOUNTING,MUF4WD; 2006-05-01~2007-07-01 |
14281-75F01-000 |
from US $4.88 |
||
|
8
|
8
14492-67D00-000 SPRING,EXH PIPE4WD; 2006-05-01~2007-07-01 |
14492-67D00-000 |
from US $6.21 |
||
|
9
|
9
09103-10324-000 BOLT(10X20)4WD; 2006-05-01~2007-07-01 |
09103-10324-000 |
from US $2.24 |
||
|
10
|
10
09103-10324-000 BOLT(10X20)4WD; 2006-05-01~2007-07-01 |
09103-10324-000 |
from US $2.24 |
||
|
11
|
11
09119-10073-000 BOLT(10X65)4WD; 2006-05-01~2007-07-01 |
09119-10073-000 |
from US $5.18 |
||
|
12
|
12
09180-08057-000
Spacer
4WD; 2006-05-01~2007-07-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
12
|
12
09180-08227-000 SPACER(8.2X12.5X23.5)4WD; 2006-05-01~2007-07-01 |
09180-08227-000 |
from US $1.04 |
||
|
13
|
13
01550-0835A-000 Bolt4WD; 2006-05-01~2007-07-01 |
01550-0835A-000 |
from US $1.06 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket 4WD; 2006-05-01~2007-07-01 |
02162-0612A-000 |
from US $0.79 |
||
|
15
|
15
14182-60B00-000
GASKET,EXH PIPE
4WD; 2006-05-01~2007-07-01 |
14182-60B00-000 |
— | ||
| replacement | |||||
|
15
|
15
14182-60B01-000 Gasket,exh Pipe4WD; 2006-05-01~2007-07-01 |
14182-60B01-000 |
from US $3.34 |
||
|
16
|
16
14281-75F00-000
Mounting
4WD; 2006-05-01~2007-07-01 |
14281-75F00-000 |
— | ||
| replacement | |||||
|
16
|
16
14281-75F01-000 MOUNTING,MUF4WD; 2006-05-01~2007-07-01 |
14281-75F01-000 |
from US $4.88 |
||
|
17
|
17
14281-80G00-000 MOUNTING,MUF4WD; 2006-05-01~2007-07-01 |
14281-80G00-000 |
from US $4.46 |
||
|
18
|
18
14300-82H00-000 MUFFLER4WD; 2006-05-01~2007-07-01 |
14300-82H00-000 |
US $924.80 |
||
|
19
|
19
09159-10049-000 Nut4WD; 2006-05-01~2007-07-01 |
09159-10049-000 |
US $1.28 |
||
| replacement | |||||
|
19
|
19
09159-10102-000 NUT4WD; 2006-05-01~2007-07-01 |
09159-10102-000 |
from US $1.28 |
||
|
20
|
20
09180-08057-000
Spacer
4WD; 2006-05-01~2007-07-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
20
|
20
09180-08227-000 SPACER(8.2X12.5X23.5)4WD; 2006-05-01~2007-07-01 |
09180-08227-000 |
from US $1.04 |
||
|
21
|
21
01551-0835A-000 Bolt4WD; 2006-05-01~2007-07-01 |
01551-0835A-000 |
US $15.50 |
||
|
22
|
22
14630-78F01-000 PIPE,TAIL4WD; 2006-05-01~2007-07-01 |
14630-78F01-000 |
US $53.73 |
||
|
23
|
23
02162-0612A-000 SCREWBolt, bracket 4WD; 2006-05-01~2007-07-01 |
02162-0612A-000 |
from US $0.79 |
||
