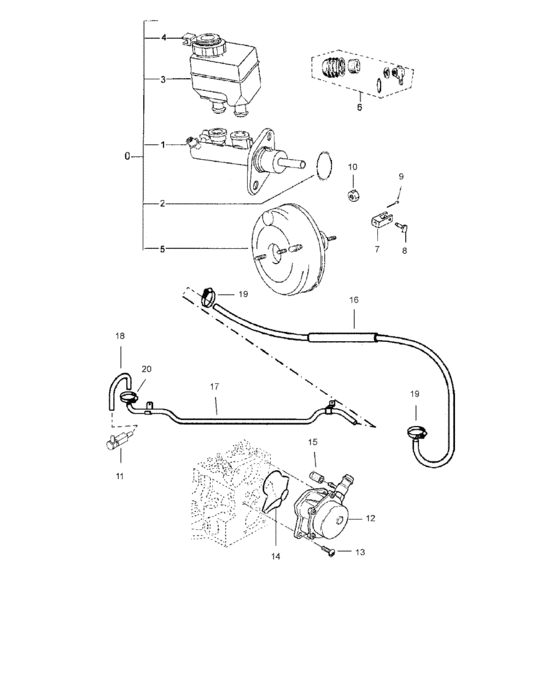

Brake master cylinder (DIESEL EURO III) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0
|
0
51000-A56B0-000
Main cylinder servo assy
|
51000-A56B0-000 |
— | ||
|
1
|
1
00000-A0072-100
Main cylinder
|
00000-A0072-100 |
— | ||
|
2
|
2
00000-A0072-200
Seal gasket
|
00000-A0072-200 |
— | ||
|
3
|
3
00000-A0072-300
Tank repair set
|
00000-A0072-300 |
— | ||
|
4
|
4
00000-A0028-300
Plug
|
00000-A0028-300 |
— | ||
|
5
|
5
00000-A0098-300
Boster assy
|
00000-A0098-300 |
— | ||
|
6
|
6
00000-A0072-000
Repair set
|
00000-A0072-000 |
— | ||
|
7
|
7
00000-A0116-400
Fork
|
00000-A0116-400 |
— | ||
|
8
|
8
51811-85C00-000
Cylinder pin
|
51811-85C00-000 |
— | ||
|
9
|
9
51812-85C00-000
Pin
|
51812-85C00-000 |
— | ||
|
10
|
10
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
10
|
10
09159-08135-000 NUT |
09159-08135-000 |
from US $0.74 |
||
|
11
|
11
51010-84CC0-000
Valve, vacuum pump
|
51010-84CC0-000 |
— | ||
|
12
|
12
11029-84CT0-000
Vacuum pump
|
11029-84CT0-000 |
— | ||
|
13
|
13
00069-84CT0-000
Bolt
|
00069-84CT0-000 |
— | ||
|
14
|
14
33278-84CT0-000
Gasket, vacuum pump
|
33278-84CT0-000 |
— | ||
|
15
|
15
09251-84CT0-000
Plug
|
09251-84CT0-000 |
— | ||
|
16
|
16
51020-86CA0-000
Hose, brake vacuum
|
51020-86CA0-000 |
— | ||
|
17
|
17
51380-84CB0-000
Pipe assy, brake vacuum
|
51380-84CB0-000 |
— | ||
|
18
|
18
51010-84CB0-000
Hose, vacuum pump
|
51010-84CB0-000 |
— | ||
|
19
|
19
08012-86CA0-000
Clamp, hose desg.
|
08012-86CA0-000 |
— | ||
|
20
|
20
51911-85C00-000
Clamp, return hose
|
51911-85C00-000 |
— | ||
