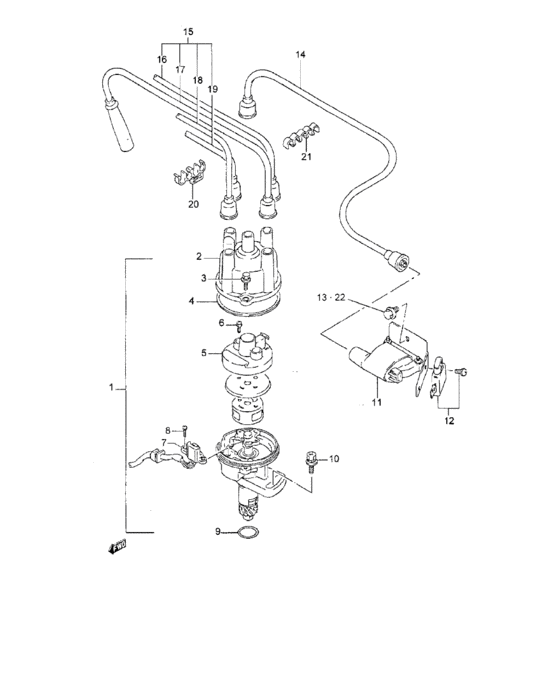

Distributor (W/FUEL INJECTION) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-80C10-000
DISTRIBUTOR ASSY
|
33100-80C10-000 |
— | ||
|
2
|
2
33321-80C10-000
CAP,DISTRIBUTOR
|
33321-80C10-000 |
— | ||
|
3
|
3
01580-05203-000
BOLT
|
01580-05203-000 |
— | ||
| replacement | |||||
|
3
|
3
01580-0520B-000 Bolt |
01580-0520B-000 |
from US $1.19 |
||
|
4
|
4
33324-80C10-000 GASKET,CAP |
33324-80C10-000 |
US $6.23 |
||
|
5
|
5
33310-80C10-000
ROTOR ASSY,DISTRIBUTOR
|
33310-80C10-000 |
— | ||
|
6
|
6
33152-80C10-000 SCREW |
33152-80C10-000 |
US $1.44 |
||
|
7
|
7
33140-80C10-000 SENSOR ASSY,CRANK POSITION |
33140-80C10-000 |
from US $277.70 |
||
|
8
|
8
02112-34163-000
Screw
|
02112-34163-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-3416B-000 SCREW |
02112-3416B-000 |
from US $3.47 |
||
|
9
|
9
33278-85310-000 O-RING |
33278-85310-000 |
from US $2.74 |
||
|
10
|
10
09138-08003-000 SCREW(8X30)8X30 |
09138-08003-000 |
from US $1.49 |
||
|
11
|
11
33410-80C20-000 COIL ASSY,IGNITION |
33410-80C20-000 |
US $175.12 |
||
|
12
|
12
33370-60G10-000 IGNITER ASSY |
33370-60G10-000 |
from US $434.97 |
||
|
13
|
13
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
13
|
13
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
14
|
14
33710-80C00-000 CORD,HT NO.1 |
33710-80C00-000 |
US $11.75 |
||
|
15
|
15
33705-80C00-000 CORD SET,HIGH TENSION |
33705-80C00-000 |
US $75.20 |
||
|
16
|
16
33730-80C00-000
CORD,HT NO.2
|
33730-80C00-000 |
— | ||
|
17
|
17
33740-80C00-000
CORD,HT NO.3
|
33740-80C00-000 |
— | ||
|
18
|
18
33750-80C00-000 CORD,HT NO.4 |
33750-80C00-000 |
US $19.01 |
||
|
19
|
19
33760-80C00-000 CORD,HT NO.5 |
33760-80C00-000 |
US $18.77 |
||
|
20
|
20
33884-86510-000 CLAMP |
33884-86510-000 |
from US $0.97 |
||
|
21
|
21
09408-00116-000 CLIP |
09408-00116-000 |
US $44.90 |
||
|
22
|
22
09115-06001-000 Bolt, lhBolt (6x16) |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
22
|
22
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
from US $0.86 |
||
