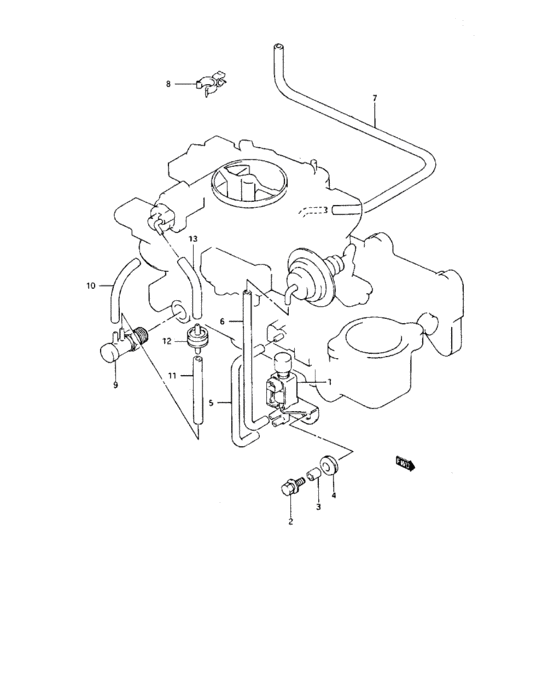

Emission control (GASOLINE:CARBURETOR) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18550-82021-000 VALVE ASSY,3WAY SOLENOID |
18550-82021-000 |
US $47.59 |
||
|
2
|
2
01107-06206-000
Bolt, front
|
01107-06206-000 |
— | ||
| replacement | |||||
|
2
|
2
01500-0620A-000 Bolt |
01500-0620A-000 |
from US $0.76 |
||
|
2
|
2
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
2
|
2
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
3
|
3
09180-06106-000 SPACER(6.8X10X7) |
09180-06106-000 |
from US $0.92 |
||
|
4
|
4
09308-10004-000 GROMMET |
09308-10004-000 |
from US $0.90 |
||
|
5
|
5
09343-03090-000
ホース,#20/3.5X7.5X95
|
09343-03090-000 |
— | ||
| replacements | |||||
|
5
|
5
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
5
|
5
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
6
|
6
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
7
|
7
09358-35754-600
ホース,3.5X7.5X600
|
09358-35754-600 |
— | ||
| replacements | |||||
|
7
|
7
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
7
|
7
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
8
|
8
09408-00060-000 CLAMP |
09408-00060-000 |
from US $0.38 |
||
|
9
|
9
18123-80400-000 VALVE,BIMETAL VACUUM SWITCHING |
18123-80400-000 |
from US $43.56 |
||
|
10
|
10
09343-03088-000
ホース,#16/3.5X7.5X65
|
09343-03088-000 |
— | ||
| replacements | |||||
|
10
|
10
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
10
|
10
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
11
|
11
09343-03090-000
ホース,#20/3.5X7.5X95
|
09343-03090-000 |
— | ||
| replacements | |||||
|
11
|
11
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
11
|
11
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
12
|
12
18115-83010-000 JET,50CC |
18115-83010-000 |
US $7.52 |
||
|
13
|
13
09343-03087-000
ホース,#2/3.5X7.5X50
|
09343-03087-000 |
— | ||
| replacements | |||||
|
13
|
13
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
13
|
13
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
