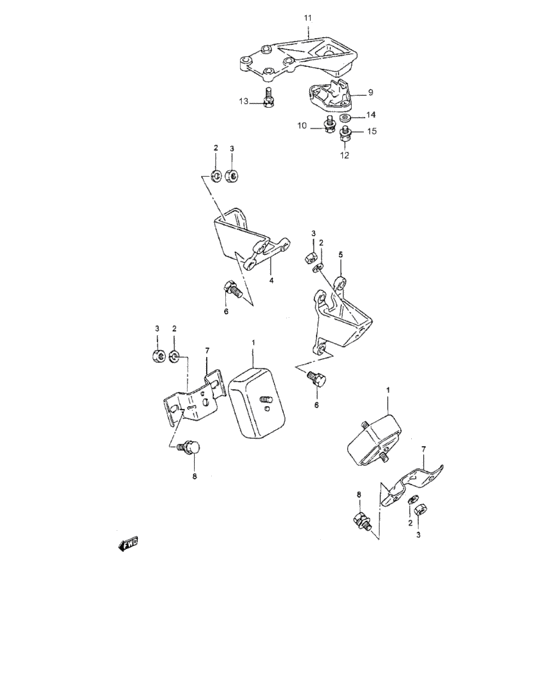

Engine mounting (GASOLINE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-A8001-000
Mounting, engine front
GASOLINE |
11610-A8001-000 |
— | ||
|
2
|
2
08321-A3110-300
Washer plain
GASOLINE |
08321-A3110-300 |
— | ||
|
3
|
3
08310-00103-000
Nut
GASOLINE |
08310-00103-000 |
— | ||
| replacements | |||||
|
3
|
3
08310-0010B-000 NUTGASOLINE |
08310-0010B-000 |
from US $0.83 |
||
|
3
|
3
08310-0010A-000 NUTGASOLINE |
08310-0010A-000 |
from US $0.80 |
||
|
4
|
4
11641-84C00-000
Bracket, front rh
GASOLINE |
11641-84C00-000 |
— | ||
|
5
|
5
11651-83000-000
BRACKET,ENG FR MTG,L
GASOLINE |
11651-83000-000 |
— | ||
|
6
|
6
01500-10303-000
Bolt
GASOLINE |
01500-10303-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-1030A-000 BoltGASOLINE |
01500-1030A-000 |
from US $0.96 |
||
|
7
|
7
11661-83000-000 BRACKET,ENG FR MTG FRAME SIDEGASOLINE |
11661-83000-000 |
US $8.06 |
||
|
8
|
8
09118-10052-000 BOLT(10X30)GASOLINE |
09118-10052-000 |
from US $1.44 |
||
|
9
|
9
11710-A8000-000
Support moteur arr
|
11710-A8000-000 |
— | ||
|
10
|
10
01580-08203-000
Bolt, rear
|
01580-08203-000 |
— | ||
| replacement | |||||
|
10
|
10
01580-0820A-000 Bolt |
01580-0820A-000 |
from US $0.91 |
||
|
11
|
11
11741-80010-000 BRACKET,ENG RR MTG |
11741-80010-000 |
US $47.89 |
||
|
12
|
12
01107-08163-000
Bolt m8x1.25x16
|
01107-08163-000 |
— | ||
| replacements | |||||
|
12
|
12
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.96 |
||
|
12
|
12
01500-08163-000
Bolt
|
01500-08163-000 |
— | ||
|
13
|
13
01570-08303-000
Bolt, rear
|
01570-08303-000 |
— | ||
| replacement | |||||
|
13
|
13
01570-0830A-000 Bolt |
01570-0830A-000 |
US $1.12 |
||
|
14
|
14
08322-11083-000 WasherWasher |
08322-11083-000 |
US $1.07 |
||
| replacements | |||||
|
14
|
14
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.96 |
||
|
14
|
14
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.96 |
||
|
15
|
15
08321-01083-000
Lock washer
|
08321-01083-000 |
— | ||
| replacements | |||||
|
15
|
15
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
15
|
15
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
