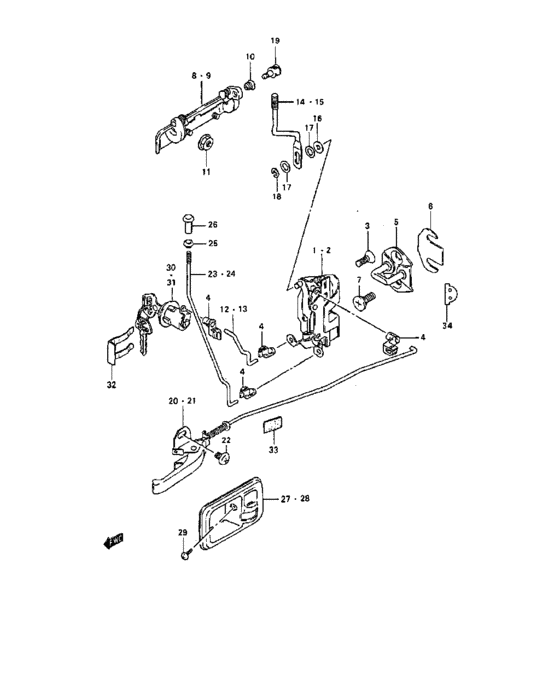

Front door lock (FRONT DOOR LOCK) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-80102-000
ロックアッシ,ライト
|
82201-80102-000 |
— | ||
| replacement | |||||
|
1
|
1
82201-70A01-000 LATCH ASSY,FR DR,R |
82201-70A01-000 |
US $140 |
||
|
2
|
2
82202-80102-000
LOCK ASSY FRONT DOOR
|
82202-80102-000 |
— | ||
| replacement | |||||
|
2
|
2
82202-70A01-000 LATCH ASSY,FR DR,L |
82202-70A01-000 |
from US $41.11 |
||
|
3
|
3
02122-56163-000
SCREW
|
02122-56163-000 |
— | ||
| replacement | |||||
|
3
|
3
02122-5616B-000 SCREW |
02122-5616B-000 |
US $0.80 |
||
|
4
|
4
09209-05016-000 PIN |
09209-05016-000 |
from US $1.15 |
||
|
5
|
5
82610-A8500-100
Striker, lock
|
82610-A8500-100 |
— | ||
|
6
|
6
82681-80100-000 SPACER,STRIKER |
82681-80100-000 |
US $1.60 |
||
|
7
|
7
09137-08006-000
Screw
|
09137-08006-000 |
— | ||
| replacements | |||||
|
7
|
7
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
from US $1.40 |
||
|
7
|
7
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.99 |
||
|
8
|
8
82810-A8010-200
Fermeture porte ar
|
82810-A8010-200 |
— | ||
|
9
|
9
82820-A8010-200
Handle, door lh
|
82820-A8010-200 |
— | ||
|
10
|
10
82891-A8010-000
Arrest
|
82891-A8010-000 |
— | ||
|
11
|
11
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
12
|
12
82291-80100-000 ROD,KEY CYLINDER CONTROL,R |
82291-80100-000 |
US $2.43 |
||
|
13
|
13
82292-80100-000 ROD,KEY CYLINDER CONTROL,L |
82292-80100-000 |
from US $2.34 |
||
|
14
|
14
83211-80100-000 ROD,DOOR LOCK OUTSIDE HNDLE,R |
83211-80100-000 |
from US $2.66 |
||
|
15
|
15
83212-80100-000 ROD,DOOR LOCK OUTSIDE HNDLE,L |
83212-80100-000 |
from US $2.66 |
||
|
16
|
16
09161-04008-000 WASHER(4X12X2)4X12X2 |
09161-04008-000 |
from US $0.36 |
||
|
17
|
17
09161-06008-000 WASHER(6.5X13X1)6.5X13X1 |
09161-06008-000 |
from US $1.10 |
||
|
18
|
18
08332-A1105-800
Annrau
|
08332-A1105-800 |
— | ||
|
19
|
19
77716-79000-000 JOINT,ROD |
77716-79000-000 |
US $3.52 |
||
|
22
|
22
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
22
|
22
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
23
|
23
83241-80100-000 ROD,DOOR SAFETY LOCK,R |
83241-80100-000 |
from US $2.70 |
||
|
24
|
24
83242-80100-000 ROD,DOOR SAFETY LOCK,L |
83242-80100-000 |
from US $1.19 |
||
|
25
|
25
78242-B6100-000
Enjoliveur gris
|
78242-B6100-000 |
— | ||
|
26
|
26
78241-A6000-200
Poignee int gris
|
78241-A6000-200 |
— | ||
|
27
|
27
78471-79001-T01
BEZEL,DR INSIDE HDL,R
GRAY |
78471-79001-T01 |
— | ||
|
28
|
28
78481-79001-T01
BEZEL,DR INSIDE HDL,L
GRAY |
78481-79001-T01 |
— | ||
|
29
|
29
03141-04083-000
スクリュ
|
03141-04083-000 |
— | ||
| replacement | |||||
|
29
|
29
03141-0408A-000 SCREW |
03141-0408A-000 |
from US $0.79 |
||
|
30
|
30
82200-80851-000 CYLINDER,DR LOCK |
82200-80851-000 |
from US $29.59 |
||
|
31
|
31
82200-80861-000 CYLINDER,FR DR LOCK,L |
82200-80861-000 |
from US $31.86 |
||
|
32
|
32
89345-60B00-000 CLIP,FUEL FILLER LID KEY LOCK |
89345-60B00-000 |
from US $1.71 |
||
|
33
|
33
77591-75000-000 PAD |
77591-75000-000 |
from US $0.56 |
||
|
34
|
34
50104-00000-000
Protector,latch
|
50104-00000-000 |
— | ||
