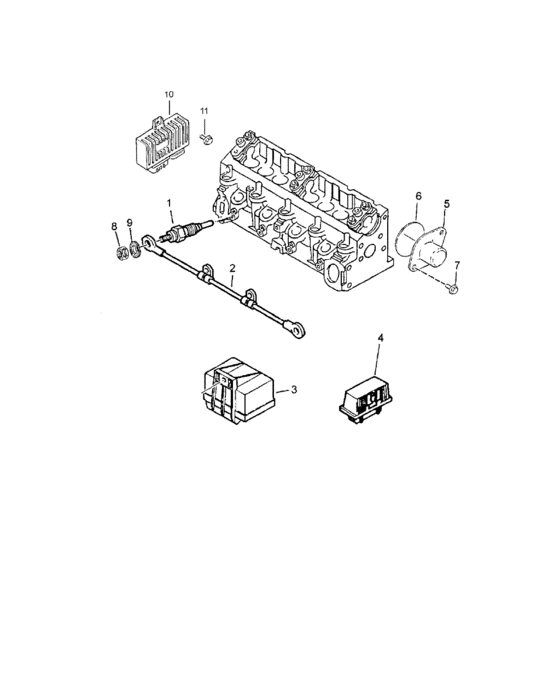

Glow plug (DIESEL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
00000-A0128-900
Glow plug
|
00000-A0128-900 |
— | ||
|
1
|
1
18550-84CT0-000
Glow plug
DIESEL E. III |
18550-84CT0-000 |
— | ||
|
2
|
2
36814-86CA0-000
Cable
|
36814-86CA0-000 |
— | ||
|
3
|
3
38860-86CB0-000
Pre/post heating unit
|
38860-86CB0-000 |
— | ||
|
4
|
4
31850-86CA0-000
Relay assy
|
31850-86CA0-000 |
— | ||
|
5
|
5
11123-86CA0-000
Plate
|
11123-86CA0-000 |
— | ||
|
6
|
6
15167-86CA3-000
O ring
|
15167-86CA3-000 |
— | ||
|
7
|
7
11119-86CB4-000
Screw
|
11119-86CB4-000 |
— | ||
|
8
|
8
M8316-86CA6-000
Nut
|
M8316-86CA6-000 |
— | ||
|
8
|
8
M8316-84CT0-000
Nut
DIESEL E. III: 5X0.80 |
M8316-84CT0-000 |
— | ||
|
9
|
9
08321-86CA4-000
Spring washer
5x10.2-0.5 |
08321-86CA4-000 |
— | ||
|
10
|
10
38860-84CA0-000
Relay assy, pre/post
DIESEL E. III |
38860-84CA0-000 |
— | ||
|
11
|
11
02142-06123-000
Screw
DIESEL E. III |
02142-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
02142-0612B-000 SCREWDIESEL E. III |
02142-0612B-000 |
from US $0.76 |
||
|
11
|
11
02142-0612A-000 SCREWDIESEL E. III |
02142-0612A-000 |
from US $0.80 |
||
