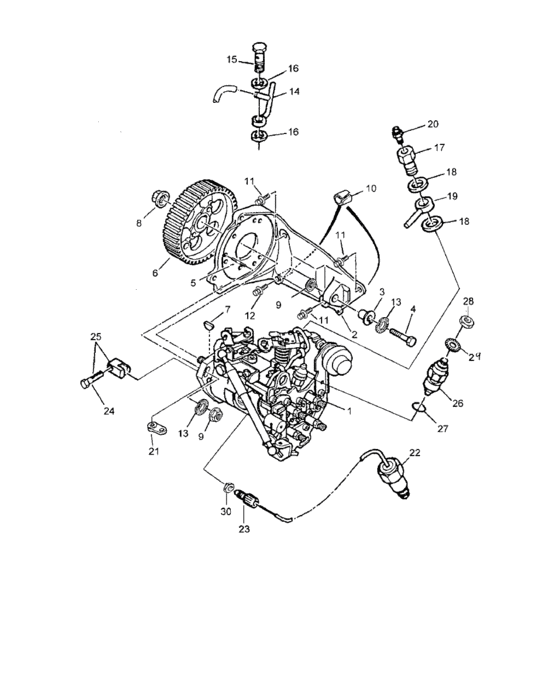

Injection pump (TURBO DIESEL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15200-84CA0-000
Injection pump
|
15200-84CA0-000 |
— | ||
|
2
|
2
15281-86CB0-000
Bracket
|
15281-86CB0-000 |
— | ||
|
3
|
3
15167-86CA5-000
Ring
|
15167-86CA5-000 |
— | ||
|
4
|
4
01570-86CA4-000
Screw
8x125-50 |
01570-86CA4-000 |
— | ||
|
5
|
5
M1421-86CB3-000
Stud
8x125-32-16-24 |
M1421-86CB3-000 |
— | ||
|
6
|
6
12741-86CB1-000
Injection pump gear
|
12741-86CB1-000 |
— | ||
|
7
|
7
12230-86CA2-000
Key
|
12230-86CA2-000 |
— | ||
|
8
|
8
08316-86CA1-000
Nut
12x175 |
08316-86CA1-000 |
— | ||
|
9
|
9
M8316-86CA2-000
Hexagonal nut
8x125 |
M8316-86CA2-000 |
— | ||
|
10
|
10
35337-86CA0-000
Pin
10x10 |
35337-86CA0-000 |
— | ||
|
11
|
11
11119-86CA3-000
Bolt
8x125-30 |
11119-86CA3-000 |
— | ||
|
12
|
12
01570-86CA5-000
Screw
8x125-55 |
01570-86CA5-000 |
— | ||
|
13
|
13
08321-86CA3-000
Spring washer
8x17-0.8 |
08321-86CA3-000 |
— | ||
|
14
|
14
15260-86CB0-000
Outlet tube
|
15260-86CB0-000 |
— | ||
|
15
|
15
15261-86CB0-000
Connection screw
? 12 |
15261-86CB0-000 |
— | ||
|
16
|
16
11228-86CA8-000
Gasket
12.1x18.2 |
11228-86CA8-000 |
— | ||
|
17
|
17
15291-86CB0-000
Connection screw
? 10 |
15291-86CB0-000 |
— | ||
|
18
|
18
15262-86CB0-000
Gasket
10.5x18 |
15262-86CB0-000 |
— | ||
|
19
|
19
15250-86CB0-000
Inlet tube
|
15250-86CB0-000 |
— | ||
|
20
|
20
15282-86CB0-000
Bleed screw
8x125-29 |
15282-86CB0-000 |
— | ||
|
21
|
21
15281-86CB1-000
Journal
|
15281-86CB1-000 |
— | ||
|
22
|
22
15240-86CA1-000
Thermostatic element
22x150 |
15240-86CA1-000 |
— | ||
|
23
|
23
34851-86CA0-000
Adjusting screw
|
34851-86CA0-000 |
— | ||
|
24
|
24
09100-86CA0-000
Screw
4x0.70 |
09100-86CA0-000 |
— | ||
|
25
|
25
13446-86CA1-000
Cable clamp/serre-cable
|
13446-86CA1-000 |
— | ||
|
26
|
26
15220-86CB1-000
Solenoid valve
|
15220-86CB1-000 |
— | ||
|
27
|
27
15167-86CB2-000
O-ring
|
15167-86CB2-000 |
— | ||
|
28
|
28
M8316-86CA6-000
Nut
M.5 |
M8316-86CA6-000 |
— | ||
|
29
|
29
08322-86CA1-000
Washer
? 5 |
08322-86CA1-000 |
— | ||
|
30
|
30
M8316-86CA4-000
Nut
8x125 |
M8316-86CA4-000 |
— |
