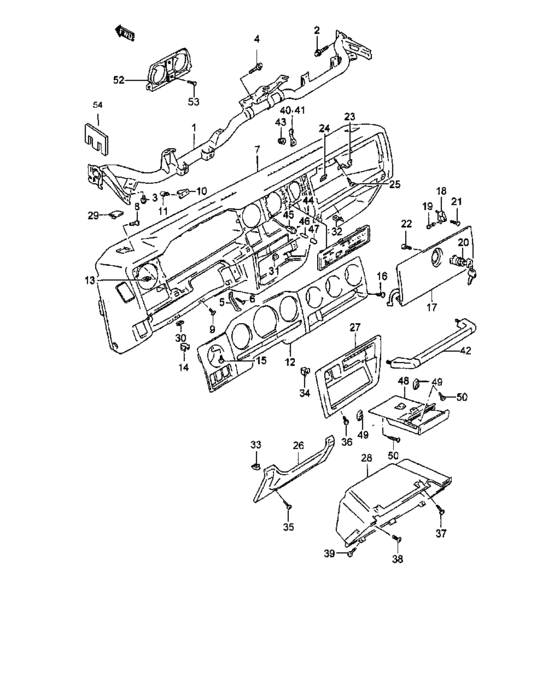

Instrument panel (INSTRUMENT PANEL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72310-82CB0-000
HOLDER,STEERING COLUMN,L
|
72310-82CB0-000 |
— | ||
|
2
|
2
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
2
|
2
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
3
|
3
01810-08163-000
Bolt, pipe no.1
|
01810-08163-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
4
|
4
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
4
|
4
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
5
|
5
09404-06427-000
クランプ,L:80
|
09404-06427-000 |
— | ||
| replacements | |||||
|
5
|
5
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
5
|
5
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
5
|
5
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
5
|
5
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
6
|
6
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
6
|
6
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
7
|
7
73111-82C10-T01
PANEL,INSTR MAIN
GRAY |
73111-82C10-T01 |
— | ||
|
8
|
8
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
8
|
8
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
9
|
9
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
10
|
10
73211-82C00-000
BRACKET,DEFROSTER NOZZLE
|
73211-82C00-000 |
— | ||
|
11
|
11
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
11
|
11
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
12
|
12
73311-82C10-T59
PANEL,METER CLUSTER
GRAY |
73311-82C10-T59 |
— | ||
|
13
|
13
59916-85C00-000
Nut, protector
|
59916-85C00-000 |
— | ||
|
14
|
14
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
15
|
15
03111-05123-000
Screw
|
03111-05123-000 |
— | ||
| replacement | |||||
|
15
|
15
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
16
|
16
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
17
|
17
73410-82C00-H9Y
LID ASSY,GLOVE BOX
GRAY |
73410-82C00-H9Y |
— | ||
|
18
|
18
73422-50G00-000 HINGE,GLOVE BOX |
73422-50G00-000 |
US $3.61 |
||
|
19
|
19
73423-50G00-000 PIN,GLOVE BOX HINGEPin, box |
73423-50G00-000 |
from US $1.53 |
||
|
20
|
20
73900-80882-5PK LOCK SET |
73900-80882-5PK |
US $52.54 |
||
| replacements | |||||
|
20
|
20
73900-80883-5PK LOCK SET,GLOVE BOX LID |
73900-80883-5PK |
from US $52.54 |
||
|
20
|
20
03241-0410A-000 SCREW |
03241-0410A-000 |
from US $0.80 |
||
|
20
|
20
03242-04103-000
Screw
|
03242-04103-000 |
— | ||
|
21
|
21
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
21
|
21
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
22
|
22
02142-04103-000
Screw 4x10
|
02142-04103-000 |
— | ||
| replacement | |||||
|
22
|
22
02142-0410A-000 SCREW |
02142-0410A-000 |
from US $0.76 |
||
|
23
|
23
73951-70A01-000
STRIKER,GLOVE BOX LID
|
73951-70A01-000 |
— | ||
|
24
|
24
59916-85C00-000
Nut, protector
|
59916-85C00-000 |
— | ||
|
25
|
25
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
25
|
25
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
26
|
26
73811-82C10-T01
COVER,STRG COLUMN HOLE
GRAY |
73811-82C10-T01 |
— | ||
|
27
|
27
73821-82C00-T01 GARNISH,I/P CTRGRAY |
73821-82C00-T01 |
US $16.52 |
||
|
28
|
28
73831-82C10-T01
Cover,lower pocket upper
GRAY |
73831-82C10-T01 |
— | ||
|
29
|
29
73841-82C00-T01
COVER,INSTPN MAIN
GRAY |
73841-82C00-T01 |
— | ||
|
30
|
30
59916-85C00-000
Nut, protector
|
59916-85C00-000 |
— | ||
|
31
|
31
59916-85C00-000
Nut, protector
|
59916-85C00-000 |
— | ||
|
32
|
32
59916-85C00-000
Nut, protector
|
59916-85C00-000 |
— | ||
|
33
|
33
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
34
|
34
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
35
|
35
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
35
|
35
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
36
|
36
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
36
|
36
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
37
|
37
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
37
|
37
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
38
|
38
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
38
|
38
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
39
|
39
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
39
|
39
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
40
|
40
73851-82C00-000
REINF,GLOVE BOX LID HNG,R
|
73851-82C00-000 |
— | ||
|
41
|
41
73871-82C00-000
REINF,GLOVE BOX LID HNG,L
|
73871-82C00-000 |
— | ||
|
42
|
42
84410-83000-T01 GRIP,ASST FRGRAY |
84410-83000-T01 |
from US $32.47 |
||
|
43
|
43
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
43
|
43
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
43
|
43
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
44
|
44
73850-83C00-5PK
PANEL,HEATER CONTROL
BLACK |
73850-83C00-5PK |
— | ||
|
45
|
45
73855-70A00-000 SOCKET |
73855-70A00-000 |
US $10.64 |
||
|
46
|
46
73856-82000-000 BULB,HEATER CONTROL12V,1.2W |
73856-82000-000 |
from US $1.49 |
||
|
47
|
47
73857-70A00-000 CAP |
73857-70A00-000 |
US $1.77 |
||
|
48
|
48
89810-70A03-5PK
Ashtray, front
GRAY |
89810-70A03-5PK |
— | ||
|
49
|
49
59916-85C00-000
Nut, protector
|
59916-85C00-000 |
— | ||
|
50
|
50
03241-05103-000
Screw
5X10 |
03241-05103-000 |
— | ||
| replacement | |||||
|
50
|
50
03242-0510B-000 SCREW5X10 |
03242-0510B-000 |
US $0.76 |
||
|
51
|
51
09409-07308-T01 CLIP(GRAY)GRAY |
09409-07308-T01 |
from US $0.97 |
||
|
52
|
52
73861-82C00-000
REINFORCEMENT,I/P CTR
|
73861-82C00-000 |
— | ||
|
53
|
53
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
53
|
53
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
54
|
54
72321-80001-000
Bracket, steering plate
|
72321-80001-000 |
— | ||
| replacement | |||||
|
54
|
54
72321-80002-000
PLATE,STEERING COLUMN HOLDER
|
72321-80002-000 |
— | ||
