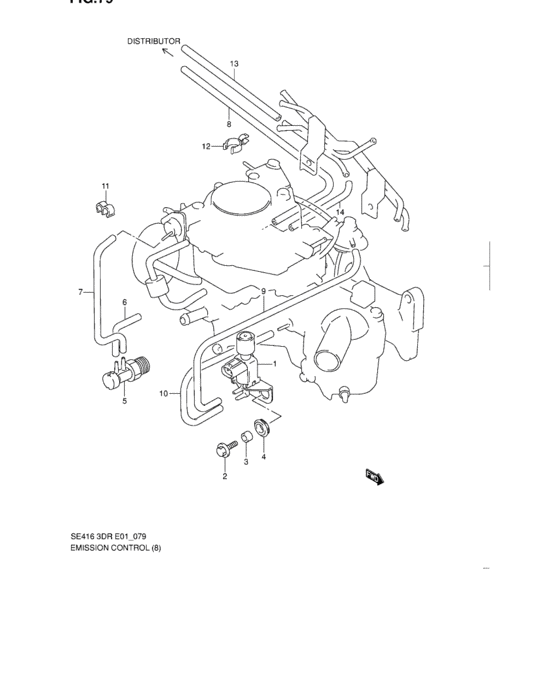

Emission control (AT:W/CARBURETOR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
- grade
- 70 ANNIVERSARY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18117-60A00-000
VALVE,VACUUM SWITCHING
|
18117-60A00-000 |
— | ||
|
2
|
2
09116-06115-000 BOLT(6X20)Bolt (6x20) |
09116-06115-000 |
from US $1.37 |
||
|
3
|
3
09180-06106-000 SPACER(6.8X10X7) |
09180-06106-000 |
from US $0.92 |
||
|
4
|
4
09308-10004-000 GROMMET |
09308-10004-000 |
from US $0.90 |
||
|
5
|
5
18123-80400-000 VALVE,BIMETAL VACUUM SWITCHING |
18123-80400-000 |
from US $43.56 |
||
|
6
|
6
09355-35754-600
ホース,3.5X7.5X600
L:600->95 |
09355-35754-600 |
— | ||
| replacements | |||||
|
6
|
6
09355-35754-601
HOSE(3.5X7.5X601)
L:600->95 |
09355-35754-601 |
— | ||
|
6
|
6
09355-35006-601 Hose(3.5X7.5X601)L:600->95 |
09355-35006-601 |
from US $5.78 |
||
|
7
|
7
09355-35754-600
ホース,3.5X7.5X600
L:600->190 |
09355-35754-600 |
— | ||
| replacements | |||||
|
7
|
7
09355-35754-601
HOSE(3.5X7.5X601)
L:600->190 |
09355-35754-601 |
— | ||
|
7
|
7
09355-35006-601 Hose(3.5X7.5X601)L:600->190 |
09355-35006-601 |
from US $5.78 |
||
|
8
|
8
09355-35754-600
ホース,3.5X7.5X600
L:600->290,~TA01C-101449,~TA01V-104533,~JSAETA01C00131612,~JSAETA01V00122530 |
09355-35754-600 |
— | ||
| replacements | |||||
|
8
|
8
09355-35754-601
HOSE(3.5X7.5X601)
L:600->290,~TA01C-101449,~TA01V-104533,~JSAETA01C00131612,~JSAETA01V00122530 |
09355-35754-601 |
— | ||
|
8
|
8
09355-35006-601 Hose(3.5X7.5X601)L:600->290,~TA01C-101449,~TA01V-104533,~JSAETA01C00131612,~JSAETA01V00122530 |
09355-35006-601 |
from US $5.78 |
||
|
9
|
9
09355-35754-600
ホース,3.5X7.5X600
L:600->220 |
09355-35754-600 |
— | ||
| replacements | |||||
|
9
|
9
09355-35754-601
HOSE(3.5X7.5X601)
L:600->220 |
09355-35754-601 |
— | ||
|
9
|
9
09355-35006-601 Hose(3.5X7.5X601)L:600->220 |
09355-35006-601 |
from US $5.78 |
||
|
10
|
10
09355-35754-600
ホース,3.5X7.5X600
L:600->115 |
09355-35754-600 |
— | ||
| replacements | |||||
|
10
|
10
09355-35754-601
HOSE(3.5X7.5X601)
L:600->115 |
09355-35754-601 |
— | ||
|
10
|
10
09355-35006-601 Hose(3.5X7.5X601)L:600->115 |
09355-35006-601 |
from US $5.78 |
||
|
11
|
11
09408-00035-000 CLIPClamp |
09408-00035-000 |
from US $1.10 |
||
|
12
|
12
09408-00060-000 CLAMP~TA01C-101449,~TA01V-104533,~JSAETA01C00131612,~JSAETA01V00122530 |
09408-00060-000 |
from US $0.38 |
||
|
13
|
13
09355-35754-600
ホース,3.5X7.5X600
L:600->115,TA01C-101450~,TA01V-104534~,JSAETA01C00131613~,JSAETA01V00122531~ |
09355-35754-600 |
— | ||
| replacements | |||||
|
13
|
13
09355-35754-601
HOSE(3.5X7.5X601)
L:600->115,TA01C-101450~,TA01V-104534~,JSAETA01C00131613~,JSAETA01V00122531~ |
09355-35754-601 |
— | ||
|
13
|
13
09355-35006-601 Hose(3.5X7.5X601)L:600->115,TA01C-101450~,TA01V-104534~,JSAETA01C00131613~,JSAETA01V00122531~ |
09355-35006-601 |
from US $5.78 |
||
|
14
|
14
09355-35754-600
ホース,3.5X7.5X600
L:600->60,TA01C-101450~,TA01V-104534~,JSAETA01C00131613~,JSAETA01V00122531~ |
09355-35754-600 |
— | ||
| replacements | |||||
|
14
|
14
09355-35754-601
HOSE(3.5X7.5X601)
L:600->60,TA01C-101450~,TA01V-104534~,JSAETA01C00131613~,JSAETA01V00122531~ |
09355-35754-601 |
— | ||
|
14
|
14
09355-35006-601 Hose(3.5X7.5X601)L:600->60,TA01C-101450~,TA01V-104534~,JSAETA01C00131613~,JSAETA01V00122531~ |
09355-35006-601 |
from US $5.78 |
||
