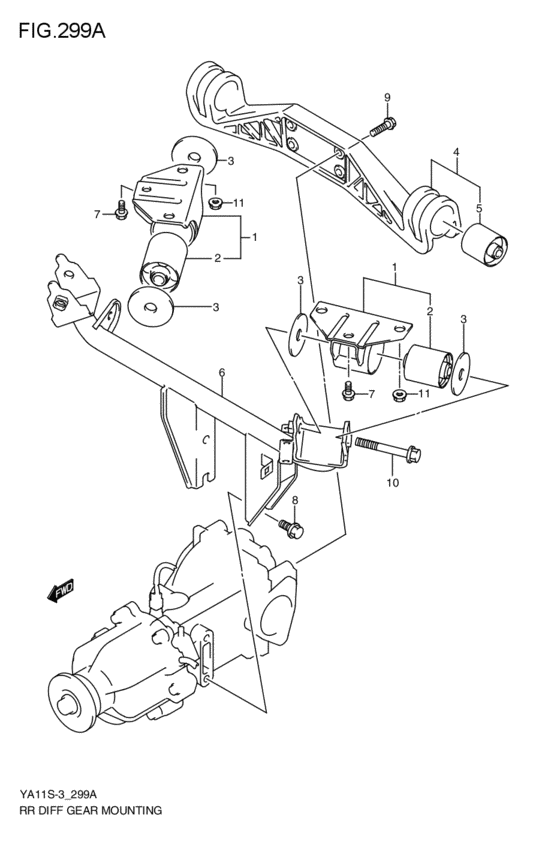

リヤデファレンシャルマウンチング (4WD; 2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29610-63J00-000 MOUNT,DIFF FR4WD; 2009-01-01~ |
29610-63J00-000 |
US $222.40 |
||
|
2
|
2
27550-63J00-000 MOUNT,DIFF FR4WD; 2009-01-01~ |
27550-63J00-000 |
from US $32.90 |
||
|
3
|
3
27550-80J00-000 STOPPER,DIFF SIDE MOUNT FR4WD; 2009-01-01~ |
27550-80J00-000 |
US $15.52 |
||
|
4
|
4
29620-80J30-000 BRACKET,DIFF MOUNT RR4WD; 2009-01-01~ |
29620-80J30-000 |
US $393.76 |
||
|
5
|
5
27550-63J00-000 MOUNT,DIFF FR4WD; 2009-01-01~ |
27550-63J00-000 |
from US $32.90 |
||
|
6
|
6
29651-80J10-000
ARM,DIFF MOUNT FR
4WD; 2009-01-01~ |
29651-80J10-000 |
— | ||
|
7
|
7
01551-1025A-000 Bolt4WD; 2009-01-01~ |
01551-1025A-000 |
US $1.12 |
||
|
8
|
8
01550-1225A-000 Bolt4WD; 2009-01-01~ |
01550-1225A-000 |
from US $1.44 |
||
|
9
|
9
01550-1240A-000 Bolt4WD; 2009-01-01~ |
01550-1240A-000 |
US $1.60 |
||
|
10
|
10
01550-1275A-000 Bolt4WD; 2009-01-01~ |
01550-1275A-000 |
from US $2.08 |
||
|
11
|
11
08316-1010A-000 NUTNut, kick starter 4WD; 2009-01-01~ |
08316-1010A-000 |
from US $0.76 |
