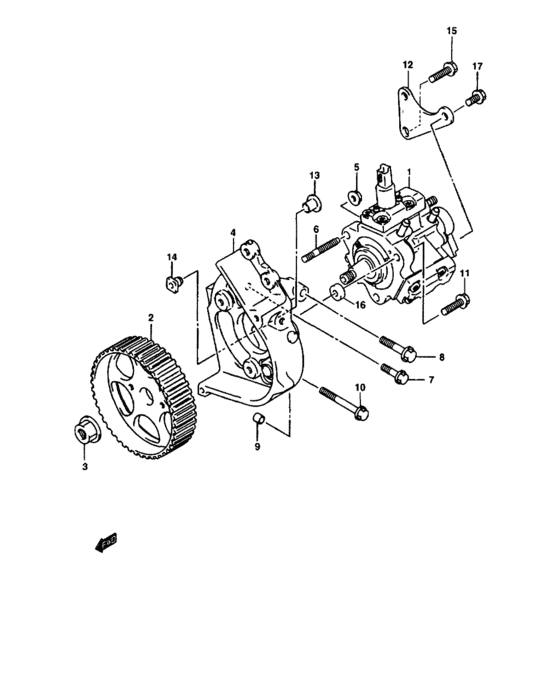

Injection pump (INJECTION PUMP) Diagram Suzuki VITARA
- Year
- -
- Sales region
- General
- grade
- JX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15200-86CT2-000
Pump, injection
TYPE 1 |
15200-86CT2-000 |
— | ||
|
1
|
1
15200-86CT3-000
Pump, injection
TYPE 2 |
15200-86CT3-000 |
— | ||
|
2
|
2
12811-86CT0-000
Gear, pump
|
12811-86CT0-000 |
— | ||
|
3
|
3
08316-86CT0-000
Nut
|
08316-86CT0-000 |
— | ||
|
4
|
4
15281-86CT1-000
Bracket, injection pump
TYPE 1 |
15281-86CT1-000 |
— | ||
|
4
|
4
15281-86CT2-000
Bracket, injection pump
TYPE 2 |
15281-86CT2-000 |
— | ||
|
5
|
5
11164-86CT0-000
Nut
|
11164-86CT0-000 |
— | ||
|
6
|
6
15896-86CT0-000
Stud bolt
|
15896-86CT0-000 |
— | ||
|
7
|
7
11119-86CA3-000
Bolt
M8X125-30 |
11119-86CA3-000 |
— | ||
|
8
|
8
12828-86CT0-000
Bolt
M8X125-45 |
12828-86CT0-000 |
— | ||
|
9
|
9
36337-86CT0-000
Pin
|
36337-86CT0-000 |
— | ||
|
10
|
10
17697-86CT2-000
Bolt
TYPE 1, M8X125-105 |
17697-86CT2-000 |
— | ||
|
10
|
10
17697-86CT0-000
Bolt
TYPE 2, M8X125-70 |
17697-86CT0-000 |
— | ||
|
11
|
11
01570-86CA1-000
Bolt
TYPE 1, M8X125-35 |
01570-86CA1-000 |
— | ||
|
11
|
11
49178-86CT0-000
Bolt
TYPE 2, M8X125-35 |
49178-86CT0-000 |
— | ||
|
12
|
12
12814-86CT0-000
Rear bracket
TYPE 2 |
12814-86CT0-000 |
— | ||
|
13
|
13
15860-86CT0-000
Bush
TYPE 2 |
15860-86CT0-000 |
— | ||
|
14
|
14
11166-86CT0-000
Nut
TYPE 2 |
11166-86CT0-000 |
— | ||
|
15
|
15
49178-86CT0-000
Bolt
TYPE 2, M8X125-35 |
49178-86CT0-000 |
— | ||
|
16
|
16
12827-86CT0-000
Spacer
TYPE 2 |
12827-86CT0-000 |
— | ||
|
17
|
17
12826-86CT1-000
Bolt
TYPE 2, M8X125-20 |
12826-86CT1-000 |
— |
