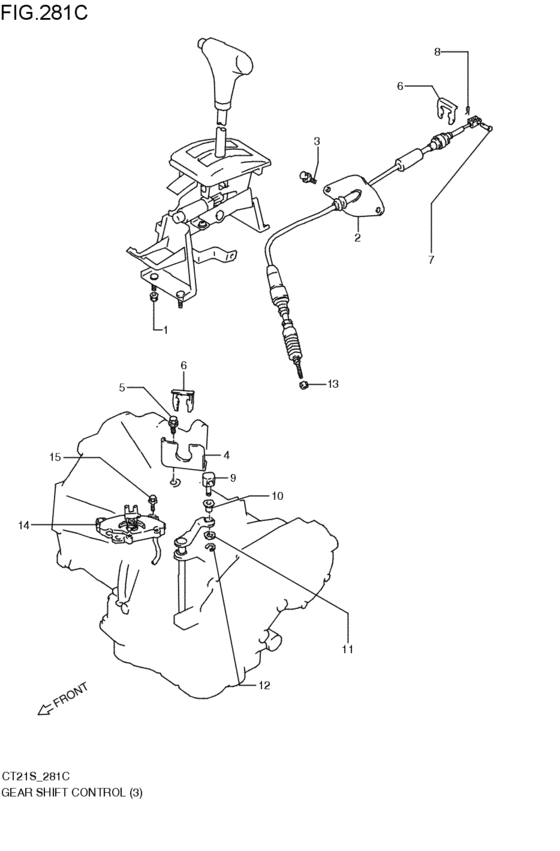

gearlever control (JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1996 - 1997
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 2WD
- transmission
- 3AT
- Number of doors
- 5DR
- grade
- FG
- type
- TYPE3
- air bag
- AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
08316-10083-000
Nut
JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
1
|
1
08316-1008B-000 NUTJATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
08316-1008B-000 |
from US $0.76 |
||
|
2
|
2
28210-61D01-000 CABLE ASSY,SELECTJATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
28210-61D01-000 |
US $105.98 |
||
|
3
|
3
01550-06163-000
Bolt
JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
01550-06163-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0616B-000 BoltJATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
01550-0616B-000 |
from US $0.76 |
||
|
3
|
3
01550-0616A-000 BoltJATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
4
|
4
28221-61D00-000
ブラケット,セレクトケーブル
JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
28221-61D00-000 |
— | ||
|
5
|
5
01550-08163-000
Bolt, holder
JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~1995-09-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0816B-000 BoltJATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~1995-09-01 |
01550-0816B-000 |
from US $0.91 |
||
|
5
|
5
01550-0816A-000 BoltBolt, rear JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~1995-09-01 |
01550-0816A-000 |
from US $0.91 |
||
|
5
|
5
28223-61D00-000 BoltBolt, selector cable bracket JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1995-10-01~ |
28223-61D00-000 |
US $3.97 |
||
|
6
|
6
09383-19001-000 E RINGClip JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
09383-19001-000 |
from US $2.34 |
||
|
7
|
7
09200-06046-000 PINJATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
09200-06046-000 |
US $23.90 |
||
|
8
|
8
09385-06004-000
スナップピン
JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
09385-06004-000 |
— | ||
| replacement | |||||
|
8
|
8
09385-06001-000 CLIPJATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
09385-06001-000 |
from US $4.69 |
||
|
9
|
9
28291-78233-000 JOINT,CABLEJATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
28291-78233-000 |
from US $0.43 |
||
|
10
|
10
09305-08012-000 BUSHJATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
09305-08012-000 |
from US $1.15 |
||
|
11
|
11
08322-01083-000
WASHER
JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
08322-01083-000 |
— | ||
| replacements | |||||
|
11
|
11
08322-0108B-000 WASHERJATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
08322-0108B-000 |
from US $0.96 |
||
|
11
|
11
08322-0108A-000 WASHERJATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
08322-0108A-000 |
from US $0.96 |
||
|
12
|
12
08332-11063-000
E ring
JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
08332-11063-000 |
— | ||
| replacements | |||||
|
12
|
12
08332-1106B-000 E RINGCirclip JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
08332-1106B-000 |
from US $0.96 |
||
|
12
|
12
08332-1106A-000 E RINGE ring, pinion JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
08332-1106A-000 |
from US $0.27 |
||
|
13
|
13
08310-00063-000
Nut
JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
08310-00063-000 |
— | ||
| replacements | |||||
|
13
|
13
08310-0006B-000 NUTNut gear shift link rod JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
08310-0006B-000 |
from US $0.76 |
||
|
13
|
13
08310-0006A-000 NUTJATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
08310-0006A-000 |
from US $0.76 |
||
|
14
|
14
37720-71B11-000
スイッチアッシ,シフト
JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
37720-71B11-000 |
— | ||
| replacement | |||||
|
14
|
14
37720-71B20-000 SWITCH ASSY,SHIFTJATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
37720-71B20-000 |
US $137.63 |
||
|
15
|
15
01550-05123-000
Screw
JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
01550-05123-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-0512B-000 BoltBolt JATCO; 3AT:(4V:EPI,2V:TURBO:4WD); 1993-08-01~ |
01550-0512B-000 |
from US $0.70 |
||
