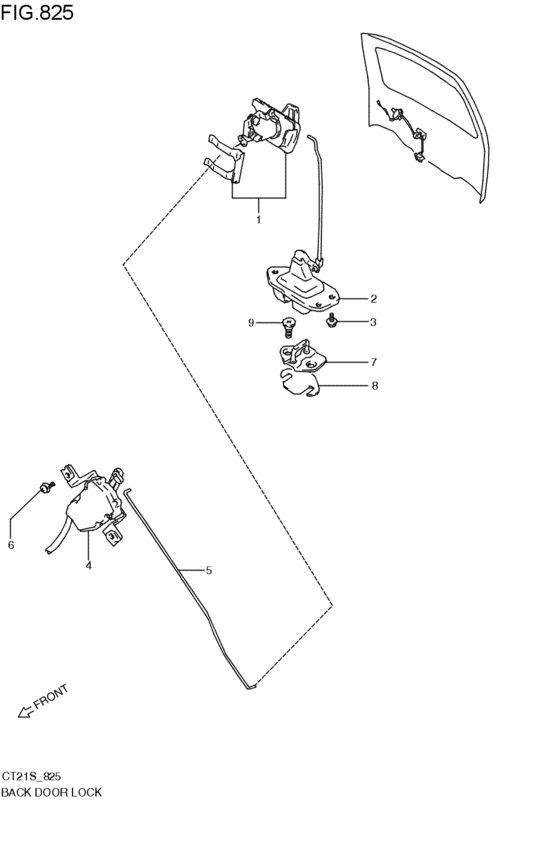

back door lock (1993-08-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1996 - 1997
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- RT
- type
- TYPE3
- air bag
- AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82500-60882-000
CYLINDER,BACK DR LOCK
1993-08-01~ |
82500-60882-000 |
— | ||
|
2
|
2
82510-74F01-000
ラッチアッシ,バックドア
1993-08-01~1995-09-01 |
82510-74F01-000 |
— | ||
| replacements | |||||
|
2
|
2
82510-74F10-000 LATCH ASSY,BACK DR1993-08-01~1995-09-01 |
82510-74F10-000 |
US $53.36 |
||
|
2
|
2
82650-75F00-000 STRIKER,BACK DOOR1993-08-01~1995-09-01 |
82650-75F00-000 |
US $12.40 |
||
|
2
|
2
82510-74F10-000 LATCH ASSY,BACK DR1995-09-01~ |
82510-74F10-000 |
US $53.36 |
||
|
3
|
3
02112-76123-000
Screw
1993-08-01~ |
02112-76123-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-7612B-000 SCREW1993-08-01~ |
02112-7612B-000 |
from US $1.12 |
||
|
4
|
4
82550-54FA0-000 ACTUATOR,BACK DR LATCH2WD:(RX,SL,RT,FX,FT,RV):TYPE3; 1996-11-01~ |
82550-54FA0-000 |
from US $91.04 |
||
|
4
|
4
82550-54F00-000 ACTUATOR,BACK DR LATCH2WD:(RX,SL,RT,FX,FT,RV):(TYPE2,TYPE3); 1995-10-01~1996-11-01 |
82550-54F00-000 |
US $156.03 |
||
|
5
|
5
82592-74F00-000
Rod,back door opener
2WD:(RX,SL,RT,FX,FT,RV):(TYPE2,TYPE3); 1995-10-01~ |
82592-74F00-000 |
— | ||
|
6
|
6
02112-76123-000
Screw
2WD:(RX,SL,RT,FX,FT,RV):(TYPE2,TYPE3); 1995-10-01~ |
02112-76123-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-7612B-000 SCREW2WD:(RX,SL,RT,FX,FT,RV):(TYPE2,TYPE3); 1995-10-01~ |
02112-7612B-000 |
from US $1.12 |
||
|
7
|
7
82650-60E01-000
ストライカ,バックドアラッチ
1993-08-01~1995-09-01 |
82650-60E01-000 |
— | ||
| replacement | |||||
|
7
|
7
82650-60E0V-000 STRIKER,BACK DOOR LATCH1993-08-01~1995-09-01 |
82650-60E0V-000 |
US $12.40 |
||
|
7
|
7
82650-74F00-000
ストライカ,バックドアラッチ
1995-09-01~ |
82650-74F00-000 |
— | ||
| replacement | |||||
|
7
|
7
82650-75F00-000 STRIKER,BACK DOOR1995-09-01~ |
82650-75F00-000 |
US $12.40 |
||
|
8
|
8
78199-78000-000 SPACER,DOOR LOCK STRIKER1993-08-01~ |
78199-78000-000 |
from US $0.68 |
||
|
9
|
9
09137-08006-000
Screw
1993-08-01~ |
09137-08006-000 |
— | ||
| replacements | |||||
|
9
|
9
09137-08011-000 SCREW(8X18)1993-08-01~ |
09137-08011-000 |
from US $1.40 |
||
|
9
|
9
09137-08004-000 SCREW(8X18)1993-08-01~ |
09137-08004-000 |
from US $0.99 |
||
