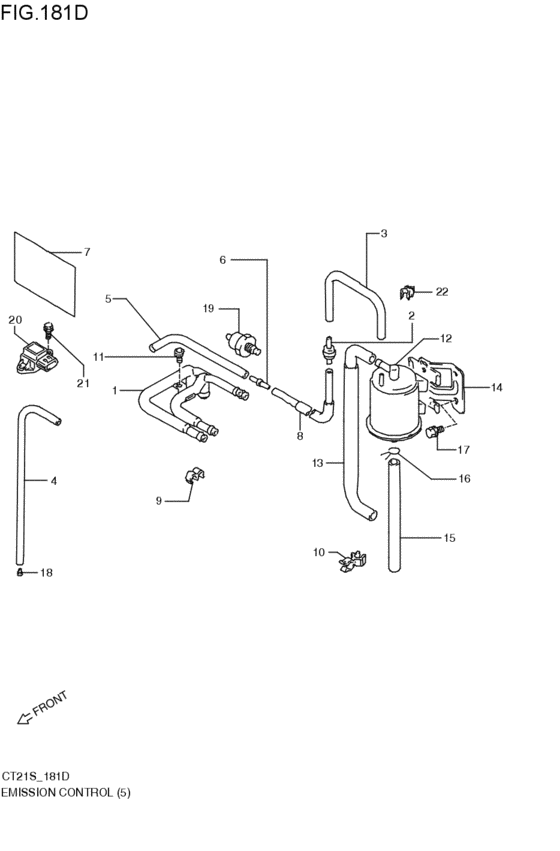

emission control (ゴウキワケ; (TYPE2,TYPE3):2V:TURBO; 1995-10-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1996 - 1997
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- RT
- type
- TYPE3
- air bag
- AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18340-70G30-000
パイプ,バキューム
(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
18340-70G30-000 |
— | ||
|
2
|
2
18565-84150-000
バルブ,キャニスタパージ
(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
18565-84150-000 |
— | ||
| replacement | |||||
|
2
|
2
18565-84151-000 VALVE,CANISTER PURGE(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
18565-84151-000 |
US $21.60 |
||
|
3
|
3
09355-35754-600
ホース,3.5X7.5X600
L:600>100; (TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
09355-35754-600 |
— | ||
| replacements | |||||
|
3
|
3
09355-35754-601
HOSE(3.5X7.5X601)
L:600>100; (TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
09355-35754-601 |
— | ||
|
3
|
3
09355-35006-601 Hose(3.5X7.5X601)L:600>100; (TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
09355-35006-601 |
from US $5.78 |
||
|
4
|
4
09355-35754-600
ホース,3.5X7.5X600
L:600>110; (TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
09355-35754-600 |
— | ||
| replacements | |||||
|
4
|
4
09355-35754-601
HOSE(3.5X7.5X601)
L:600>110; (TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
09355-35754-601 |
— | ||
|
4
|
4
09355-35006-601 Hose(3.5X7.5X601)L:600>110; (TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
09355-35006-601 |
from US $5.78 |
||
|
5
|
5
09355-35754-600
ホース,3.5X7.5X600
L:600>170; (TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
09355-35754-600 |
— | ||
| replacements | |||||
|
5
|
5
09355-35754-601
HOSE(3.5X7.5X601)
L:600>170; (TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
09355-35754-601 |
— | ||
|
5
|
5
09355-35006-601 Hose(3.5X7.5X601)L:600>170; (TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
09355-35006-601 |
from US $5.78 |
||
|
6
|
6
09367-04008-000 2 WAY(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
09367-04008-000 |
US $32 |
||
|
7
|
7
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole (TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
84761-50X50-000 |
from US $6.72 |
||
|
8
|
8
18564-74F50-000
ホース,L:440
(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
18564-74F50-000 |
— | ||
| replacement | |||||
|
8
|
8
18564-74FV0-000 HOSE,VACUUM(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
18564-74FV0-000 |
US $12.40 |
||
|
9
|
9
09408-00033-000 CLAMPClamp (TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
09408-00033-000 |
from US $1.60 |
||
|
10
|
10
09408-00067-000 CLIP(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
09408-00067-000 |
from US $2.03 |
||
|
11
|
11
01550-06103-000
Bolt, front
(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
01550-06103-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0610B-000 BoltBolt (TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
01550-0610B-000 |
from US $0.96 |
||
|
11
|
11
01550-0610A-000 Bolt(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
01550-0610A-000 |
from US $0.96 |
||
|
12
|
12
18560-72G00-000
CANISTER
(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
18560-72G00-000 |
— | ||
|
13
|
13
18567-51E51-000 HOSE(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
18567-51E51-000 |
US $10.30 |
||
|
14
|
14
18570-72B21-000
Bracket,canister
(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
18570-72B21-000 |
— | ||
|
15
|
15
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>260; (TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
09355-70125-600 |
from US $6.54 |
||
| replacement | |||||
|
15
|
15
44421-12FR0-000 HOSEL:600>260; (TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
44421-12FR0-000 |
from US $17.46 |
||
|
16
|
16
09401-12301-000 CLIP(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
09401-12301-000 |
from US $0.50 |
||
|
17
|
17
01550-06123-000
Bolt
(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0612B-000 BoltBolt, clamp (TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
17
|
17
01550-0612A-000 Bolt(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
18
|
18
15616-64D00-000 JET(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
15616-64D00-000 |
US $3.64 |
||
|
19
|
19
18133-60B00-000 FILTER,GAS(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
18133-60B00-000 |
from US $16.31 |
||
|
20
|
20
18590-70G30-000
センサ,プレッシャ
(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
18590-70G30-000 |
— | ||
|
21
|
21
02112-74103-000
Screw
(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
02112-74103-000 |
— | ||
| replacement | |||||
|
21
|
21
02112-7410B-000 SCREW(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
02112-7410B-000 |
from US $3.71 |
||
|
22
|
22
09403-08313-000 CLAMP(TYPE2,TYPE3):2V:TURBO; 1995-10-01~ |
09403-08313-000 |
from US $0.59 |
||
