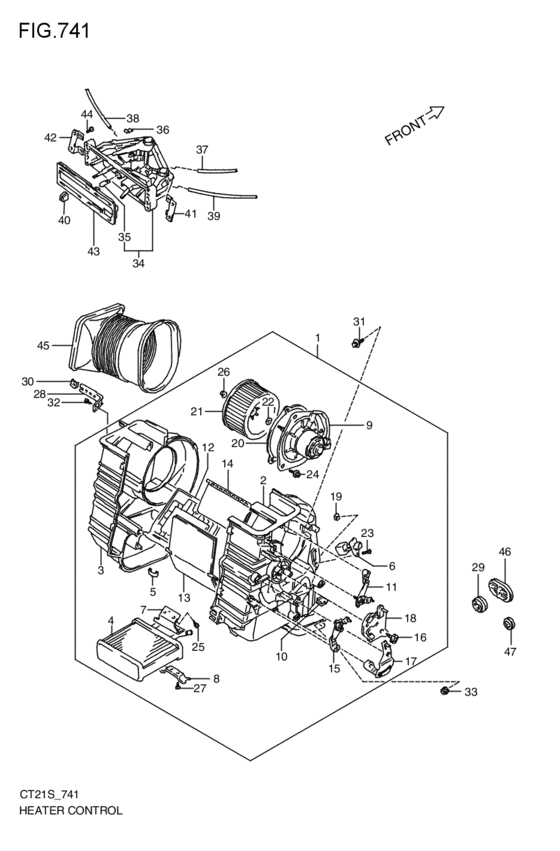

heater control (1993-08-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1996 - 1997
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- RT
- type
- TYPE3
- air bag
- AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-74F02-000
HEATER UNIT
1993-08-01~ |
74100-74F02-000 |
— | ||
|
2
|
2
74111-60D03-000 CASE,HTR,R1993-08-01~ |
74111-60D03-000 |
US $60.35 |
||
|
3
|
3
74112-60D00-000
CASE,HTR,L
1993-08-01~ |
74112-60D00-000 |
— | ||
|
4
|
4
74120-74F00-000
コア,ヒータ
1993-08-01~ |
74120-74F00-000 |
— | ||
| replacement | |||||
|
4
|
4
74120-75F00-000 CORE,HTR1993-08-01~ |
74120-75F00-000 |
from US $475.20 |
||
|
5
|
5
74133-82000-000 CLAMP,CASE1993-08-01~1994-07-01 |
74133-82000-000 |
US $1.60 |
||
|
6
|
6
74140-60D00-000
RESISTER,BLOWER
1993-08-01~ |
74140-60D00-000 |
— | ||
|
7
|
7
74141-74F00-000
クランプ,ヒータパイプ
1993-08-01~ |
74141-74F00-000 |
— | ||
| replacement | |||||
|
7
|
7
74141-75F50-000
CLAMP,HTR PIPE
1993-08-01~ |
74141-75F50-000 |
— | ||
|
8
|
8
74142-74F00-000
CLAMP,HTR PIPE NO.2
1993-08-01~ |
74142-74F00-000 |
— | ||
|
9
|
9
74150-70B00-000 MOTOR,FAN1993-08-01~ |
74150-70B00-000 |
US $401.28 |
||
|
10
|
10
74151-50F00-000 CABLE1993-08-01~ |
74151-50F00-000 |
US $3.09 |
||
|
11
|
11
74170-60D00-000 LEVER ASSY,VENT1993-08-01~ |
74170-60D00-000 |
US $21.71 |
||
|
12
|
12
74171-70B00-000 DOOR,AIR MIXTURE1993-08-01~ |
74171-70B00-000 |
US $21.34 |
||
|
13
|
13
74172-70B02-000 DOOR ASSY,HEAT1993-08-01~ |
74172-70B02-000 |
US $21.34 |
||
|
14
|
14
74173-70B02-000
ドアアッシ,ベント
1993-08-01~ |
74173-70B02-000 |
— | ||
| replacement | |||||
|
14
|
14
74173-50F00-000 DOOR ASSY,VENT1993-08-01~ |
74173-50F00-000 |
US $21.34 |
||
|
15
|
15
74180-60D00-000 LEVER ASSY,HEAT1993-08-01~ |
74180-60D00-000 |
US $16.30 |
||
|
16
|
16
74183-82005-000 SCREW,LINK1993-08-01~ |
74183-82005-000 |
US $1.73 |
||
|
17
|
17
74190-72B01-000 LEVER ASSY,TEMP1993-08-01~ |
74190-72B01-000 |
US $20.61 |
||
|
18
|
18
74186-60D02-000 LEVER ASSY,MODE CONT1993-08-01~ |
74186-60D02-000 |
US $8.91 |
||
|
19
|
19
74189-70B00-000 NUT,SPEED1993-08-01~1994-07-01 |
74189-70B00-000 |
US $3.72 |
||
|
20
|
20
88153-79000-000 PACKING,MOTOR1993-08-01~1994-07-01 |
88153-79000-000 |
US $1.52 |
||
|
21
|
21
88190-79000-000 FAN,BLOWER1993-08-01~ |
88190-79000-000 |
US $29.81 |
||
|
22
|
22
74131-82000-000
ワッシャ,ファン
1993-08-01~ |
74131-82000-000 |
— | ||
| replacement | |||||
|
22
|
22
17112-82000-000 WASHER,FAN1993-08-01~ |
17112-82000-000 |
US $0.85 |
||
|
23
|
23
03211-04123-000
Screw
1993-08-01~ |
03211-04123-000 |
— | ||
| replacement | |||||
|
23
|
23
03211-0412A-000 SCREW1993-08-01~ |
03211-0412A-000 |
from US $0.80 |
||
|
24
|
24
74135-82000-000 SCREW,MOTOR1993-08-01~ |
74135-82000-000 |
US $1.73 |
||
|
25
|
25
03511-05123-000
スクリュ
1993-08-01~ |
03511-05123-000 |
— | ||
| replacement | |||||
|
25
|
25
03511-0512A-000 SCREW1993-08-01~ |
03511-0512A-000 |
from US $0.96 |
||
|
26
|
26
08316-10053-000
Nut
1993-08-01~ |
08316-10053-000 |
— | ||
| replacement | |||||
|
26
|
26
08316-1005A-000 NUT1993-08-01~ |
08316-1005A-000 |
from US $0.96 |
||
|
27
|
27
02112-05103-000
Bolt
TYPE2,TYPE3; 1995-10-01~ |
02112-05103-000 |
— | ||
| replacement | |||||
|
27
|
27
02112-0510A-000 SCREWTYPE2,TYPE3; 1995-10-01~ |
02112-0510A-000 |
from US $0.76 |
||
|
28
|
28
74671-74F00-000 STAY,GLOVE BOX1993-08-01~ |
74671-74F00-000 |
US $5.59 |
||
|
29
|
29
74812-60B00-000 GROMMET,HTR1993-08-01~ |
74812-60B00-000 |
US $4.31 |
||
|
30
|
30
74819-84000-000 NUT1993-08-01~ |
74819-84000-000 |
from US $1.51 |
||
|
31
|
31
09118-06106-000 BOLT(6X16)1993-08-01~ |
09118-06106-000 |
US $1.12 |
||
|
32
|
32
03541-05103-000
Screw5 x 10
1993-08-01~ |
03541-05103-000 |
— | ||
| replacements | |||||
|
32
|
32
03541-0510B-000 SCREW1993-08-01~ |
03541-0510B-000 |
from US $0.80 |
||
|
32
|
32
03541-0510A-000 SCREWScrew, rr cover 1993-08-01~ |
03541-0510A-000 |
from US $0.68 |
||
|
33
|
33
08361-25063-000
Nut
1993-08-01~ |
08361-25063-000 |
— | ||
| replacement | |||||
|
33
|
33
08361-2506A-000 NUT1993-08-01~ |
08361-2506A-000 |
US $0.80 |
||
|
34
|
34
74400-60D01-000
レバーアッシ,ヒータコントロール
1993-08-01~1994-01-01 |
74400-60D01-000 |
— | ||
| replacements | |||||
|
34
|
34
74400-60D05-000 LEVER ASSY,HTR CONT1993-08-01~1994-01-01 |
74400-60D05-000 |
US $200 |
||
|
34
|
34
74461-60F02-000 KNOB,HTR CONTROL1993-08-01~1994-01-01 |
74461-60F02-000 |
US $2.24 |
||
|
34
|
34
74400-60D04-000
レバーアッシ,ヒータコントロール
1994-01-01~ |
74400-60D04-000 |
— | ||
| replacement | |||||
|
34
|
34
74400-60D05-000 LEVER ASSY,HTR CONT1994-01-01~ |
74400-60D05-000 |
US $200 |
||
|
35
|
35
74517-70B00-000
BULB,12V 1.4W
1993-08-01~ |
74517-70B00-000 |
— | ||
|
36
|
36
74441-70B00-000 HOLDER,HEATER CABLE1993-08-01~ |
74441-70B00-000 |
US $2.80 |
||
|
37
|
37
74451-60D00-000 CABLE,AIR CONTROL L:335ナチュラル; 1993-08-01~ |
74451-60D00-000 |
US $37.90 |
||
|
38
|
38
74452-60D00-000 CABLE,FRESH AIR CONTROL L:600ブラック; 1993-08-01~ |
74452-60D00-000 |
US $38.27 |
||
|
39
|
39
74453-60D00-000 CABLE,TEMP CONTROL L:470ブル-; 1993-08-01~ |
74453-60D00-000 |
US $37.90 |
||
|
40
|
40
74461-60F02-000 KNOB,HTR CONTROL1993-08-01~ |
74461-60F02-000 |
US $2.24 |
||
|
41
|
41
74491-74F00-000
STAY,HEATER CONTROL,R
1993-08-01~ |
74491-74F00-000 |
— | ||
|
42
|
42
74492-74F00-000
Stay,heater cont,l
1993-08-01~ |
74492-74F00-000 |
— | ||
|
43
|
43
74510-61D00-000 PANEL,HEATER CONTROL1993-08-01~ |
74510-61D00-000 |
US $78.02 |
||
|
44
|
44
03541-05123-000
Screw
1993-08-01~ |
03541-05123-000 |
— | ||
| replacement | |||||
|
44
|
44
03541-0512B-000 SCREW1993-08-01~ |
03541-0512B-000 |
from US $0.76 |
||
