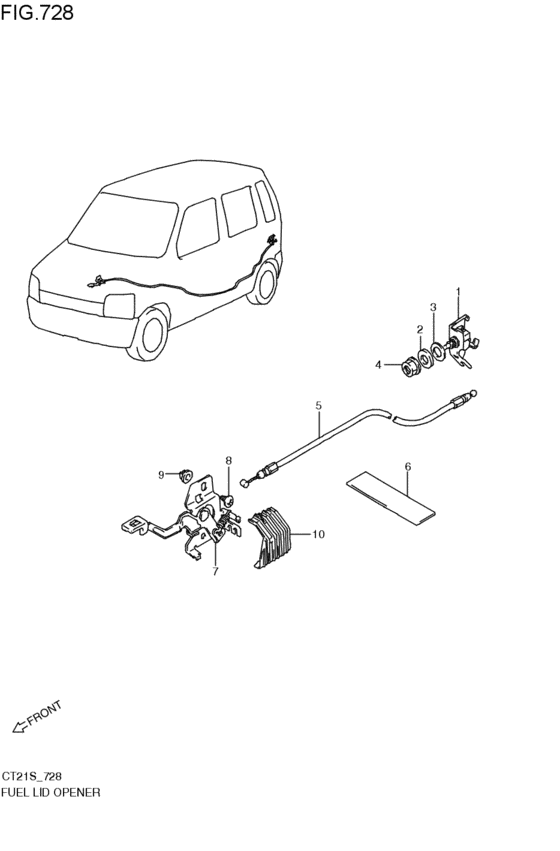

フューエルリッドオープナ (1993-08-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1996 - 1997
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- RT
- type
- TYPE3
- air bag
- AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76520-60A00-000 OPENER ASSY,FUEL LID1993-08-01~ |
76520-60A00-000 |
from US $18.77 |
||
|
2
|
2
09160-13011-000 WASHER(13X21X2.5)1993-08-01~ |
09160-13011-000 |
from US $0.52 |
||
|
3
|
3
09161-13003-000 WASHER(13.3X21X1)1993-08-01~1994-02-01 |
09161-13003-000 |
US $11.80 |
||
|
4
|
4
08316-10103-000
Nut
1993-08-01~ |
08316-10103-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1010B-000 NUT1993-08-01~ |
08316-1010B-000 |
from US $0.80 |
||
|
5
|
5
83350-72F00-000
ケーブル,フューエルリッドオープナ,ライト
1993-08-01~ |
83350-72F00-000 |
— | ||
| replacement | |||||
|
5
|
5
83350-72F0V-000 CABLE,FUEL LID OPENER,R1993-08-01~ |
83350-72F0V-000 |
US $31.46 |
||
|
6
|
6
36930-82010-000 COVER,HARNESSCover, roof wire 1993-08-01~ |
36930-82010-000 |
from US $1.51 |
||
|
7
|
7
83310-74F01-000 LEVER,FUEL OPENER1993-08-01~ |
83310-74F01-000 |
US $43.79 |
||
|
8
|
8
03541-06103-000
Screw
1993-08-01~ |
03541-06103-000 |
— | ||
| replacement | |||||
|
8
|
8
03541-0610B-000 SCREW1993-08-01~ |
03541-0610B-000 |
from US $0.80 |
||
|
9
|
9
09148-06007-000 NUT1993-08-01~ |
09148-06007-000 |
from US $0.91 |
||
|
10
|
10
83319-50E01-000 COVER,BACK DR OPENER LEVER,R1994-12-01~ |
83319-50E01-000 |
US $4.71 |
||
