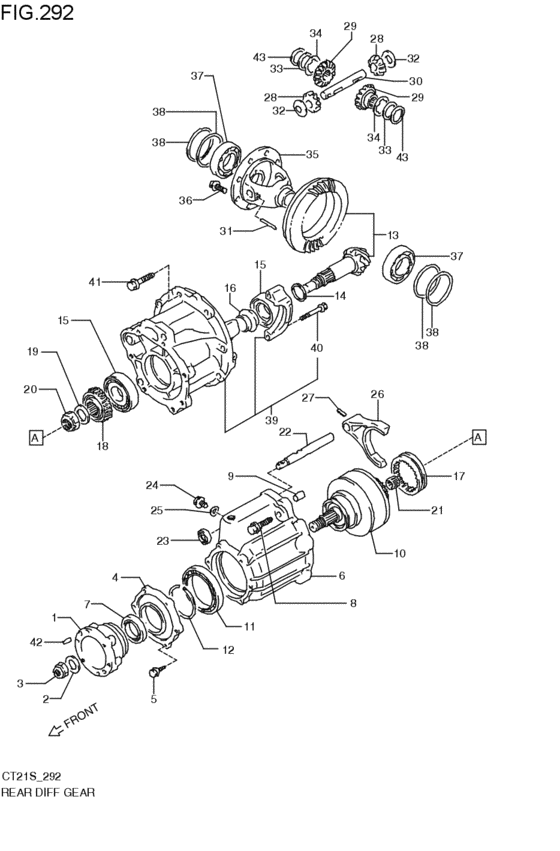

リヤデファレンシャルギヤ (4WD; 1993-08-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1995 - 1996
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- RT
- type
- TYPE2
- air bag
- AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29290-74B13-000
フランジ,リヤディファレンシャル,アウトプツト
4WD; 1993-08-01~ |
29290-74B13-000 |
— | ||
|
2
|
2
09160-16006-000 WASHER(16.5X30X2.6)4WD; 1993-08-01~ |
09160-16006-000 |
US $23.20 |
||
|
3
|
3
09159-16018-000 NUT4WD; 1993-08-01~ |
09159-16018-000 |
from US $2.24 |
||
|
4
|
4
27465-64D10-000
リテーナ,カップリングケース
4WD; 1993-08-01~1994-11-01 |
27465-64D10-000 |
— | ||
|
4
|
4
27465-64D20-000
Retainer,coupling case
4WD; 1994-11-01~ |
27465-64D20-000 |
— | ||
|
5
|
5
01550-06203-000
Bolt
4WD; 1993-08-01~ |
01550-06203-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-0620B-000 BoltBolt, inspection cap 4WD; 1993-08-01~ |
01550-0620B-000 |
from US $0.76 |
||
|
6
|
6
27460-60D10-000
ケース,カップリング
4WD; 1993-08-01~1994-11-01 |
27460-60D10-000 |
— | ||
|
6
|
6
27460-60D20-000
CASE,COUPLING
4WD; 1994-11-01~ |
27460-60D20-000 |
— | ||
|
7
|
7
09283-28022-000 SEAL,OIL(28X47X7)4WD; 1993-08-01~ |
09283-28022-000 |
from US $12.38 |
||
|
8
|
8
01550-08303-000
Bolt
4WD; 1993-08-01~ |
01550-08303-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0830B-000 Bolt4WD; 1993-08-01~ |
01550-0830B-000 |
from US $1.06 |
||
|
8
|
8
01550-0830A-000 BoltBolt, mount oil seal cover 4WD; 1993-08-01~ |
01550-0830A-000 |
from US $1.06 |
||
|
9
|
9
04211-09169-000 PIN4WD; 1993-08-01~ |
04211-09169-000 |
from US $0.68 |
||
|
10
|
10
27610-50E00-000
カップリング,ロータリブレード
4WD; 1993-08-01~1994-11-01 |
27610-50E00-000 |
— | ||
| replacement | |||||
|
10
|
10
27610-50E02-000
カップリング,ロータリブレード
4WD; 1993-08-01~1994-11-01 |
27610-50E02-000 |
— | ||
|
10
|
10
27610-50E10-000
カップリング,ロータリブレード
4WD; 1994-11-01~ |
27610-50E10-000 |
— | ||
| replacement | |||||
|
10
|
10
27610-50E12-000
カップリング,ロータリブレード
4WD; 1994-11-01~ |
27610-50E12-000 |
— | ||
|
11
|
11
08110-69110-000 BEARING4WD; 1994-11-01~ |
08110-69110-000 |
US $69.18 |
||
|
11
|
11
09262-60002-000 BEARING(60X85X13)4WD; 1993-08-01~1994-11-01 |
09262-60002-000 |
from US $104.88 |
||
|
12
|
12
08331-31556-000
Circlip
4WD; 1994-11-01~ |
08331-31556-000 |
— | ||
| replacement | |||||
|
12
|
12
08331-31559-000 CIRCLIP4WD; 1994-11-01~ |
08331-31559-000 |
from US $8.45 |
||
|
12
|
12
08331-31606-000
CIRCLIP
4WD; 1993-08-01~1994-11-01 |
08331-31606-000 |
— | ||
|
13
|
13
27300-64820-000
ベベルピニオン/ギヤセット
4WD:5MT:2V:TURBO; 1993-08-01~ |
27300-64820-000 |
— | ||
|
14
|
14
09181-25031-000 SHIM(25.5X31.5X0.3)4WD; 1993-08-01~ |
09181-25031-000 |
US $16.20 |
||
|
14
|
14
09181-25147-000 SHIM(25X32X1.18)4WD; 1993-08-01~ |
09181-25147-000 |
from US $1.22 |
||
|
14
|
14
09181-25150-000 SHIM(25X32X1.24)4WD; 1993-08-01~ |
09181-25150-000 |
from US $1.22 |
||
|
14
|
14
09181-25153-000 SHIM(25X32X1.3)4WD; 1993-08-01~ |
09181-25153-000 |
US $1.76 |
||
|
15
|
15
27260-53F10-000
ベアリング
4WD; 1993-08-01~ |
27260-53F10-000 |
— | ||
| replacements | |||||
|
15
|
15
09265-25039-000 BEARING(25X62X18.25)4WD; 1993-08-01~ |
09265-25039-000 |
from US $28.60 |
||
|
15
|
15
09265-25027-000
TAPER ROLLER BEARING
4WD; 1993-08-01~ |
09265-25027-000 |
— | ||
|
16
|
16
27315-74B11-000 SPACER,DRIVE BEVEL PINION4WD; 1993-08-01~ |
27315-74B11-000 |
US $23.20 |
||
|
17
|
17
29241-64D00-000 SLEEVE,T/F CLUTCH4WD; 1993-08-01~ |
29241-64D00-000 |
US $77.28 |
||
|
18
|
18
29242-75B00-000
DOG,T/F CLUTCH
4WD; 1993-08-01~ |
29242-75B00-000 |
— | ||
|
19
|
19
08211-20345-000 WASHER4WD; 1993-08-01~ |
08211-20345-000 |
from US $1.53 |
||
|
20
|
20
09159-20009-000 NUT4WD; 1993-08-01~ |
09159-20009-000 |
from US $5.54 |
||
|
21
|
21
09263-14010-000 BEARING(14X22X16)Bearing, pinion 4WD; 1993-08-01~ |
09263-14010-000 |
from US $10.08 |
||
|
22
|
22
29331-64D00-000
SHAFT,T/F SHIFT FORK
4WD; 1993-08-01~ |
29331-64D00-000 |
— | ||
|
23
|
23
09283-12004-000 SEAL,OIL(12X24X7)4WD; 1993-08-01~ |
09283-12004-000 |
US $11.20 |
||
|
24
|
24
29373-64D00-000 BOLT,T/F LOCK4WD; 1993-08-01~ |
29373-64D00-000 |
US $3.64 |
||
|
25
|
25
09168-10007-000 GASKET(10.1X16X1)Gasket, parking pawl 4WD; 1993-08-01~ |
09168-10007-000 |
from US $1.76 |
||
|
26
|
26
29311-64D00-000
FORK,T/F SHIFT
4WD; 1993-08-01~ |
29311-64D00-000 |
— | ||
|
27
|
27
09205-04015-000 PIN,SPRING(4.5X20)4WD; 1993-08-01~ |
09205-04015-000 |
from US $3.56 |
||
|
28
|
28
27331-82000-000
GEAR DFFI STAR PINION
4WD; 1993-08-01~ |
27331-82000-000 |
— | ||
| replacement | |||||
|
28
|
28
27331-78FJ1-000 PINION,DIFFERENTIAL4WD; 1993-08-01~ |
27331-78FJ1-000 |
from US $25.94 |
||
|
29
|
29
27341-74B10-000
Gear,rear diff side
4WD; 1993-08-01~1994-11-01 |
27341-74B10-000 |
— | ||
|
29
|
29
27341-82000-000
GEAR DIFF
4WD; 1994-11-01~ |
27341-82000-000 |
— | ||
| replacement | |||||
|
29
|
29
27341-76G12-000 GEAR,DIFF4WD; 1994-11-01~ |
27341-76G12-000 |
from US $56.72 |
||
|
30
|
30
27351-62B00-000 SHAFT,DIFF SIDE PINION4WD; 1993-08-01~ |
27351-62B00-000 |
from US $13.64 |
||
|
31
|
31
09205-05007-000 PIN,SPRING(5X36)4WD; 1993-08-01~ |
09205-05007-000 |
from US $1.04 |
||
|
32
|
32
09164-15003-000 WASHER4WD; 1993-08-01~ |
09164-15003-000 |
from US $1.60 |
||
|
33
|
33
09160-29016-000
WASHER(29X41.5X1.3)
4WD; 1993-08-01~1994-11-01 |
09160-29016-000 |
— | ||
|
34
|
34
09164-29003-000 WASHER4WD; 1993-08-01~1994-11-01 |
09164-29003-000 |
from US $9.40 |
||
|
35
|
35
27411-64D10-000
ケース,リヤディファレンシャル
4WD; 1993-08-01~1994-11-01 |
27411-64D10-000 |
— | ||
|
35
|
35
27411-64D20-000
ケース,リヤディファレンシャル
4WD; 1994-11-01~ |
27411-64D20-000 |
— | ||
|
36
|
36
09103-10215-000
Bolt (10x16)
4WD; 1993-08-01~ |
09103-10215-000 |
— | ||
| replacement | |||||
|
36
|
36
09103-10309-000 BOLT(10X16)4WD; 1993-08-01~ |
09103-10309-000 |
from US $1.67 |
||
|
37
|
37
08110-62070-000 BEARING4WD; 1993-08-01~1995-09-01 |
08110-62070-000 |
US $21.60 |
||
|
37
|
37
09262-35057-000 BEARING(35X72X17)4WD; 1995-10-01~ |
09262-35057-000 |
US $18.40 |
||
|
38
|
38
09181-62003-000 SHIM(62X71X0.1)4WD; 1993-08-01~ |
09181-62003-000 |
from US $0.95 |
||
|
38
|
38
09181-62004-000 SHIM(62X71X0.3)4WD; 1993-08-01~ |
09181-62004-000 |
from US $1.04 |
||
|
38
|
38
09181-62005-000 SHIM(62X71X0.5)4WD; 1993-08-01~ |
09181-62005-000 |
from US $0.45 |
||
|
38
|
38
09181-62007-000 SHIM(62X71X0.7)4WD; 1993-08-01~ |
09181-62007-000 |
US $11.80 |
||
|
39
|
39
27450-64D13-000
キャリアアッシ,ディファレンシャル
4WD; 1993-08-01~ |
27450-64D13-000 |
— | ||
|
40
|
40
09111-08082-000 BOLT(8X49.5)4WD; 1993-08-01~ |
09111-08082-000 |
US $18.40 |
||
|
41
|
41
01570-08253-000
Bolt, upper
4WD; 1993-08-01~ |
01570-08253-000 |
— | ||
| replacements | |||||
|
41
|
41
01570-0825B-000 Bolt4WD; 1993-08-01~ |
01570-0825B-000 |
from US $1.28 |
||
|
41
|
41
01570-0825A-000 Bolt4WD; 1993-08-01~ |
01570-0825A-000 |
from US $1.06 |
||
|
42
|
42
09261-08006-000 PIN(8X22.5)4WD; 1993-08-01~ |
09261-08006-000 |
US $16.20 |
||
|
43
|
43
09160-35002-000 WASHER(35X46X1)4WD; 1994-11-01~ |
09160-35002-000 |
from US $1.53 |
||
|
43
|
43
09160-35003-000 WASHER(35X46X1.1)4WD; 1994-11-01~ |
09160-35003-000 |
from US $1.94 |
||
|
43
|
43
09160-35004-000 WASHER(35X46X1.2)4WD; 1994-11-01~ |
09160-35004-000 |
from US $1.94 |
||
|
43
|
43
09160-35006-000 WASHER(35X46X0.9)4WD; 1994-11-01~ |
09160-35006-000 |
from US $1.73 |
||
|
43
|
43
09160-35008-000 WASHER(35X46X0.95)Washer (35x46x0.95) 4WD; 1994-11-01~ |
09160-35008-000 |
from US $4.19 |
||
|
43
|
43
09160-35009-000 WASHER(35X46X1.05)4WD; 1994-11-01~ |
09160-35009-000 |
from US $4.19 |
||
|
43
|
43
09160-35010-000 WASHER(35X46X1.15)4WD; 1994-11-01~ |
09160-35010-000 |
from US $4.19 |
||
