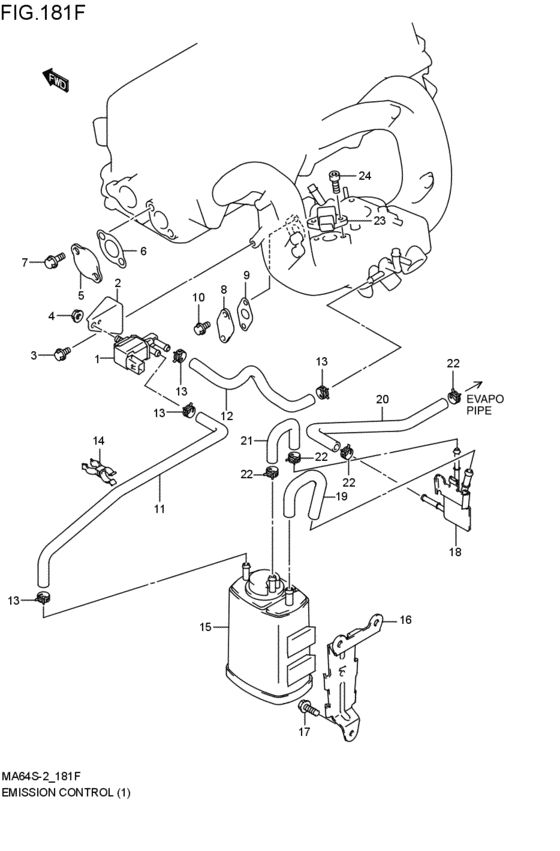

emission control (M13A; 2000-11-01~2002-07-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
- grade
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18117-52G00-000 VALVE ASSY,DUTY FOR PURGEValve assy, evap purge M13A; 2000-11-01~2002-07-01 |
18117-52G00-000 |
from US $74.25 |
||
|
2
|
2
18417-80G00-000
BRACKET,PURGE VALVE
M13A; 2000-11-01~2002-07-01 |
18417-80G00-000 |
— | ||
|
3
|
3
01550-06123-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0612B-000 BoltBolt, clamp M13A; 2000-11-01~2002-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
3
|
3
01550-0612A-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
4
|
4
08316-10063-000
Nut
M13A; 2000-11-01~2002-07-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1006B-000 NUTM13A; 2000-11-01~2002-07-01 |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
18491-80GA0-000 PLATE,EGR VALVEM13A; 2000-11-01~2002-07-01 |
18491-80GA0-000 |
US $5.28 |
||
|
6
|
6
18529-69G00-000 GASKET,EGR VALVEM13A; 2000-11-01~2002-07-01 |
18529-69G00-000 |
from US $1.92 |
||
|
7
|
7
01550-08163-000
Bolt, holder
M13A; 2000-11-01~2002-07-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0816B-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0816B-000 |
from US $0.91 |
||
|
7
|
7
01550-0816A-000 BoltBolt, rear M13A; 2000-11-01~2002-07-01 |
01550-0816A-000 |
from US $0.91 |
||
|
8
|
8
18492-77E00-000 PLATE,EGR PIPEM13A; 2000-11-01~2002-07-01 |
18492-77E00-000 |
from US $1.49 |
||
|
9
|
9
18533-77E00-000 GASKET,EGR PIPEM13A; 2000-11-01~2002-07-01 |
18533-77E00-000 |
from US $2.28 |
||
|
10
|
10
01550-06123-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BoltBolt, clamp M13A; 2000-11-01~2002-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
18562-79C00-000
Hose,cstr to vsv
M13A; 2000-11-01~2002-07-01 |
18562-79C00-000 |
— | ||
| replacements | |||||
|
11
|
11
09401-11419-000 CLIPM13A; 2000-11-01~2002-07-01 |
09401-11419-000 |
from US $1.42 |
||
|
11
|
11
18562-79C01-000 HOSE,CSTR TO VSVM13A; 2000-11-01~2002-07-01 |
18562-79C01-000 |
US $11.44 |
||
|
12
|
12
18564-80G00-000
HOSE,CANISTER PURGE NO.3
M13A; 2000-11-01~2000-12-01 |
18564-80G00-000 |
— | ||
|
12
|
12
18564-80G01-000 ホース,キャニスタパージ,NO.3M13A; 2001-01-01~2002-07-01 |
18564-80G01-000 |
US $9.65 |
||
| replacements | |||||
|
12
|
12
09401-11419-000 CLIPM13A; 2001-01-01~2002-07-01 |
09401-11419-000 |
from US $1.42 |
||
|
12
|
12
18564-80G02-000 HOSE,CSTR PURGE NO.3M13A; 2001-01-01~2002-07-01 |
18564-80G02-000 |
from US $9.65 |
||
|
13
|
13
09401-10409-000 CLIPM13A; 2000-11-01~2002-07-01 |
09401-10409-000 |
from US $1.28 |
||
|
14
|
14
09408-00174-000 CLAMPM13A; 2000-11-01~2002-07-01 |
09408-00174-000 |
US $1.98 |
||
|
15
|
15
18560-81AA0-000 CANISTERM13A; 2000-11-01~2002-07-01 |
18560-81AA0-000 |
from US $84.02 |
||
|
16
|
16
18571-78F00-000 BRACKET,CANISTERM13A; 2000-11-01~2002-07-01 |
18571-78F00-000 |
US $7.99 |
||
|
17
|
17
02162-06123-000
Bolt (6x12)
M13A; 2000-11-01~2002-07-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
02162-0612B-000 SCREWBolt M13A; 2000-11-01~2002-07-01 |
02162-0612B-000 |
from US $0.80 |
||
|
17
|
17
02162-0612A-000 SCREWBolt, bracket M13A; 2000-11-01~2002-07-01 |
02162-0612A-000 |
from US $0.79 |
||
|
18
|
18
18570-78F00-000
PIPE,PIPE TO CSTR
M13A; 2000-11-01~2002-07-01 |
18570-78F00-000 |
— | ||
| replacement | |||||
|
18
|
18
18570-78F01-000
PIPE,PIPE TO CSTR
M13A; 2000-11-01~2002-07-01 |
18570-78F01-000 |
— | ||
|
19
|
19
18561-78F00-000 HOSE,CANISTER SUCTIONM13A; 2000-11-01~2002-07-01 |
18561-78F00-000 |
US $7.51 |
||
|
20
|
20
18566-78F00-000 HOSE,CSTR INLET PIPE TO PIPEパイプ ツー パイプ; M13A; 2000-11-01~2002-07-01 |
18566-78F00-000 |
US $10.16 |
||
|
21
|
21
18567-78F10-000 HOSE,CSTR INLET PIPE TO CSTRパイプツ-キヤニスタ; M13A; 2000-11-01~2002-07-01 |
18567-78F10-000 |
US $7.51 |
||
|
22
|
22
09401-11407-000
CLIP
M13A; 2000-11-01~2002-07-01 |
09401-11407-000 |
— | ||
| replacement | |||||
|
22
|
22
09401-11415-000 CLIPM13A; 2000-11-01~2002-07-01 |
09401-11415-000 |
from US $1.06 |
||
|
23
|
23
18590-72F21-000 SENSOR,PRESSUREM13A; 2000-11-01~2002-07-01 |
18590-72F21-000 |
US $207.11 |
||
| replacement | |||||
|
23
|
23
18590-68H00-000 SENSOR,PRESSURESensor, pressure M13A; 2000-11-01~2002-07-01 |
18590-68H00-000 |
from US $207.11 |
||
|
24
|
24
07130-05163-000
Bolt
M13A; 2000-11-01~2002-07-01 |
07130-05163-000 |
— | ||
| replacement | |||||
|
24
|
24
07130-0516A-000 BoltM13A; 2000-11-01~2002-07-01 |
07130-0516A-000 |
from US $3.67 |
||
