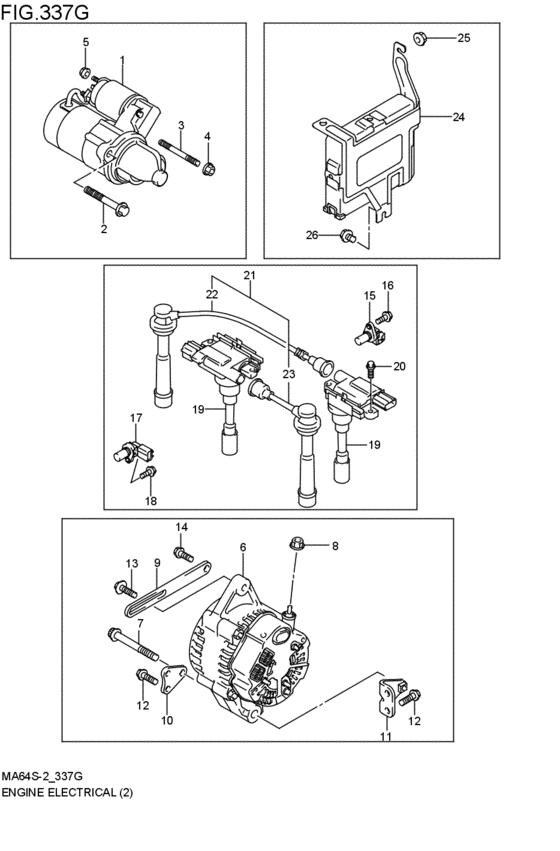

engine electrical (M13A; 2000-11-01~2002-07-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
- grade
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-80G10-000
MOTOR ASSYSTARTING
M13A; 2000-11-01~2002-07-01 |
31100-80G10-000 |
— | ||
| replacement | |||||
|
1
|
1
31100-63J00-000 MOTOR ASSY,STARTINGM13A; 2000-11-01~2002-07-01 |
31100-63J00-000 |
US $568.71 |
||
|
2
|
2
01550-10603-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01550-10603-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-1060B-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-1060B-000 |
US $1.60 |
||
|
2
|
2
01550-1060A-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-1060A-000 |
from US $1.60 |
||
|
3
|
3
09108-10091-000
Bolt l:55
M13A; 2000-11-01~2002-07-01 |
09108-10091-000 |
— | ||
| replacement | |||||
|
3
|
3
01421-1060A-000 BOLT,STUDM13A; 2000-11-01~2002-07-01 |
01421-1060A-000 |
from US $1.68 |
||
|
4
|
4
08316-10103-000
Nut
M13A; 2000-11-01~2002-07-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1010B-000 NUTM13A; 2000-11-01~2002-07-01 |
08316-1010B-000 |
from US $0.80 |
||
|
5
|
5
08316-10083-000
Nut
M13A; 2000-11-01~2002-07-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUTM13A; 2000-11-01~2002-07-01 |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
31400-78F10-000
Generator assy
M13A; 2000-11-01~2002-07-01 |
31400-78F10-000 |
— | ||
| replacement | |||||
|
6
|
6
31400-78F11-000 GENERATOR ASSYM13A; 2000-11-01~2002-07-01 |
31400-78F11-000 |
US $823.68 |
||
|
7
|
7
09106-10071-000
ボルト,10X85
M13A; 2000-11-01~2002-07-01 |
09106-10071-000 |
— | ||
| replacement | |||||
|
7
|
7
07120-1085A-000 BoltM13A; 2000-11-01~2002-07-01 |
07120-1085A-000 |
from US $2.59 |
||
|
8
|
8
08316-10063-000
Nut
M13A; 2000-11-01~2002-07-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1006B-000 NUTM13A; 2000-11-01~2002-07-01 |
08316-1006B-000 |
from US $0.76 |
||
|
9
|
9
11561-69G00-000
ARM GENERATOR ADJUSTING
M13A; 2000-11-01~2002-07-01 |
11561-69G00-000 |
— | ||
| replacement | |||||
|
9
|
9
11561-69G01-000 ARM,GENERATOR ADJUSTM13A; 2000-11-01~2002-07-01 |
11561-69G01-000 |
from US $5.76 |
||
|
10
|
10
11551-69G00-000 BRACKET,GENERATOR NO.1M13A; 2000-11-01~2002-07-01 |
11551-69G00-000 |
from US $2.48 |
||
|
11
|
11
11552-69G00-000 BRACKET,GENERATOR NO.2M13A; 2000-11-01~2002-07-01 |
11552-69G00-000 |
from US $4.16 |
||
|
12
|
12
01550-08203-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0820B-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0820B-000 |
from US $0.91 |
||
|
12
|
12
01550-0820A-000 BoltBolt, funnel bracket M13A; 2000-11-01~2002-07-01 |
01550-0820A-000 |
from US $1.12 |
||
|
13
|
13
09118-08107-000 BOLT(8X25)M13A; 2000-11-01~2002-07-01 |
09118-08107-000 |
from US $0.97 |
||
|
14
|
14
01550-08203-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0820B-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0820B-000 |
from US $0.91 |
||
|
14
|
14
01550-0820A-000 BoltBolt, funnel bracket M13A; 2000-11-01~2002-07-01 |
01550-0820A-000 |
from US $1.12 |
||
|
15
|
15
33220-50G02-000 SENSOR ASSY,CAM POSITIONM13A; 2000-11-01~2002-07-01 |
33220-50G02-000 |
from US $101.93 |
||
|
16
|
16
01550-06163-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0616B-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0616B-000 |
from US $0.76 |
||
|
16
|
16
01550-0616A-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0616A-000 |
from US $0.76 |
||
|
17
|
17
33220-80G00-000 SENSOR ASSY,CRANK POSITIONM13A; 2000-11-01~2002-07-01 |
33220-80G00-000 |
from US $104.88 |
||
|
18
|
18
09103-06240-000 BOLT(6X16)M13A; 2000-11-01~2002-07-01 |
09103-06240-000 |
from US $1.04 |
||
|
19
|
19
33400-65G00-000
Coil assy, ignition
M13A; 2000-11-01~2002-07-01 |
33400-65G00-000 |
— | ||
| replacement | |||||
|
19
|
19
33400-65G02-000 COIL ASSY,IGNITION DENSOM13A; 2000-11-01~2002-07-01 |
33400-65G02-000 |
from US $189.02 |
||
|
20
|
20
01560-06203-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01560-06203-000 |
— | ||
| replacement | |||||
|
20
|
20
01560-0620A-000 BoltM13A; 2000-11-01~2002-07-01 |
01560-0620A-000 |
from US $0.80 |
||
|
21
|
21
33705-80G00-000 CORD SET,HIGH TENSIONM13A; 2000-11-01~2002-07-01 |
33705-80G00-000 |
US $48.80 |
||
|
22
|
22
33730-80G00-000 CORD,HIGH TENSION NO.2M13A; 2000-11-01~2002-07-01 |
33730-80G00-000 |
from US $26.40 |
||
|
23
|
23
33740-80G00-000 CORD,HIGH TENSION NO.3M13A; 2000-11-01~2002-07-01 |
33740-80G00-000 |
from US $24.80 |
||
|
24
|
24
33920-78FJ1-000
CONTROLLER ASSY,EPI-A/C
M13A:2WD; 2000-11-01~2001-01-01 |
33920-78FJ1-000 |
— | ||
|
24
|
24
33920-78FL0-000
コントローラアッシ,インジェクション/エアコン
M13A:2WD; 2001-01-01~2002-07-01 |
33920-78FL0-000 |
— | ||
| replacement | |||||
|
24
|
24
33920-78FL1-000
CONTROLLER ASSY,EPI-A/C
M13A:2WD; 2001-01-01~2002-07-01 |
33920-78FL1-000 |
— | ||
|
25
|
25
09159-06081-000 NUTM13A; 2000-11-01~2002-07-01 |
09159-06081-000 |
from US $1.31 |
||
|
26
|
26
02162-06123-000
Bolt (6x12)
M13A; 2000-11-01~2002-07-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
26
|
26
02162-0612B-000 SCREWBolt M13A; 2000-11-01~2002-07-01 |
02162-0612B-000 |
from US $0.80 |
||
|
26
|
26
02162-0612A-000 SCREWBolt, bracket M13A; 2000-11-01~2002-07-01 |
02162-0612A-000 |
from US $0.79 |
||
