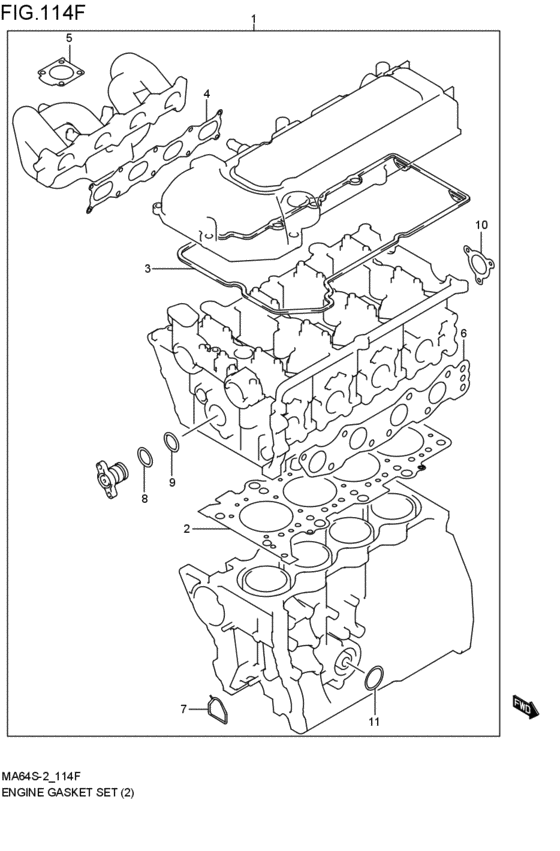

engine gasket set (M13A; 2000-11-01~2002-07-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
- grade
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-69822-000
ガスケットセット,エンジン
M13A; 2000-11-01~2002-07-01 |
11400-69822-000 |
— | ||
| replacement | |||||
|
1
|
1
11400-69828-000
GASKET SET,ENGINE
M13A; 2000-11-01~2002-07-01 |
11400-69828-000 |
— | ||
|
2
|
2
11141-69G01-000
GASKET CYLINDER HEAD
M13A; 2000-11-01~2002-07-01 |
11141-69G01-000 |
— | ||
| replacement | |||||
|
2
|
2
11141-69G03-000 GASKET,CYL HEADM13A; 2000-11-01~2002-07-01 |
11141-69G03-000 |
from US $69.14 |
||
|
3
|
3
11189-69GE0-000
GASKETCYLINDER HEAD COVER
M13A; 2000-11-01~2002-07-01 |
11189-69GE0-000 |
— | ||
| replacement | |||||
|
3
|
3
11189-54GE0-000 GASKET,CYL HEAD COVERM13A; 2000-11-01~2002-07-01 |
11189-54GE0-000 |
from US $21.13 |
||
|
4
|
4
13119-69G00-000 GASKET,INTK MANFM13A; 2000-11-01~2002-07-01 |
13119-69G00-000 |
from US $9.36 |
||
|
5
|
5
13421-69G00-000 GASKET,THROTTLE BODYM13A; 2000-11-01~2002-07-01 |
13421-69G00-000 |
from US $3.75 |
||
|
6
|
6
14140-69G00-000
GASKET EXHAUST MANIFOLD
M13A; 2000-11-01~2002-07-01 |
14140-69G00-000 |
— | ||
| replacement | |||||
|
6
|
6
14140-69G02-000 GASKET,EXH MANFM13A; 2000-11-01~2002-07-01 |
14140-69G02-000 |
from US $13.07 |
||
|
7
|
7
16559-69GE0-000 GASKET,OCVM13A; 2000-11-01~2002-07-01 |
16559-69GE0-000 |
from US $3.78 |
||
|
8
|
8
17582-54D00-000 O-RING,NO.1 D:3.5 ID:30.7M13A; 2000-11-01~2002-07-01 |
17582-54D00-000 |
from US $2.13 |
||
|
9
|
9
17583-54D00-000 O-RING,NO.2 D:3.8 ID:27.7M13A; 2000-11-01~2002-07-01 |
17583-54D00-000 |
from US $2.58 |
||
|
10
|
10
17699-69G00-000 GASKET,WATER OUTLET CAPM13A; 2000-11-01~2002-07-01 |
17699-69G00-000 |
from US $4.77 |
||
|
11
|
11
09280-62003-000 O RING(D:3.5,ID:60.7)M13A; 2000-11-01~2002-07-01 |
09280-62003-000 |
from US $4.75 |
||
