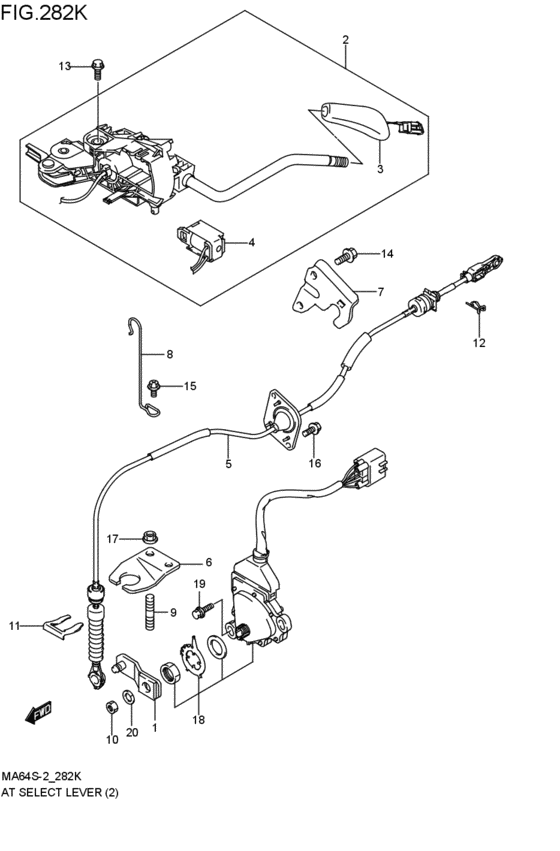

select lever (M13A; 2000-11-01~2002-07-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
- grade
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25971-79CJ0-000 LEVER,MANUAL SLTM13A; 2000-11-01~2002-07-01 |
25971-79CJ0-000 |
US $12 |
||
|
2
|
2
28100-79CJ1-000
セレクトアッシ,コラム
M13A; 2000-11-01~2002-07-01 |
28100-79CJ1-000 |
— | ||
| replacement | |||||
|
2
|
2
28100-79CV1-000
SELECTOR ASSY,COLUMN
M13A; 2000-11-01~2002-07-01 |
28100-79CV1-000 |
— | ||
|
3
|
3
28160-76FK0-000
KNOB ASSY,SEL LEVER
M13A; 2000-11-01~2002-07-01 |
28160-76FK0-000 |
— | ||
| replacement | |||||
|
3
|
3
28160-76FK1-000 KNOB ASSY,SEL LEVERM13A; 2000-11-01~2002-07-01 |
28160-76FK1-000 |
US $23.18 |
||
|
4
|
4
28610-76FJ0-000 SOLENOID,SHIFT LOCKM13A; 2000-11-01~2002-07-01 |
28610-76FJ0-000 |
US $76.91 |
||
|
5
|
5
28210-79CJ0-000
CABLE ASSY,SELECT
M13A; 2000-11-01~2002-07-01 |
28210-79CJ0-000 |
— | ||
|
6
|
6
28221-79C10-000
BRACKET,SELECT CABLE
M13A; 2000-11-01~2002-07-01 |
28221-79C10-000 |
— | ||
|
7
|
7
28222-78FJ0-000 BRACKET,SEL CABLE COLUMNM13A; 2000-11-01~2002-07-01 |
28222-78FJ0-000 |
US $8.72 |
||
|
8
|
8
28225-79C11-000 CLAMP,SELECT CABLEM13A; 2000-11-01~2002-07-01 |
28225-79C11-000 |
from US $1.58 |
||
|
9
|
9
09108-08257-000 BOLT,STUDM13A; 2000-11-01~2002-07-01 |
09108-08257-000 |
US $18.40 |
||
|
10
|
10
25996-79C10-000
NUTMANUAL SELECT LEVER
M13A; 2000-11-01~2002-07-01 |
25996-79C10-000 |
— | ||
| replacement | |||||
|
10
|
10
08310-0008A-000 NUTNut, bead stopper M13A; 2000-11-01~2002-07-01 |
08310-0008A-000 |
from US $0.76 |
||
|
11
|
11
09383-19001-000 E RINGClip M13A; 2000-11-01~2002-07-01 |
09383-19001-000 |
from US $2.34 |
||
|
12
|
12
09385-08007-000 PIN,SNAPClip M13A; 2000-11-01~2002-07-01 |
09385-08007-000 |
from US $1.09 |
||
|
13
|
13
01550-08203-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0820B-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0820B-000 |
from US $0.91 |
||
|
13
|
13
01550-0820A-000 BoltBolt, funnel bracket M13A; 2000-11-01~2002-07-01 |
01550-0820A-000 |
from US $1.12 |
||
|
14
|
14
01550-08203-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0820B-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0820B-000 |
from US $0.91 |
||
|
14
|
14
01550-0820A-000 BoltBolt, funnel bracket M13A; 2000-11-01~2002-07-01 |
01550-0820A-000 |
from US $1.12 |
||
|
15
|
15
02162-06123-000
Bolt (6x12)
M13A; 2000-11-01~2002-07-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
02162-0612B-000 SCREWBolt M13A; 2000-11-01~2002-07-01 |
02162-0612B-000 |
from US $0.80 |
||
|
15
|
15
02162-0612A-000 SCREWBolt, bracket M13A; 2000-11-01~2002-07-01 |
02162-0612A-000 |
from US $0.79 |
||
|
16
|
16
02162-06203-000
Bolt
M13A; 2000-11-01~2002-07-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
16
|
16
02162-0620C-000 SCREWM13A; 2000-11-01~2002-07-01 |
02162-0620C-000 |
from US $0.83 |
||
|
17
|
17
08316-10083-000
Nut
M13A; 2000-11-01~2002-07-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1008B-000 NUTM13A; 2000-11-01~2002-07-01 |
08316-1008B-000 |
from US $0.76 |
||
|
18
|
18
37720-79C10-000 SWITCH ASSY,SHIFTM13A; 2000-11-01~2002-07-01 |
37720-79C10-000 |
from US $189.43 |
||
|
19
|
19
24896-79C10-000 BOLT,SHIFT SWITCHM13A; 2000-11-01~2002-07-01 |
24896-79C10-000 |
from US $1.08 |
||
|
20
|
20
25997-60G10-000 WASHER,MANUAL SELECT LEVERM13A; 2000-11-01~2002-07-01 |
25997-60G10-000 |
from US $1.91 |
||
