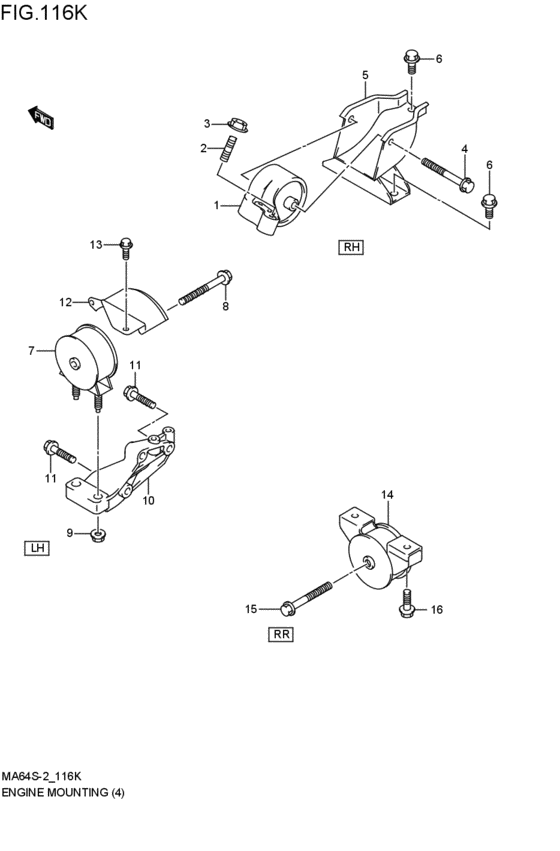

engine mounting (M13A:4WD; 2000-11-01~2002-07-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- transmission
- AT
- grade
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-79C00-000 MOUNTING,ENG,RM13A:4WD; 2000-11-01~2002-07-01 |
11610-79C00-000 |
US $202.40 |
||
|
2
|
2
09108-10136-000 BOLT,STUD(10X50)M13A:4WD; 2000-11-01~2002-07-01 |
09108-10136-000 |
US $2.40 |
||
|
3
|
3
09159-10105-000
Nut, rr lh case
M13A:4WD; 2000-11-01~2002-07-01 |
09159-10105-000 |
— | ||
| replacement | |||||
|
3
|
3
09159-10116-000 NUTM13A:4WD; 2000-11-01~2002-07-01 |
09159-10116-000 |
from US $1.28 |
||
|
4
|
4
09103-10110-000 BOLT(10X100)Bolt, lh outer (10x100) M13A:4WD; 2000-11-01~2002-07-01 |
09103-10110-000 |
from US $3.95 |
||
|
5
|
5
11640-79C00-000
ブラケット,エンジンライト,ボディサイド
M13A:4WD; 2000-11-01~2002-07-01 |
11640-79C00-000 |
— | ||
| replacement | |||||
|
5
|
5
11640-80GA0-000 BRACKET,ENG BODY SIDE,RM13A:4WD; 2000-11-01~2002-07-01 |
11640-80GA0-000 |
US $64.77 |
||
|
6
|
6
01551-10253-000
Bolt
M13A:4WD; 2000-11-01~2002-07-01 |
01551-10253-000 |
— | ||
| replacement | |||||
|
6
|
6
01551-1025A-000 BoltM13A:4WD; 2000-11-01~2002-07-01 |
01551-1025A-000 |
US $1.12 |
||
|
7
|
7
11620-78F00-000 MOUNTING,ENG,LM13A:4WD; 2000-11-01~2002-07-01 |
11620-78F00-000 |
US $208 |
||
|
8
|
8
09113-10005-000 BOLT(10X90)M13A:4WD; 2000-11-01~2002-07-01 |
09113-10005-000 |
from US $2.41 |
||
|
9
|
9
08316-10103-000
Nut
M13A:4WD; 2000-11-01~2002-07-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1010B-000 NUTM13A:4WD; 2000-11-01~2002-07-01 |
08316-1010B-000 |
from US $0.80 |
||
|
10
|
10
11651-79C00-000 BRACKET,ENG MTG,LM13A:4WD; 2000-11-01~2002-07-01 |
11651-79C00-000 |
US $67.34 |
||
|
11
|
11
01550-10453-000
Bolt
M13A:4WD; 2000-11-01~2002-07-01 |
01550-10453-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1045B-000 BoltM13A:4WD; 2000-11-01~2002-07-01 |
01550-1045B-000 |
from US $1.28 |
||
|
12
|
12
11671-78F01-000 BRACKET,ENG MTG BODY,LM13A:4WD; 2000-11-01~2002-07-01 |
11671-78F01-000 |
US $23.37 |
||
|
13
|
13
01551-08203-000
Bolt
M13A:4WD; 2000-11-01~2002-07-01 |
01551-08203-000 |
— | ||
| replacement | |||||
|
13
|
13
01551-0820A-000 BoltM13A:4WD; 2000-11-01~2002-07-01 |
01551-0820A-000 |
from US $0.96 |
||
|
14
|
14
11710-78F11-000 MOUNTING,ENG REARM13A:4WD; 2000-11-01~2002-07-01 |
11710-78F11-000 |
US $132 |
||
|
15
|
15
09103-10173-000 BOLT(10X80)M13A:4WD; 2000-11-01~2002-07-01 |
09103-10173-000 |
from US $9.35 |
||
|
16
|
16
01551-10353-000
ボルト
M13A:4WD; 2000-11-01~2002-07-01 |
01551-10353-000 |
— | ||
| replacement | |||||
|
16
|
16
01551-1035A-000 BoltM13A:4WD; 2000-11-01~2002-07-01 |
01551-1035A-000 |
US $19.50 |
||
