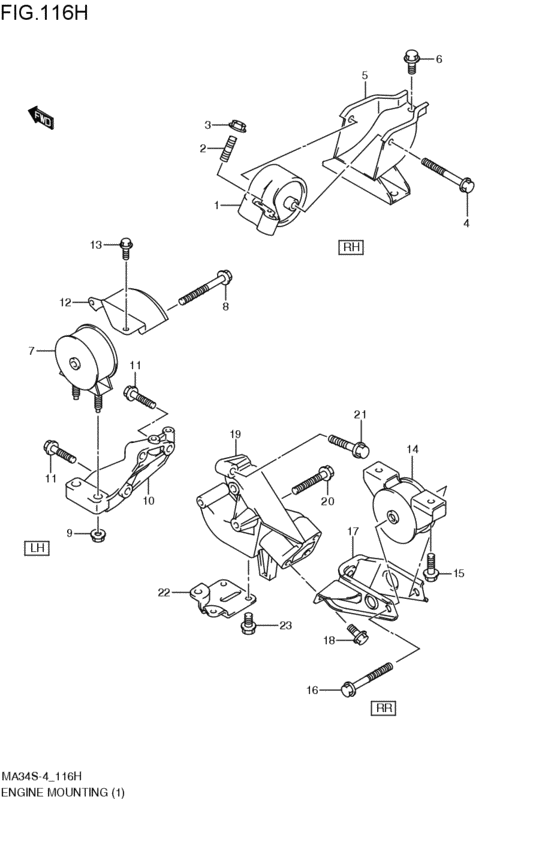

engine mounting (2WD; 2003-08-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2003 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-79C00-000 MOUNTING,ENG,R2WD; 2003-08-01~ |
11610-79C00-000 |
US $202.40 |
||
|
2
|
2
09108-10136-000 BOLT,STUD(10X50)2WD; 2003-08-01~ |
09108-10136-000 |
US $2.40 |
||
|
3
|
3
09159-10058-000
Nut
2WD; 2003-08-01~ |
09159-10058-000 |
— | ||
| replacement | |||||
|
3
|
3
09159-10115-000 NUT2WD; 2003-08-01~ |
09159-10115-000 |
from US $2.58 |
||
|
4
|
4
09103-10110-000 BOLT(10X100)Bolt, lh outer (10x100) 2WD; 2003-08-01~ |
09103-10110-000 |
from US $2.61 |
||
|
5
|
5
11640-80GA0-000 BRACKET,ENG BODY SIDE,R2WD; 2003-08-01~ |
11640-80GA0-000 |
from US $18.50 |
||
|
6
|
6
01551-10253-000
Bolt
2WD; 2003-08-01~ |
01551-10253-000 |
— | ||
| replacement | |||||
|
6
|
6
01551-1025A-000 Bolt2WD; 2003-08-01~ |
01551-1025A-000 |
US $1.12 |
||
|
7
|
7
11620-70H00-000 MOUNTING,ENG,L2WD; 2003-08-01~ |
11620-70H00-000 |
US $203.20 |
||
|
8
|
8
09113-10005-000 BOLT(10X90)2WD; 2003-08-01~ |
09113-10005-000 |
from US $2.41 |
||
|
9
|
9
08316-10103-000
Nut
2WD; 2003-08-01~ |
08316-10103-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1010B-000 NUT2WD; 2003-08-01~ |
08316-1010B-000 |
from US $0.80 |
||
|
10
|
10
11651-79C00-000 BRACKET,ENG MTG,L2WD; 2003-08-01~ |
11651-79C00-000 |
US $67.34 |
||
|
11
|
11
01550-10453-000
Bolt
2WD; 2003-08-01~ |
01550-10453-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1045B-000 Bolt2WD; 2003-08-01~ |
01550-1045B-000 |
from US $1.28 |
||
|
12
|
12
11671-78F01-000 BRACKET,ENG MTG BODY,L2WD; 2003-08-01~ |
11671-78F01-000 |
from US $9.83 |
||
|
13
|
13
01551-08203-000
Bolt
2WD; 2003-08-01~ |
01551-08203-000 |
— | ||
| replacement | |||||
|
13
|
13
01551-0820A-000 Bolt2WD; 2003-08-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
14
|
14
11710-78F11-000 MOUNTING,ENG REAR2WD; 2003-08-01~ |
11710-78F11-000 |
from US $85.03 |
||
|
15
|
15
01551-10353-000
ボルト
2WD; 2003-08-01~ |
01551-10353-000 |
— | ||
| replacement | |||||
|
15
|
15
01551-1035A-000 Bolt2WD; 2003-08-01~ |
01551-1035A-000 |
US $19.50 |
||
|
16
|
16
09113-10003-000 BOLT(10X75)2WD; 2003-08-01~ |
09113-10003-000 |
US $19.50 |
||
|
17
|
17
11740-78F10-000 BRACKET,ENG RR MTG2WD; 2003-08-01~ |
11740-78F10-000 |
US $38.64 |
||
|
18
|
18
09103-10342-000 BOLT(10X32)2WD; 2003-08-01~ |
09103-10342-000 |
from US $6.14 |
||
|
19
|
19
11749-79C01-000 BRACKET,ENG RR MTG2WD; 2003-08-01~ |
11749-79C01-000 |
US $181.79 |
||
|
20
|
20
01550-10703-000
ボルト
2WD; 2003-08-01~ |
01550-10703-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-1070A-000 Bolt2WD; 2003-08-01~ |
01550-1070A-000 |
from US $1.60 |
||
|
21
|
21
01550-10503-000
Bolt
2WD; 2003-08-01~ |
01550-10503-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-1050B-000 Bolt2WD; 2003-08-01~ |
01550-1050B-000 |
US $1.22 |
||
|
22
|
22
11751-83E50-000
STIFFENER,ENG RR MTG BRKT
2WD; 2003-08-01~ |
11751-83E50-000 |
— | ||
|
23
|
23
01550-10253-000
Bolt
2WD; 2003-08-01~ |
01550-10253-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-1025B-000 BoltBolt, rr swgarm bracket, l 2WD; 2003-08-01~ |
01550-1025B-000 |
from US $1.28 |
||
|
23
|
23
01550-1025A-000 BoltBolt, drive gear 2WD; 2003-08-01~ |
01550-1025A-000 |
from US $1.06 |
||
