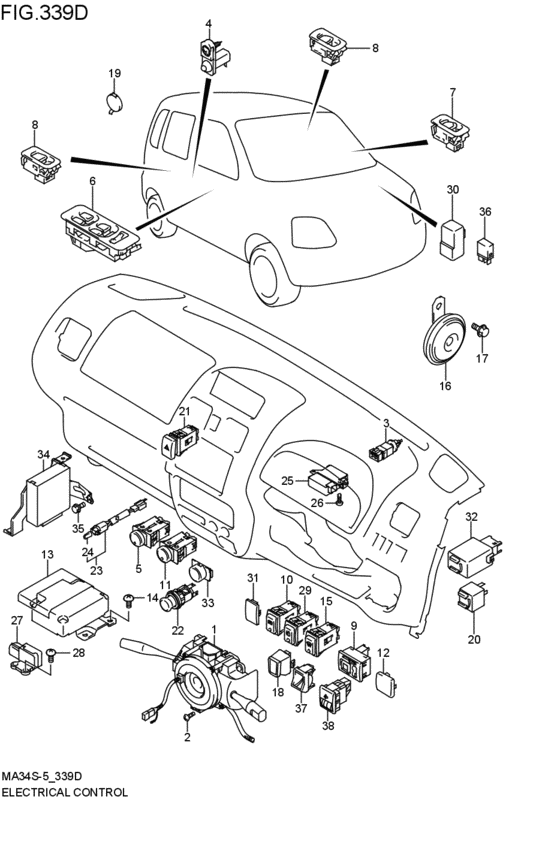

electrical control (ボデー / インパネ; 2005-07-01~2007-05-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37400-82H00-000 SWITCH ASSY,COMBXXL,XX; 2005-07-01~2007-05-01 |
37400-82H00-000 |
US $432.96 |
||
|
2
|
2
02112-0512A-000 SCREW2005-07-01~2007-05-01 |
02112-0512A-000 |
from US $0.80 |
||
|
3
|
3
37740-75H10-000 SWITCH ASSY,STOP LAMP2005-07-01~2007-05-01 |
37740-75H10-000 |
US $16.18 |
||
| replacements | |||||
|
3
|
3
37741-75H10-000 Switch Assy,stop Lamp2005-07-01~2007-05-01 |
37741-75H10-000 |
from US $16.18 |
||
|
3
|
3
37742-75H10-000 Bush,stop Lamp Sw2005-07-01~2007-05-01 |
37742-75H10-000 |
from US $4.03 |
||
|
4
|
4
37670-76G00-000 SWITCH ASSY,DOOR2005-07-01~2007-05-01 |
37670-76G00-000 |
from US $10.06 |
||
|
5
|
5
37860-70H00-000 SWITCH ASSY,RR DEFOGGER2WD; 2005-07-01~2007-05-01 |
37860-70H00-000 |
US $50.05 |
||
|
6
|
6
37990-84F20-R8R SWITCH ASSY,P/W MASTERブラウン; XXL,XX; 2005-07-01~2007-05-01 |
37990-84F20-R8R |
US $323.84 |
||
|
7
|
7
37995-75F00-R8R SWITCH ASSY,P/W SUBサブ スイッチ,ブラウン; XXL,XX; 2005-07-01~2007-05-01 |
37995-75F00-R8R |
US $65.87 |
||
|
8
|
8
37995-75F00-R8R SWITCH ASSY,P/W SUBリヤ スイッチ,ブラウン; XXL,XX; 2005-07-01~2007-05-01 |
37995-75F00-R8R |
US $65.87 |
||
|
9
|
9
37950-75F10-000 SWITCH ASSY,MIRRORXX,XXSL; 2005-07-01~2007-05-01 |
37950-75F10-000 |
US $41.95 |
||
|
13
|
13
38910-78F01-000 CONTROLLER ASSY,A/B2005-07-01~2007-05-01 |
38910-78F01-000 |
US $813.12 |
||
|
14
|
14
09115-06004-000 BOLT(6X16)2005-07-01~2007-05-01 |
09115-06004-000 |
US $12.50 |
||
|
16
|
16
38500-82H10-000
Horn assy
2005-07-01~2007-05-01 |
38500-82H10-000 |
— | ||
| replacement | |||||
|
16
|
16
38500-82H11-000 HORN ASSY2005-07-01~2007-05-01 |
38500-82H11-000 |
US $62.93 |
||
|
17
|
17
09115-08001-000 BOLT(8X18)2005-07-01~2007-05-01 |
09115-08001-000 |
from US $1.01 |
||
|
18
|
18
37285-84G10-000
HOLDER ASSY,CARD
2WD; 2005-07-01~2007-05-01 |
37285-84G10-000 |
— | ||
|
19
|
19
39238-76F00-R8R CAP,SOCKET HOLEブラウン; 2005-07-01~2007-05-01 |
39238-76F00-R8R |
US $2.80 |
||
|
20
|
20
38610-84F00-000 RELAY,TURN SIGNAL&4WAY2005-07-01~2007-05-01 |
38610-84F00-000 |
from US $48 |
||
|
21
|
21
37430-84G00-000 SWITCH ASSY,HAZARD WARNING2005-07-01~2007-05-01 |
37430-84G00-000 |
US $34.78 |
||
|
22
|
22
39410-82H00-000
Socket assy
2005-07-01~2007-05-01 |
39410-82H00-000 |
— | ||
| replacement | |||||
|
22
|
22
39410-82H01-000 SOCKET ASSY2005-07-01~2007-05-01 |
39410-82H01-000 |
US $17.44 |
||
|
23
|
23
36550-60E00-000 LAMP ASSY,ASHTRAY ILLUM2005-07-01~2007-05-01 |
36550-60E00-000 |
from US $15.05 |
||
|
24
|
24
09471-12091-000 BULB(12V1.4W G30)2005-07-01~2007-05-01 |
09471-12091-000 |
from US $3.08 |
||
|
25
|
25
38720-70H02-000 CONTROLLER ASSY,EPS2005-07-01~2007-05-01 |
38720-70H02-000 |
US $1,616 |
||
|
26
|
26
02142-0516A-000 SCREWScrew 2005-07-01~2007-05-01 |
02142-0516A-000 |
from US $0.76 |
||
|
29
|
29
37270-76F10-000 SWITCH ASSY,FR FOG LAMP(XX,XXSL):2WD; 2005-07-01~2005-12-01 |
37270-76F10-000 |
from US $27.65 |
||
|
29
|
29
37270-81J10-000 SWITCH ASSY,FR FOG(XX,XXSL):2WD; 2005-12-01~2007-05-01 |
37270-81J10-000 |
US $50.05 |
||
|
30
|
30
38860-72G00-000 RELAY ASSYRelay, air con フオグランプ リレー; XX,XXSL; 2005-07-01~2007-05-01 |
38860-72G00-000 |
from US $28.82 |
||
|
31
|
31
37285-75F10-000 CAP,OPTION SW HOLE2005-07-01~2007-05-01 |
37285-75F10-000 |
from US $1.94 |
||
|
32
|
32
37190-84F30-000 CONTROLLER,KEY LESS&D/L2005-07-01~2007-05-01 |
37190-84F30-000 |
US $252.08 |
||
|
33
|
33
37285-54G00-000 CAP,OPTION SW HOLE2WD; 2005-07-01~2007-05-01 |
37285-54G00-000 |
from US $1.96 |
||
|
34
|
34
38880-78FP1-000 CONTROLLER ASSY,AT2WD; 2005-07-01~2007-05-01 |
38880-78FP1-000 |
US $950.40 |
||
|
35
|
35
02162-06123-000
Bolt (6x12)
2005-07-01~2007-05-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
35
|
35
02162-0612B-000 SCREWBolt 2005-07-01~2007-05-01 |
02162-0612B-000 |
from US $0.80 |
||
|
35
|
35
02162-0612A-000 SCREWBolt, bracket 2005-07-01~2007-05-01 |
02162-0612A-000 |
from US $0.79 |
||
|
36
|
36
38860-76F01-000 RELAY ASSYRelay, starting motor AT リレー; 2005-07-01~2007-05-01 |
38860-76F01-000 |
from US $28.80 |
||
|
37
|
37
37285-78F00-000 CASE,COIN4WD:デアイサ ノゾク; 2WD,4WD; 2005-07-01~2007-05-01 |
37285-78F00-000 |
US $3.97 |
||
|
38
|
38
35180-79G00-000
SWITCH ASSY,HEADLAMP LEVELING
2005-07-01~2005-12-01 |
35180-79G00-000 |
— | ||
|
38
|
38
35180-81J10-000 SWITCH ASSY,HEADLAMP LEVELING2WD; 2005-12-01~2007-05-01 |
35180-81J10-000 |
US $61.46 |
||
