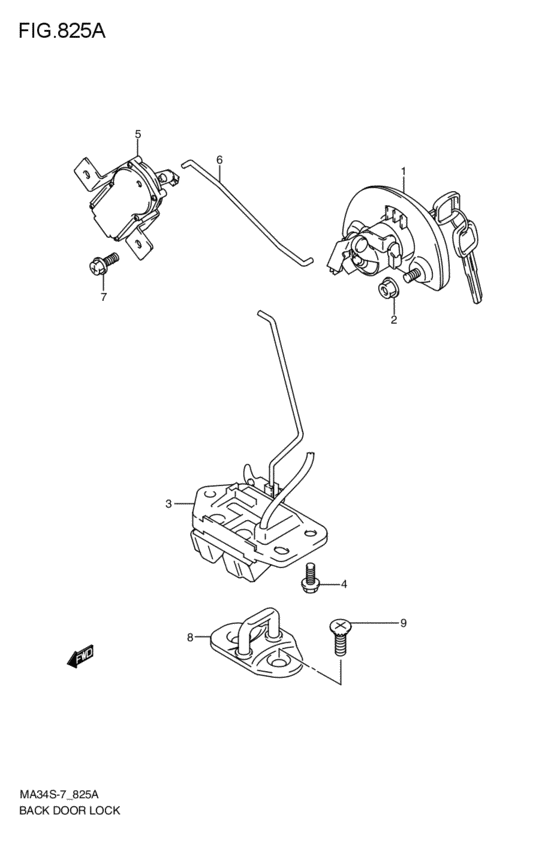

back door lock (2009-06-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XX
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82500-78810-ZEL
シリンダアッシ,バックドアロック(ブラウン)
2009-06-01~ |
82500-78810-ZEL |
— | ||
| replacement | |||||
|
1
|
1
82500-78810-5PK CYLINDER,BACK DR LOCK2009-06-01~ |
82500-78810-5PK |
US $88.32 |
||
|
1
|
1
82500-78810-ZJP
シリンダアッシ,バックドアロック(ブルー)
2009-06-01~ |
82500-78810-ZJP |
— | ||
|
1
|
1
82500-78810-ZJ3 CYLINDER,BACK DR LOCK2009-06-01~ |
82500-78810-ZJ3 |
US $114.82 |
||
|
1
|
1
82500-78810-Z2S CYLINDER,BACK DR LOCK2009-06-01~ |
82500-78810-Z2S |
US $114.82 |
||
|
1
|
1
82500-78810-Z7T CYLINDER,BACK DR LOCK2009-06-01~ |
82500-78810-Z7T |
US $114.82 |
||
|
2
|
2
08316-1006A-000 NUT2009-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
3
|
3
82510-78F01-000 LATCH ASSY,BACK DR2009-06-01~ |
82510-78F01-000 |
from US $80.22 |
||
|
4
|
4
02162-0616A-000 SCREW2009-06-01~ |
02162-0616A-000 |
from US $1.24 |
||
| replacement | |||||
|
4
|
4
02162-0616B-000 SCREWBolt, adjust 2009-06-01~ |
02162-0616B-000 |
from US $0.96 |
||
|
5
|
5
82550-76F00-000 ACTUATOR,BACK DR LATCH2009-06-01~ |
82550-76F00-000 |
US $110.40 |
||
|
6
|
6
82555-76F00-000 ROD,BACK DOOR ACTUATOR2009-06-01~ |
82555-76F00-000 |
US $4.75 |
||
|
7
|
7
02162-0616A-000 SCREW2009-06-01~ |
02162-0616A-000 |
from US $1.24 |
||
| replacement | |||||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust 2009-06-01~ |
02162-0616B-000 |
from US $0.96 |
||
|
8
|
8
82650-75F00-000 STRIKER,BACK DOOR2009-06-01~ |
82650-75F00-000 |
US $12.40 |
||
|
9
|
9
09137-08004-000 SCREW(8X18)2009-06-01~ |
09137-08004-000 |
from US $0.99 |
||
| replacement | |||||
|
9
|
9
09137-08011-000 SCREW(8X18)2009-06-01~ |
09137-08011-000 |
from US $1.40 |
||
