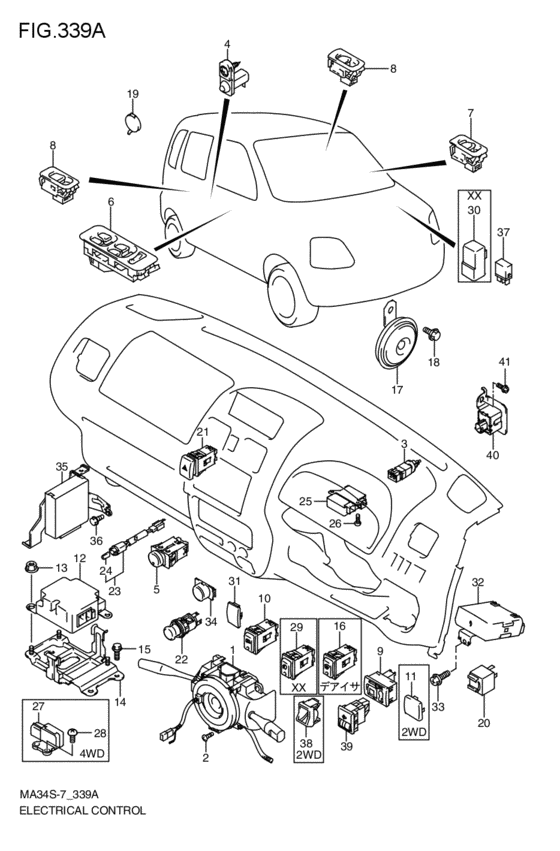

electrical control (2009-06-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- XX
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37400-82H00-000 SWITCH ASSY,COMB2009-06-01~ |
37400-82H00-000 |
US $432.96 |
||
|
2
|
2
02112-0512A-000 SCREW2009-06-01~ |
02112-0512A-000 |
from US $0.80 |
||
|
3
|
3
37740-75H10-000 SWITCH ASSY,STOP LAMP2009-06-01~ |
37740-75H10-000 |
US $16.18 |
||
| replacements | |||||
|
3
|
3
37741-75H10-000 Switch Assy,stop Lamp2009-06-01~ |
37741-75H10-000 |
from US $16.18 |
||
|
3
|
3
37742-75H10-000 Bush,stop Lamp Sw2009-06-01~ |
37742-75H10-000 |
from US $4.03 |
||
|
4
|
4
37670-76G10-000 SWITCH ASSY,DOOR2009-06-01~ |
37670-76G10-000 |
US $11.37 |
||
|
5
|
5
37860-70H00-000 SWITCH ASSY,RR DEFOGGER2WD; 2009-06-01~ |
37860-70H00-000 |
US $50.05 |
||
|
6
|
6
37990-84F20-R8R SWITCH ASSY,P/W MASTERブラウン; 2009-06-01~ |
37990-84F20-R8R |
US $323.84 |
||
|
7
|
7
37995-75F00-R8R SWITCH ASSY,P/W SUBサブ スイツチ,ブラウン; 2009-06-01~ |
37995-75F00-R8R |
US $65.87 |
||
|
8
|
8
37995-75F00-R8R SWITCH ASSY,P/W SUBリヤ スイツチ,ブラウン; 2009-06-01~ |
37995-75F00-R8R |
US $65.87 |
||
|
9
|
9
37950-75F10-000 SWITCH ASSY,MIRRORXX; 2009-06-01~ |
37950-75F10-000 |
US $41.95 |
||
|
12
|
12
38910-78F30-000 CONTROLLER ASSY,A/B2009-06-01~ |
38910-78F30-000 |
US $897.60 |
||
|
13
|
13
09159-06076-000 NUT2009-06-01~ |
09159-06076-000 |
from US $0.99 |
||
|
14
|
14
38915-78F00-000
BRACKET,A/B CONT
2009-06-01~ |
38915-78F00-000 |
— | ||
|
15
|
15
09115-06004-000 BOLT(6X16)2009-06-01~ |
09115-06004-000 |
US $12.50 |
||
|
17
|
17
38500-82H10-000
Horn assy
2009-06-01~ |
38500-82H10-000 |
— | ||
| replacement | |||||
|
17
|
17
38500-82H11-000 HORN ASSY2009-06-01~ |
38500-82H11-000 |
US $62.93 |
||
|
18
|
18
09115-08001-000 BOLT(8X18)2009-06-01~ |
09115-08001-000 |
from US $1.01 |
||
|
19
|
19
39238-76F00-R8R CAP,SOCKET HOLEブラウン; 2009-06-01~ |
39238-76F00-R8R |
US $2.80 |
||
|
20
|
20
38610-84F00-000 RELAY,TURN SIGNAL&4WAY2009-06-01~ |
38610-84F00-000 |
from US $48 |
||
|
21
|
21
37430-84G00-000 SWITCH ASSY,HAZARD WARNING2009-06-01~ |
37430-84G00-000 |
US $34.78 |
||
|
22
|
22
39410-82H00-000
Socket assy
2009-06-01~ |
39410-82H00-000 |
— | ||
| replacement | |||||
|
22
|
22
39410-82H01-000 SOCKET ASSY2009-06-01~ |
39410-82H01-000 |
US $17.44 |
||
|
23
|
23
36550-60E00-000 LAMP ASSY,ASHTRAY ILLUM2009-06-01~ |
36550-60E00-000 |
from US $15.05 |
||
|
24
|
24
09471-12091-000 BULB(12V1.4W G30)2009-06-01~ |
09471-12091-000 |
from US $3.08 |
||
|
25
|
25
38720-70H02-000 CONTROLLER ASSY,EPS2009-06-01~ |
38720-70H02-000 |
US $1,616 |
||
|
26
|
26
02142-0516B-000 SCREW2009-06-01~ |
02142-0516B-000 |
from US $0.96 |
||
|
29
|
29
37270-81J10-000 SWITCH ASSY,FR FOGXX; 2009-06-01~ |
37270-81J10-000 |
US $50.05 |
||
|
30
|
30
38860-72G00-000 RELAY ASSYRelay, air con XX; 2009-06-01~ |
38860-72G00-000 |
from US $28.82 |
||
|
31
|
31
37285-75F10-000 CAP,OPTION SW HOLE2009-06-01~ |
37285-75F10-000 |
from US $1.94 |
||
|
32
|
32
36770-78F00-000
コントローラアッシ,ボディエレクトリック
2009-06-01~ |
36770-78F00-000 |
— | ||
| replacement | |||||
|
32
|
32
36770-78F01-000
New Genuine Part
2009-06-01~ |
36770-78F01-000 |
— | ||
|
33
|
33
02162-0612A-000 SCREWBolt, bracket 2009-06-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
34
|
34
37285-54G00-000 CAP,OPTION SW HOLE2WD; 2009-06-01~ |
37285-54G00-000 |
from US $1.96 |
||
|
35
|
35
38880-78FP1-000 CONTROLLER ASSY,AT2WD; 2009-06-01~ |
38880-78FP1-000 |
US $950.40 |
||
|
36
|
36
02162-0612A-000 SCREWBolt, bracket 2009-06-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
37
|
37
38860-76F01-000 RELAY ASSYRelay, starting motor AT リレー; 2009-06-01~ |
38860-76F01-000 |
from US $28.80 |
||
|
38
|
38
37285-78F00-000 CASE,COIN2WD; 2009-06-01~ |
37285-78F00-000 |
US $3.97 |
||
|
39
|
39
35180-81J10-000 SWITCH ASSY,HEADLAMP LEVELING2009-06-01~ |
35180-81J10-000 |
US $61.46 |
||
|
40
|
40
38930-78F00-000 SENSOR ASSY,FORWARD2009-06-01~ |
38930-78F00-000 |
US $129.54 |
||
|
41
|
41
02162-0612A-000 SCREWBolt, bracket 2009-06-01~ |
02162-0612A-000 |
from US $0.79 |
||
