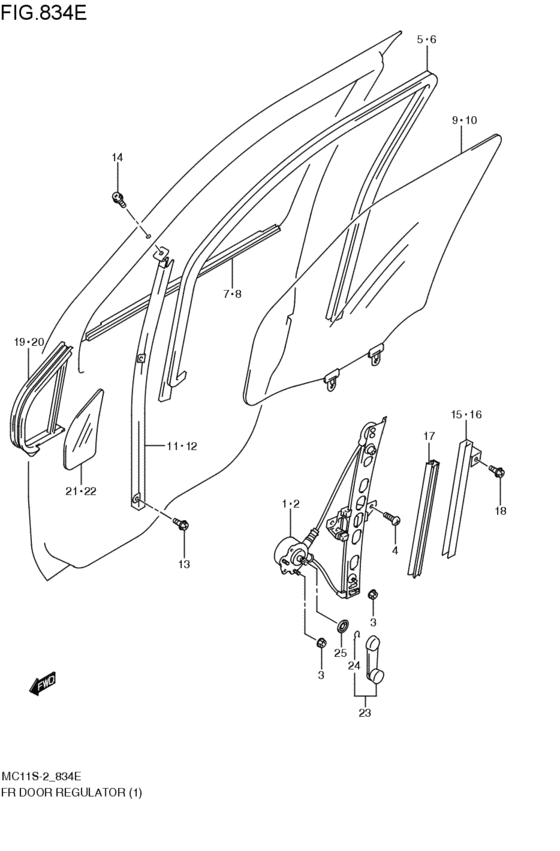

front door regulator (FG; 1999-10-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- FGST
- number of the gears
- 3AT
- body
- F
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83410-76F00-000 REGULATOR ASSY,FR WINDOW,RFG; 1999-10-01~ |
83410-76F00-000 |
US $103.04 |
||
|
2
|
2
83440-76F00-000 REGULATOR ASSY,FR WINDOW,LFG; 1999-10-01~ |
83440-76F00-000 |
US $103.04 |
||
|
3
|
3
08316-10063-000
Nut
FG; 1999-10-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-1006B-000 NUTFG; 1999-10-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
4
|
4
02112-76103-000
Screw
FG; 1999-10-01~ |
02112-76103-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-7610A-000 SCREWFG; 1999-10-01~ |
02112-7610A-000 |
from US $3.59 |
||
|
5
|
5
83661-76F00-000
ラン,フロントドアガラス,ライト
FG; 1999-10-01~ |
83661-76F00-000 |
— | ||
|
6
|
6
83665-76F00-000
ラン,フロントドアガラス,レフト
FG; 1999-10-01~ |
83665-76F00-000 |
— | ||
|
7
|
7
83811-76F00-000
ウェザストリップ,フロントドアアウト,ライト
FG; 1999-10-01~ |
83811-76F00-000 |
— | ||
| replacement | |||||
|
7
|
7
83811-76F01-000 WEATHERSTRIP,FR DR OUT,RFG; 1999-10-01~ |
83811-76F01-000 |
US $42.32 |
||
|
8
|
8
83821-76F00-000
ウェザストリップ,フロントドアアウト,レフト
FG; 1999-10-01~ |
83821-76F00-000 |
— | ||
| replacement | |||||
|
8
|
8
83821-76F01-000 WEATHERSTRIP,FR DR OUT,LFG; 1999-10-01~ |
83821-76F01-000 |
US $42.32 |
||
|
9
|
9
84531-76810-000
ガラス,ドアウィンド,ライト(グリーン)
グリーン,CENTRAL; FG; 1999-10-01~ |
84531-76810-000 |
— | ||
|
10
|
10
84536-76810-000
ガラス,ドアウィンド,レフト(グリーン)
グリーン,CENTRAL; FG; 1999-10-01~ |
84536-76810-000 |
— | ||
|
11
|
11
81701-76F00-000 SASH ASSY,FR DOOR FRONT,RFG; 1999-10-01~ |
81701-76F00-000 |
US $38.27 |
||
|
12
|
12
81702-76F00-000 SASH ASSY,FR DOOR FRONT,LFG; 1999-10-01~ |
81702-76F00-000 |
US $38.27 |
||
|
13
|
13
02162-06123-000
Bolt (6x12)
FG; 1999-10-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
02162-0612B-000 SCREWBolt FG; 1999-10-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
13
|
13
02162-0612A-000 SCREWBolt, bracket FG; 1999-10-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
14
|
14
03121-04123-000
スクリュ
FG; 1999-10-01~ |
03121-04123-000 |
— | ||
| replacement | |||||
|
14
|
14
03121-0412A-000 SCREWFG; 1999-10-01~ |
03121-0412A-000 |
US $7.70 |
||
|
15
|
15
81730-84F00-000 SASH,FR DOOR REAR,RFG; 1999-10-01~ |
81730-84F00-000 |
US $31.28 |
||
|
16
|
16
81740-84F00-000 SASH,FR DOOR REAR,LFG; 1999-10-01~ |
81740-84F00-000 |
US $31.28 |
||
|
17
|
17
83662-76F00-000 RUN,RR DOOR GLASS RRFG; 1999-10-01~ |
83662-76F00-000 |
from US $7.34 |
||
|
18
|
18
02162-06123-000
Bolt (6x12)
FG; 1999-10-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
02162-0612B-000 SCREWBolt FG; 1999-10-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
18
|
18
02162-0612A-000 SCREWBolt, bracket FG; 1999-10-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
19
|
19
84614-76F00-000
ウェザストリップ,フロントドアフロント,ライト
FG; 1999-10-01~ |
84614-76F00-000 |
— | ||
|
20
|
20
84615-76F00-000
ウェザストリップ,フロントドアフロント,レフト
FG; 1999-10-01~ |
84615-76F00-000 |
— | ||
|
21
|
21
84521-76F00-000
ガラス,フロントドアウィンドフロント,ライト
CENTRAL; FG; 1999-10-01~ |
84521-76F00-000 |
— | ||
| replacement | |||||
|
21
|
21
84521-76F10-000 GLASS,FR DR WDO FR,RCENTRAL; FG; 1999-10-01~ |
84521-76F10-000 |
US $79.49 |
||
|
22
|
22
84526-76F00-000
ガラス,フロントドアウィンドフロント,レフト
CENTRAL; FG; 1999-10-01~ |
84526-76F00-000 |
— | ||
| replacement | |||||
|
22
|
22
84526-76F10-000 GLASS,FR DR WDO FR,LCENTRAL; FG; 1999-10-01~ |
84526-76F10-000 |
US $79.49 |
||
|
23
|
23
82960-60G00-T01 HANDLE,DR WINDOW RGLTR(GRAY)グレ-; FG; 1999-10-01~ |
82960-60G00-T01 |
from US $12.13 |
||
|
24
|
24
78463-78000-000 SNAPFG; 1999-10-01~ |
78463-78000-000 |
from US $1.24 |
||
|
25
|
25
82972-70B00-T01 ESCUTCHEON,WINDOW RGLTR HDL(GRグレ-; FG; 1999-10-01~ |
82972-70B00-T01 |
from US $1.82 |
||
