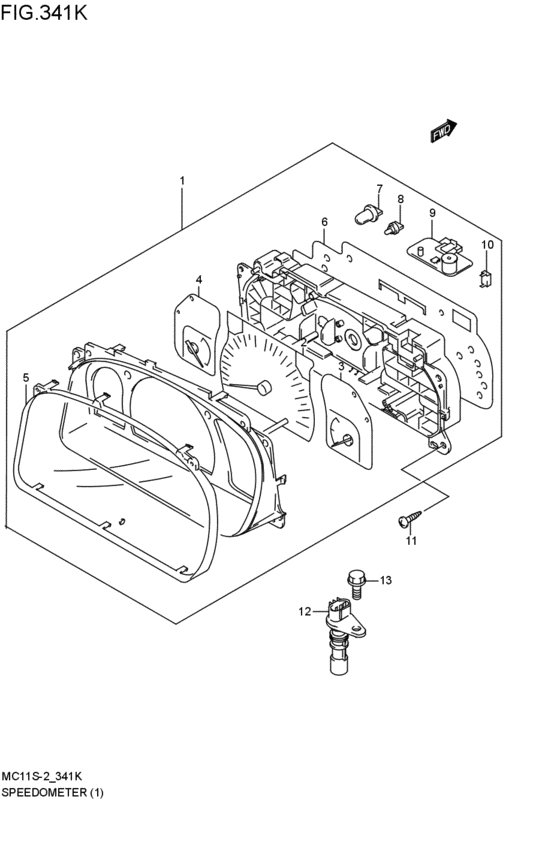

speed meter (FG; 1999-10-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- FGST
- number of the gears
- 3AT
- body
- F
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-76GG0-000
スピードメータアッシ,コンビネーション
ABSシヨウ; FG:AT:ABS; 1999-10-01~ |
34100-76GG0-000 |
— | ||
|
2
|
2
34120-76G00-000
ボディアッシ,スピードメータ
FG; 1999-10-01~ |
34120-76G00-000 |
— | ||
|
3
|
3
34320-76G10-000 BODY ASSY,FUEL METERFG; 1999-10-01~ |
34320-76G10-000 |
from US $48.56 |
||
|
4
|
4
34420-76G50-000
ボディアッシ,テンパレチャメータ
FG:AT; 1999-10-01~ |
34420-76G50-000 |
— | ||
|
5
|
5
34112-76G00-000 GLASS,METER WINDOWFG; 1999-10-01~ |
34112-76G00-000 |
from US $18.50 |
||
|
6
|
6
34152-76G30-000 PLATE,PRINTEDFG; 1999-10-01~ |
34152-76G30-000 |
US $69.92 |
||
|
7
|
7
34171-70G00-000 BULB,14V 3.4W G20FG; 1999-10-01~ |
34171-70G00-000 |
from US $4.19 |
||
|
8
|
8
34171-70G10-000 BULB,14V 1.4WFG; 1999-10-01~ |
34171-70G10-000 |
from US $2.59 |
||
|
9
|
9
34191-65D00-000 BUZZER ASSY,WARNINGFG; 1999-10-01~ |
34191-65D00-000 |
from US $34.74 |
||
|
10
|
10
34155-50E10-000 CIRCUIT,ABS WARNINGABSシヨウ,ABSウォーニング; FG:ABS; 1999-10-01~ |
34155-50E10-000 |
US $40.48 |
||
|
11
|
11
03541-05203-000
Screw
FG; 1999-10-01~ |
03541-05203-000 |
— | ||
| replacement | |||||
|
11
|
11
03541-0520A-000 SCREWFG; 1999-10-01~ |
03541-0520A-000 |
from US $0.76 |
||
|
12
|
12
34960-76G00-000 SENSOR ASSY,SPEEDFG; 1999-10-01~ |
34960-76G00-000 |
from US $98.17 |
||
|
13
|
13
02162-06163-000
Screw
FG; 1999-10-01~ |
02162-06163-000 |
— | ||
| replacement | |||||
|
13
|
13
02162-0616B-000 SCREWBolt, adjust FG; 1999-10-01~ |
02162-0616B-000 |
from US $0.96 |
||
