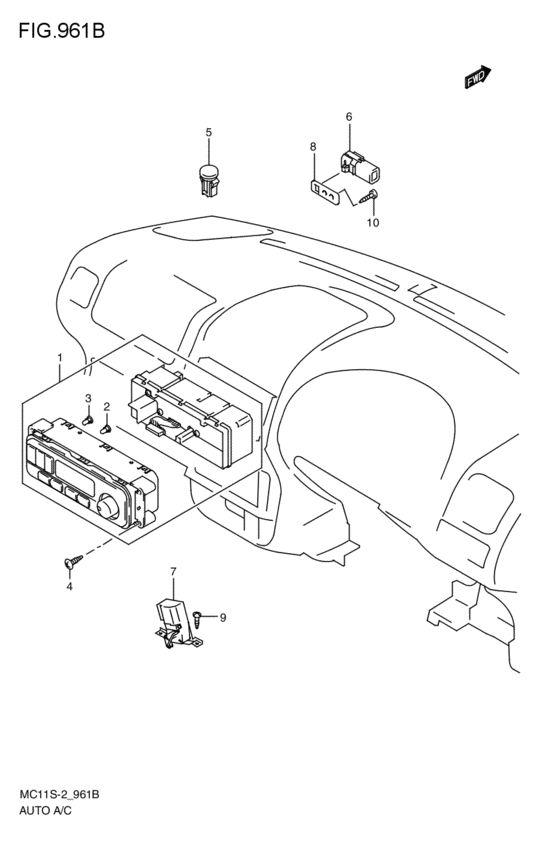

automatic air-conditioner (FRL,FRG; 1999-10-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE

Year
1999 - 2011
Sales region
Japan
Engine
K6A
supercharge
TURBO
drive
2WD
transmission
MT
Number of doors
5DR
grade
RRLTD
number of the gears
5MT
body
F
air bag
AB
abs
ABS

Difficulties in parts search?

Parts list
automatic air-conditioner

Difficulties in parts search?

automatic air-conditioner
Description OEM Part # Price
1
1
95610-76G10-000
パネルユニット,オートエアコン

FRL,FRG; 1999-10-01~

95610-76G10-000

replacement
1
1

95610-76G12-5PK

PANEL UNIT,AUTO A/C

FRL,FRG; 1999-10-01~

95610-76G12-5PK

US $707.52

2
2

95614-64G20-000

BULB,12V 100MA

FRL,FRG; 1999-10-01~

95614-64G20-000

US $11.74

3
3

95615-64G20-000

BULB,12V 80MA

FRL,FRG; 1999-10-01~

95615-64G20-000

US $12.14

4
4
03541-05123-000
Screw

FRL,FRG; 1999-10-01~

03541-05123-000

replacement
4
4

03541-0512B-000

SCREW

FRL,FRG; 1999-10-01~

03541-0512B-000

from US $0.76

5
5

95642-64G20-000

SENSOR,SUN LIGHT

DENSO; FRL,FRG; 1999-10-01~

95642-64G20-000

US $39.62

6
6

95643-65D00-000

SENSOR,OUTSIDE TEMP

FRL,FRG; 1999-10-01~

95643-65D00-000

from US $19.20

7
7
95652-76G00-000
Actuator

FRL,FRG; 1999-10-01~

95652-76G00-000

replacement
7
7

95652-76G01-000

ACTUATOR,F/R

FRL,FRG; 1999-10-01~

95652-76G01-000

US $88.32

8
8

95671-76G00-000

BRACKET,OUT DR TEMP SNSR

Bracket, out door temperature sensor

FRL,FRG; 1999-10-01~

95671-76G00-000

US $3.02

9
9
03541-04123-000
Screw

FRL,FRG; 1999-10-01~

03541-04123-000

replacements
9
9

03541-0412B-000

SCREW

Screw, plate

FRL,FRG; 1999-10-01~

03541-0412B-000

from US $0.80

9
9

03541-0412A-000

SCREW

Screw, speedometer

FRL,FRG; 1999-10-01~

03541-0412A-000

from US $0.88

10
10
03541-05123-000
Screw

FRL,FRG; 1999-10-01~

03541-05123-000

replacement
10
10

03541-0512B-000

SCREW

FRL,FRG; 1999-10-01~

03541-0512B-000

from US $0.76
