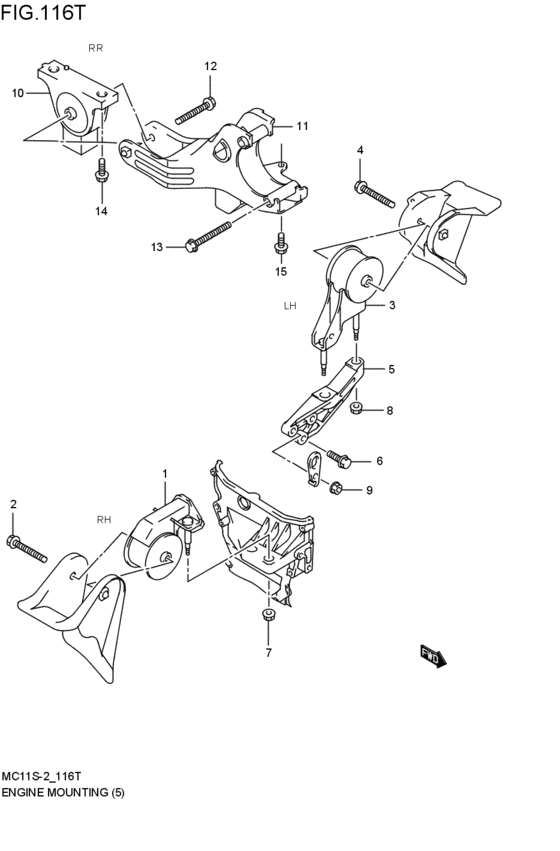

engine mounting (K6A:2WD:MT; 1999-10-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- FXST
- number of the gears
- 5MT
- body
- F
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-76G20-000
Mounting, engine rh
K6A:2WD:MT:4V; 1999-10-01~ |
11610-76G20-000 |
— | ||
| replacement | |||||
|
1
|
1
11610-83H00-000 MOUNTING,ENG,RK6A:2WD:MT:4V; 1999-10-01~ |
11610-83H00-000 |
from US $140.67 |
||
|
2
|
2
09113-10004-000 BOLT(10X85)K6A:2WD:MT; 1999-10-01~ |
09113-10004-000 |
US $21.70 |
||
|
3
|
3
11620-76G00-000
マウンチング,エンジン,レフト
K6A:2WD:MT; 1999-10-01~ |
11620-76G00-000 |
— | ||
| replacement | |||||
|
3
|
3
11620-76G03-000 MOUNTING,ENG,LK6A:2WD:MT; 1999-10-01~ |
11620-76G03-000 |
US $208 |
||
|
4
|
4
09113-10004-000 BOLT(10X85)K6A:2WD:MT; 1999-10-01~ |
09113-10004-000 |
US $21.70 |
||
|
5
|
5
11651-76G00-000 BRACKET,ENG MTG,LK6A:2WD:MT; 1999-10-01~ |
11651-76G00-000 |
US $71.76 |
||
|
6
|
6
01550-10353-000
Bolt
K6A:2WD:MT; 1999-10-01~ |
01550-10353-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-1035A-000 BoltBolt, fr fork upper K6A:2WD:MT; 1999-10-01~ |
01550-1035A-000 |
from US $5.68 |
||
|
7
|
7
08316-10103-000
Nut
K6A:2WD:MT; 1999-10-01~ |
08316-10103-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1010B-000 NUTK6A:2WD:MT; 1999-10-01~ |
08316-1010B-000 |
from US $0.80 |
||
|
8
|
8
08316-10103-000
Nut
K6A:2WD:MT; 1999-10-01~ |
08316-10103-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1010B-000 NUTK6A:2WD:MT; 1999-10-01~ |
08316-1010B-000 |
from US $0.80 |
||
|
9
|
9
08316-10103-000
Nut
K6A:2WD:MT; 1999-10-01~ |
08316-10103-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1010B-000 NUTK6A:2WD:MT; 1999-10-01~ |
08316-1010B-000 |
from US $0.80 |
||
|
10
|
10
11710-76G30-000 MOUNTING,ENG RRK6A:2WD:MT; 1999-10-01~ |
11710-76G30-000 |
US $148 |
||
|
11
|
11
11740-76G00-000
ブラケット,エンジンマウンチング,リヤ
K6A:2WD:MT:4V; 1999-10-01~ |
11740-76G00-000 |
— | ||
|
12
|
12
09113-10003-000 BOLT(10X75)K6A:2WD:MT; 1999-10-01~ |
09113-10003-000 |
US $19.50 |
||
|
13
|
13
01550-10853-000
Bolt
K6A:2WD:MT; 1999-10-01~ |
01550-10853-000 |
— | ||
| replacement | |||||
|
13
|
13
01550-1085A-000 BoltK6A:2WD:MT; 1999-10-01~ |
01550-1085A-000 |
US $1.76 |
||
|
14
|
14
01551-10353-000
ボルト
K6A:2WD:MT; 1999-10-01~ |
01551-10353-000 |
— | ||
| replacement | |||||
|
14
|
14
01551-1035A-000 BoltK6A:2WD:MT; 1999-10-01~ |
01551-1035A-000 |
US $19.50 |
||
