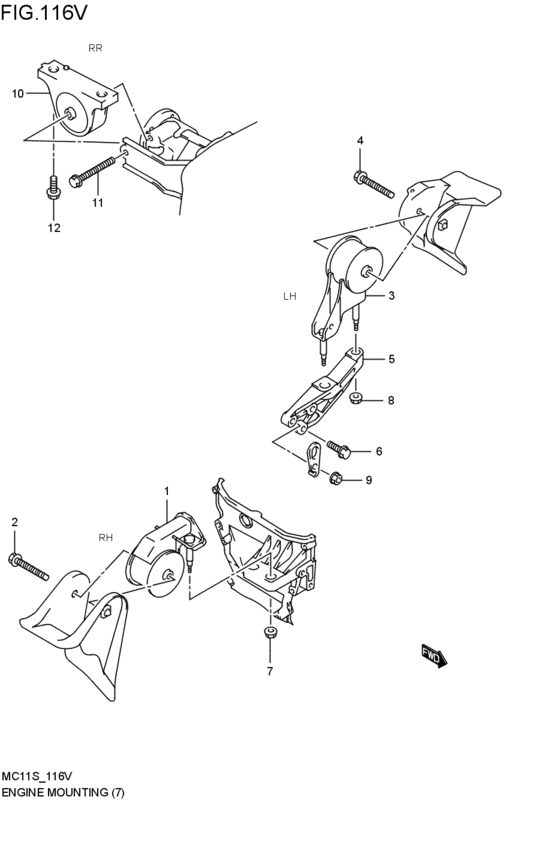

engine mounting (K6A:4WD:MT; 1998-09-01~1999-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- 4V
- drive
- 4WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- FX
- number of the gears
- 5MT
- body
- MC21S
- air bag
- AB-N
- abs
- ABS-N
- ゲンテイ
- NORMAL
- vvt
- VVT-N
- selector
- FLOOR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
09113-10004-000 BOLT(10X85)K6A:4WD:MT; 1998-09-01~1999-09-01 |
09113-10004-000 |
US $21.70 |
||
|
3
|
3
11620-76G00-000
マウンチング,エンジン,レフト
K6A:4WD:MT; 1998-09-01~1999-09-01 |
11620-76G00-000 |
— | ||
| replacement | |||||
|
3
|
3
11620-76G03-000 MOUNTING,ENG,LK6A:4WD:MT; 1998-09-01~1999-09-01 |
11620-76G03-000 |
US $208 |
||
|
4
|
4
09113-10004-000 BOLT(10X85)K6A:4WD:MT; 1998-09-01~1999-09-01 |
09113-10004-000 |
US $21.70 |
||
|
5
|
5
11651-76G00-000 BRACKET,ENG MTG,LK6A:4WD:MT; 1998-09-01~1999-09-01 |
11651-76G00-000 |
US $71.76 |
||
|
6
|
6
01550-10353-000
Bolt
K6A:4WD:MT; 1998-09-01~1999-09-01 |
01550-10353-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-1035A-000 BoltBolt, fr fork upper K6A:4WD:MT; 1998-09-01~1999-09-01 |
01550-1035A-000 |
from US $5.68 |
||
|
7
|
7
08316-10103-000
Nut
K6A:4WD:MT; 1998-09-01~1999-09-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1010B-000 NUTK6A:4WD:MT; 1998-09-01~1999-09-01 |
08316-1010B-000 |
from US $0.80 |
||
|
8
|
8
08316-10103-000
Nut
K6A:4WD:MT; 1998-09-01~1999-09-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1010B-000 NUTK6A:4WD:MT; 1998-09-01~1999-09-01 |
08316-1010B-000 |
from US $0.80 |
||
|
9
|
9
08316-10103-000
Nut
K6A:4WD:MT; 1998-09-01~1999-09-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1010B-000 NUTK6A:4WD:MT; 1998-09-01~1999-09-01 |
08316-1010B-000 |
from US $0.80 |
||
|
10
|
10
11710-76G00-000
マウンチング,エンジン,リヤ
K6A:4WD:MT; 1998-09-01~1999-09-01 |
11710-76G00-000 |
— | ||
| replacement | |||||
|
10
|
10
11710-76G01-000 MOUNTING,ENG RRK6A:4WD:MT; 1998-09-01~1999-09-01 |
11710-76G01-000 |
US $132 |
||
|
11
|
11
09113-10003-000 BOLT(10X75)K6A:4WD:MT; 1998-09-01~1999-09-01 |
09113-10003-000 |
US $19.50 |
||
|
12
|
12
01551-10303-000
Bolt
K6A:4WD:MT; 1998-09-01~1999-05-01 |
01551-10303-000 |
— | ||
| replacement | |||||
|
12
|
12
01551-1030A-000 BoltK6A:4WD:MT; 1998-09-01~1999-05-01 |
01551-1030A-000 |
US $19.50 |
||
|
12
|
12
01551-10353-000
ボルト
K6A:4WD:MT; 1999-05-01~1999-09-01 |
01551-10353-000 |
— | ||
| replacement | |||||
|
12
|
12
01551-1035A-000 BoltK6A:4WD:MT; 1999-05-01~1999-09-01 |
01551-1035A-000 |
US $19.50 |
||
