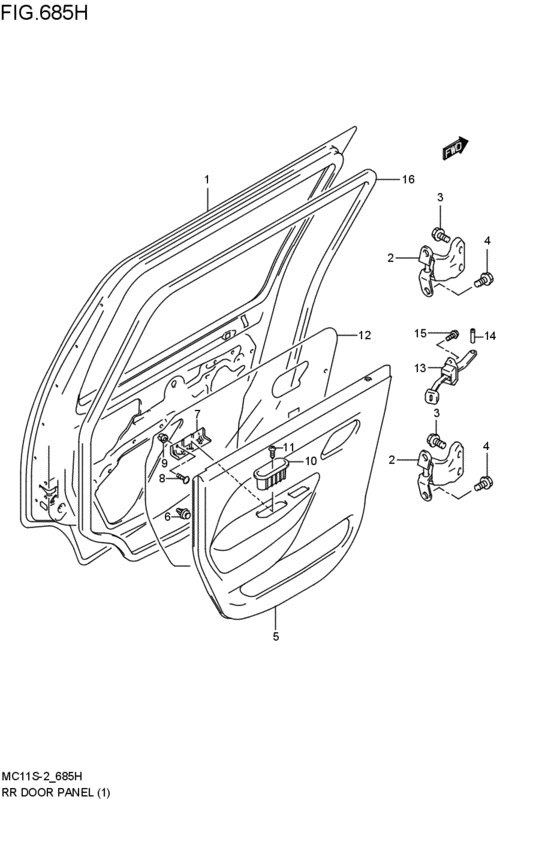

rear door panel (4DR; 1999-10-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 4DR
- grade
- RRST
- number of the gears
- 4AT
- body
- C
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68004-76F01-000 PANEL ASSY,REAR DOOR,L4DR; 1999-10-01~ |
68004-76F01-000 |
US $528 |
||
|
2
|
2
69410-76F00-000 HINGE,RR DOOR4DR; 1999-10-01~ |
69410-76F00-000 |
from US $30.53 |
||
|
3
|
3
01551-08203-000
Bolt
4DR; 1999-10-01~ |
01551-08203-000 |
— | ||
| replacement | |||||
|
3
|
3
01551-0820A-000 Bolt4DR; 1999-10-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
4
|
4
01551-08203-000
Bolt
4DR; 1999-10-01~ |
01551-08203-000 |
— | ||
| replacement | |||||
|
4
|
4
01551-0820A-000 Bolt4DR; 1999-10-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
5
|
5
83740-76F10-CK9
トリム,リヤドア,レフト
ブラック/グレー; 4DR:RR; 1999-10-01~ |
83740-76F10-CK9 |
— | ||
| replacement | |||||
|
5
|
5
83740-76F11-CK9
トリム,リヤドア,レフト
ブラック/グレー; 4DR:RR; 1999-10-01~ |
83740-76F11-CK9 |
— | ||
|
6
|
6
09409-08320-000 CLIP4DR; 1999-10-01~ |
09409-08320-000 |
from US $1.15 |
||
|
7
|
7
83751-70G50-000
Bracket, door trim
4DR; 1999-10-01~ |
83751-70G50-000 |
— | ||
| replacement | |||||
|
7
|
7
83751-70G5V-000 BRACKET,DR TRIM4DR; 1999-10-01~ |
83751-70G5V-000 |
US $6.73 |
||
|
8
|
8
03241-06123-000
Screw
4DR; 1999-10-01~ |
03241-06123-000 |
— | ||
| replacement | |||||
|
8
|
8
03241-0612A-000 SCREW4DR; 1999-10-01~ |
03241-0612A-000 |
US $0.80 |
||
|
9
|
9
09148-06007-000 NUT4DR; 1999-10-01~ |
09148-06007-000 |
from US $0.91 |
||
|
10
|
10
83799-70B20-T01 HANDLE,DOOR TRIMグレ-; 4DR; 1999-10-01~ |
83799-70B20-T01 |
from US $9.43 |
||
|
11
|
11
03211-05123-000
Screw
4DR; 1999-10-01~ |
03211-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
03211-0512A-000 SCREW4DR; 1999-10-01~ |
03211-0512A-000 |
from US $0.45 |
||
|
12
|
12
83911-60X51-000
Cover, door sealing (600x1200)
4DR; 1999-10-01~ |
83911-60X51-000 |
— | ||
| replacement | |||||
|
12
|
12
83911-60X52-000 COVER,DR SEALING4DR; 1999-10-01~ |
83911-60X52-000 |
US $6.06 |
||
|
13
|
13
81830-65D00-000 STOP,REAR DOOR OPEN4DR; 1999-10-01~ |
81830-65D00-000 |
from US $21.06 |
||
|
14
|
14
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY4DR; 1999-10-01~ |
81831-70B00-000 |
from US $1.60 |
||
|
15
|
15
09122-86004-000 SCREW(6X20)4DR; 1999-10-01~ |
09122-86004-000 |
US $11.80 |
||
|
16
|
16
84671-76F00-000 WEATHERSTRIP,RR DR OPNG,L4DR; 1999-10-01~ |
84671-76F00-000 |
US $87.22 |
||
