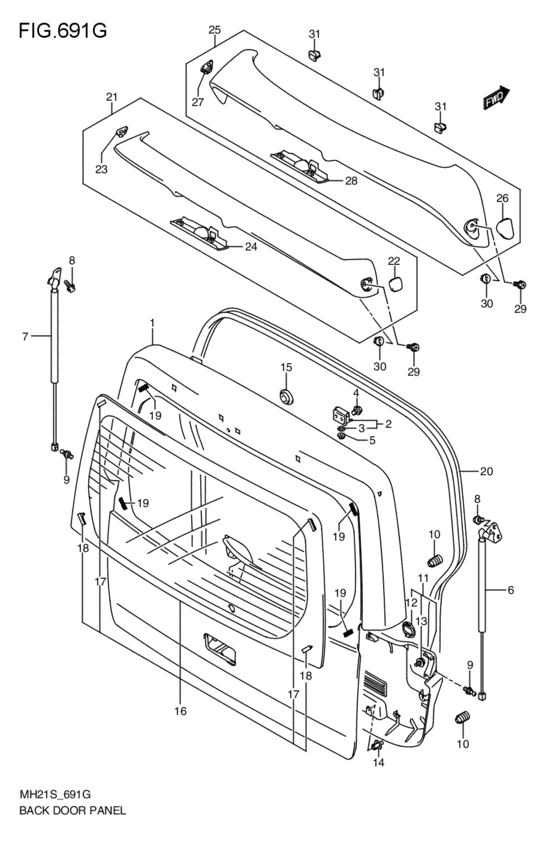

back door panel (2003-09-01~2004-03-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- FB
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- SAB-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-58J00-000
パネルアッシ,バックドア
FA,FB,FBM,FC; 2003-09-01~2004-03-01 |
69100-58J00-000 |
— | ||
| replacements | |||||
|
1
|
1
69100-58J02-000
パネルアッシ,バックドア
FA,FB,FBM,FC; 2003-09-01~2004-03-01 |
69100-58J02-000 |
— | ||
|
1
|
1
69510-58J10-000 HINGE,BACK DOORFA,FB,FBM,FC; 2003-09-01~2004-03-01 |
69510-58J10-000 |
US $22.82 |
||
|
2
|
2
69510-58J00-000 HINGE,BACK DOOR2003-09-01~2004-03-01 |
69510-58J00-000 |
US $25.39 |
||
|
3
|
3
69571-76G00-000 PACKING,BACK DR HNG2003-09-01~2004-03-01 |
69571-76G00-000 |
US $2.24 |
||
|
4
|
4
09111-06086-000 BOLT(6X12)2003-09-01~2004-03-01 |
09111-06086-000 |
US $12.50 |
||
|
5
|
5
08361-25083-000
Nut
2003-09-01~2004-03-01 |
08361-25083-000 |
— | ||
| replacement | |||||
|
5
|
5
08361-2508A-000 NUT2003-09-01~2004-03-01 |
08361-2508A-000 |
from US $0.96 |
||
|
6
|
6
81850-58J00-000
バランサ,バックドア,ライト
2003-09-01~2004-03-01 |
81850-58J00-000 |
— | ||
| replacement | |||||
|
6
|
6
81850-58J10-000
バランサ,バックドア,ライト
2003-09-01~2004-03-01 |
81850-58J10-000 |
— | ||
|
7
|
7
81860-58J00-000
バランサ,バックドア,レフト
2003-09-01~2004-03-01 |
81860-58J00-000 |
— | ||
| replacement | |||||
|
7
|
7
81860-58J10-000
バランサ,バックドア,レフト
2003-09-01~2004-03-01 |
81860-58J10-000 |
— | ||
|
8
|
8
01551-08123-000
ボルト
2003-09-01~2004-03-01 |
01551-08123-000 |
— | ||
| replacement | |||||
|
8
|
8
01551-0812A-000 Bolt2003-09-01~2004-03-01 |
01551-0812A-000 |
US $13.20 |
||
|
9
|
9
81871-58J00-000
ボールスタッド,バックドアバランサ
2003-09-01~2004-03-01 |
81871-58J00-000 |
— | ||
| replacements | |||||
|
9
|
9
81871-79J00-000
BALLSTUD,BACK DR BALANCER
2003-09-01~2004-03-01 |
81871-79J00-000 |
— | ||
|
9
|
9
81871-79J01-000 Ballstud,back Door Balancer2003-09-01~2004-03-01 |
81871-79J01-000 |
US $5.56 |
||
|
10
|
10
82683-60B10-000 CUSHION2003-09-01~2004-03-01 |
82683-60B10-000 |
US $1.92 |
||
|
11
|
11
83770-58J00-P4Z
トリム,バックドア(グレー)
グレ-; 2003-09-01~2004-03-01 |
83770-58J00-P4Z |
— | ||
|
12
|
12
83772-75H00-P4Z CAP,BACK DR TRIMグレ-; 2003-09-01~2004-03-01 |
83772-75H00-P4Z |
US $5.37 |
||
|
13
|
13
09409-10312-000 CLIP2003-09-01~2004-03-01 |
09409-10312-000 |
US $1.92 |
||
|
14
|
14
09409-07308-P4Z CLIP(GRAY)グレ-; 2003-09-01~2004-03-01 |
09409-07308-P4Z |
US $1.76 |
||
|
15
|
15
09250-20023-000 CAP(OD:25.8)2003-09-01~2004-03-01 |
09250-20023-000 |
US $10.30 |
||
|
16
|
16
84570-58J10-000 GLASS,BACK DR WINDOWASAHI; FB,FBM,FBS,FC,FD,FR,FRS; 2003-09-01~2004-03-01 |
84570-58J10-000 |
US $356.96 |
||
|
17
|
17
84513-76F00-000 MALE,GLASS FASTENER NO.22003-09-01~2004-03-01 |
84513-76F00-000 |
US $1.60 |
||
|
18
|
18
84572-74G00-000 MALE,GLASS FASTENER NO.12003-09-01~2004-03-01 |
84572-74G00-000 |
US $3.79 |
||
|
19
|
19
84515-65D00-000 FEMALE,GLASS FASTENER NO.22003-09-01~2004-03-01 |
84515-65D00-000 |
from US $3.60 |
||
|
20
|
20
84681-58J00-000
ウェザストリップ,バックドアオープニング
2003-09-01~2004-03-01 |
84681-58J00-000 |
— | ||
