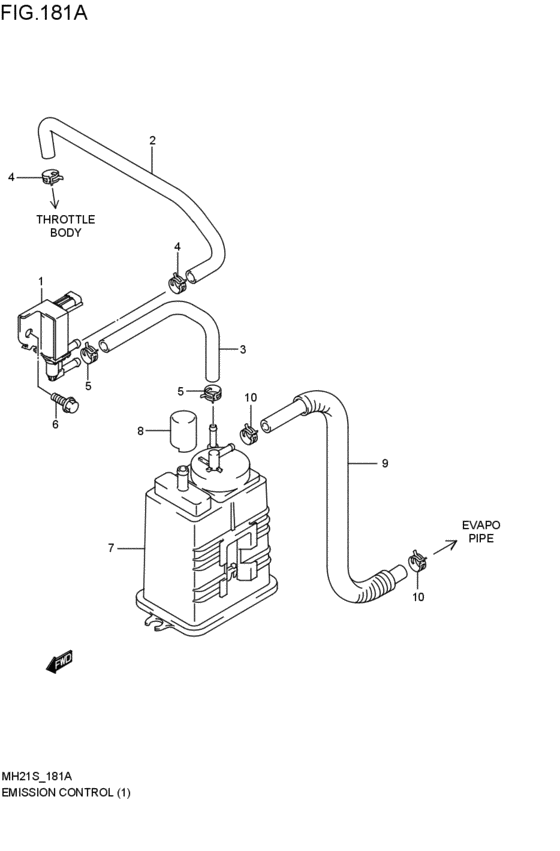

emission control (4V; 2003-09-01~2004-03-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- FB
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- SAB-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18117-81AB2-000 VALVE,CANISTER PURGE4V; 2003-09-01~2004-03-01 |
18117-81AB2-000 |
US $130.40 |
||
|
2
|
2
18564-83G02-000
ホース,バルブツースロットルボディ
4V; 2003-09-01~2004-03-01 |
18564-83G02-000 |
— | ||
| replacements | |||||
|
2
|
2
09401-11419-000 CLIP4V; 2003-09-01~2004-03-01 |
09401-11419-000 |
from US $1.42 |
||
|
2
|
2
18564-83G10-000 HOSE,VSV TO TB4V; 2003-09-01~2004-03-01 |
18564-83G10-000 |
US $10.05 |
||
|
3
|
3
18565-58J00-000
ホース,キャニスタツーバルブ
4V; 2003-09-01~2004-03-01 |
18565-58J00-000 |
— | ||
|
4
|
4
09401-10409-000 CLIP4V; 2003-09-01~2004-03-01 |
09401-10409-000 |
from US $1.28 |
||
|
5
|
5
09401-10409-000 CLIP4V; 2003-09-01~2004-03-01 |
09401-10409-000 |
from US $1.28 |
||
|
6
|
6
01550-06123-000
Bolt
4V; 2003-09-01~2004-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0612B-000 BoltBolt, clamp 4V; 2003-09-01~2004-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
6
|
6
01550-0612A-000 Bolt4V; 2003-09-01~2004-03-01 |
01550-0612A-000 |
from US $0.76 |
||
|
7
|
7
18560-58J01-000
キャニスタ
4V; 2003-09-01~2004-03-01 |
18560-58J01-000 |
— | ||
| replacements | |||||
|
7
|
7
18560-58J00-000
キャニスタ
4V; 2003-09-01~2004-03-01 |
18560-58J00-000 |
— | ||
|
7
|
7
18561-83G01-000 HOSE,CANISTER SUCTION4V; 2003-09-01~2004-03-01 |
18561-83G01-000 |
US $7.95 |
||
|
8
|
8
18571-65H20-000 CAP,CANISTER AIR4V; 2003-09-01~2004-03-01 |
18571-65H20-000 |
from US $1.53 |
||
|
9
|
9
18567-58J00-000
ホース,キャニスタ,インレット
4V; 2003-09-01~2004-03-01 |
18567-58J00-000 |
— | ||
| replacement | |||||
|
9
|
9
18567-58J01-000
ホース,キャニスタ,インレット
4V; 2003-09-01~2004-03-01 |
18567-58J01-000 |
— | ||
|
10
|
10
09401-11419-000 CLIP4V; 2003-09-01~2004-03-01 |
09401-11419-000 |
from US $1.42 |
||
