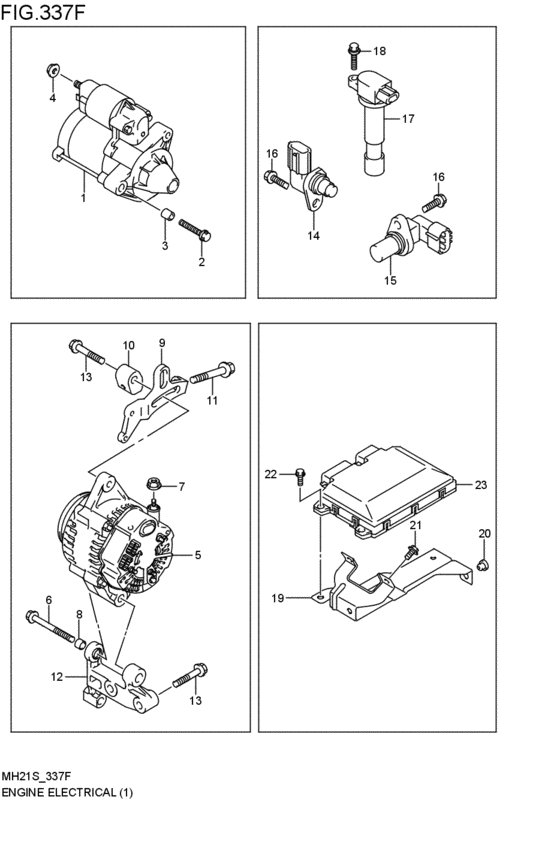

engine electrical (4V; 2003-09-01~2004-03-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- FB
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- SAB-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-75F02-000
Motor assy,starting
ミツビシ; 4V:AT; 2003-09-01~2004-03-01 |
31100-75F02-000 |
— | ||
| replacement | |||||
|
1
|
1
31100-75F03-000 MOTOR ASSY,STARTINGミツビシ; 4V:AT; 2003-09-01~2004-03-01 |
31100-75F03-000 |
US $499.84 |
||
|
2
|
2
01550-08403-000
Bolt
4V; 2003-09-01~2004-03-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0840B-000 Bolt4V; 2003-09-01~2004-03-01 |
01550-0840B-000 |
from US $1.12 |
||
|
2
|
2
01550-0840A-000 Bolt4V; 2003-09-01~2004-03-01 |
01550-0840A-000 |
from US $1.12 |
||
|
3
|
3
04211-11129-000 PIN4V; 2003-09-01~2004-03-01 |
04211-11129-000 |
from US $0.99 |
||
|
4
|
4
08316-10083-000
Nut
4V; 2003-09-01~2004-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1008B-000 NUT4V; 2003-09-01~2004-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
5
|
5
31400-58J10-000
ジェネレータアッシ
4V; 2003-09-01~2004-03-01 |
31400-58J10-000 |
— | ||
| replacement | |||||
|
5
|
5
31400-58J21-000
New Genuine Part
4V; 2003-09-01~2004-03-01 |
31400-58J21-000 |
— | ||
|
6
|
6
01550-10853-000
Bolt
4V; 2003-09-01~2004-03-01 |
01550-10853-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-1085A-000 Bolt4V; 2003-09-01~2004-03-01 |
01550-1085A-000 |
US $1.76 |
||
|
7
|
7
08316-10063-000
Nut
4V; 2003-09-01~2004-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1006B-000 NUT4V; 2003-09-01~2004-03-01 |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
11555-60G00-000
Bush, generator
4V; 2003-09-01~2004-03-01 |
11555-60G00-000 |
— | ||
| replacement | |||||
|
8
|
8
11555-60G01-000 BUSH4V; 2003-09-01~2004-03-01 |
11555-60G01-000 |
US $3.68 |
||
|
9
|
9
11561-84H00-000
Arm,gen belt adjusting
4V; 2003-09-01~2004-03-01 |
11561-84H00-000 |
— | ||
| replacement | |||||
|
9
|
9
11561-84H01-000 ARM,GENERATOR BELT ADJUST4V; 2003-09-01~2004-03-01 |
11561-84H01-000 |
US $15.79 |
||
|
10
|
10
11562-84H00-000 ADJUSTER,GENERATOR4V; 2003-09-01~2004-03-01 |
11562-84H00-000 |
US $31.20 |
||
|
11
|
11
11563-85K00-000 BOLT,GEN BELT ADJUSTING4V; 2003-09-01~2004-03-01 |
11563-85K00-000 |
US $2.43 |
||
|
12
|
12
11565-84H00-000 BRACKET,GENERATOR LOWER4V; 2003-09-01~2004-03-01 |
11565-84H00-000 |
US $41.95 |
||
|
13
|
13
01550-08403-000
Bolt
4V; 2003-09-01~2004-03-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0840B-000 Bolt4V; 2003-09-01~2004-03-01 |
01550-0840B-000 |
from US $1.12 |
||
|
13
|
13
01550-0840A-000 Bolt4V; 2003-09-01~2004-03-01 |
01550-0840A-000 |
from US $1.12 |
||
|
14
|
14
33220-58J01-000
センサアッシ,クランクポジション
4V; 2003-09-01~2004-03-01 |
33220-58J01-000 |
— | ||
| replacement | |||||
|
14
|
14
33220-58J02-000 SENSOR ASSY,CRANK POSITION4V; 2003-09-01~2004-03-01 |
33220-58J02-000 |
US $104.88 |
||
|
15
|
15
33220-58J20-000
SENSOR ASSY,POSITION
4V; 2003-09-01~2004-03-01 |
33220-58J20-000 |
— | ||
| replacement | |||||
|
15
|
15
33220-64L10-000 SENSOR ASSY,POSITION4V; 2003-09-01~2004-03-01 |
33220-64L10-000 |
from US $71.20 |
||
|
16
|
16
01550-06163-000
Bolt
4V; 2003-09-01~2004-03-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0616B-000 Bolt4V; 2003-09-01~2004-03-01 |
01550-0616B-000 |
from US $0.76 |
||
|
16
|
16
01550-0616A-000 Bolt4V; 2003-09-01~2004-03-01 |
01550-0616A-000 |
from US $0.76 |
||
|
17
|
17
33400-76G01-000
コイルアッシ,イグニツシヨン(DENSO)
DENSO; 4V; 2003-09-01~2004-03-01 |
33400-76G01-000 |
— | ||
| replacement | |||||
|
17
|
17
33400-85K10-000 COIL ASSY,IGNITION DEDENSO; 4V; 2003-09-01~2004-03-01 |
33400-85K10-000 |
US $226.48 |
||
|
17
|
17
33400-76G11-000
Coil assy, ignition
ミツビシ; 4V; 2003-09-01~2004-03-01 |
33400-76G11-000 |
— | ||
| replacement | |||||
|
17
|
17
33400-85K10-000 COIL ASSY,IGNITION DEミツビシ; 4V; 2003-09-01~2004-03-01 |
33400-85K10-000 |
US $226.48 |
||
|
18
|
18
09135-06024-000 BOLT(6X23)4V; 2003-09-01~2004-03-01 |
09135-06024-000 |
US $12.50 |
||
|
19
|
19
33924-58J00-000
ブラケット,インジェクションコントロール
4V; 2003-09-01~2004-03-01 |
33924-58J00-000 |
— | ||
|
20
|
20
34955-60E00-000 BUSH4V; 2003-09-01~2004-03-01 |
34955-60E00-000 |
US $2.40 |
||
|
21
|
21
02162-06123-000
Bolt (6x12)
4V; 2003-09-01~2004-03-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
21
|
21
02162-0612B-000 SCREWBolt 4V; 2003-09-01~2004-03-01 |
02162-0612B-000 |
from US $0.80 |
||
|
21
|
21
02162-0612A-000 SCREWBolt, bracket 4V; 2003-09-01~2004-03-01 |
02162-0612A-000 |
from US $0.80 |
||
|
22
|
22
02162-06253-000
Bolt
4V; 2003-09-01~2004-03-01 |
02162-06253-000 |
— | ||
| replacement | |||||
|
22
|
22
02162-0625A-000 SCREW4V; 2003-09-01~2004-03-01 |
02162-0625A-000 |
from US $0.76 |
||
|
23
|
23
33920-58J22-000
コントローラアッシ,インジェクション/AT/エアコン
4V:AT:4WD; 2003-09-01~2004-03-01 |
33920-58J22-000 |
— | ||
| replacement | |||||
|
23
|
23
33920-58J24-000
コントローラアッシ,インジェクション/エアコン
4V:AT:4WD; 2003-09-01~2004-03-01 |
33920-58J24-000 |
— | ||
