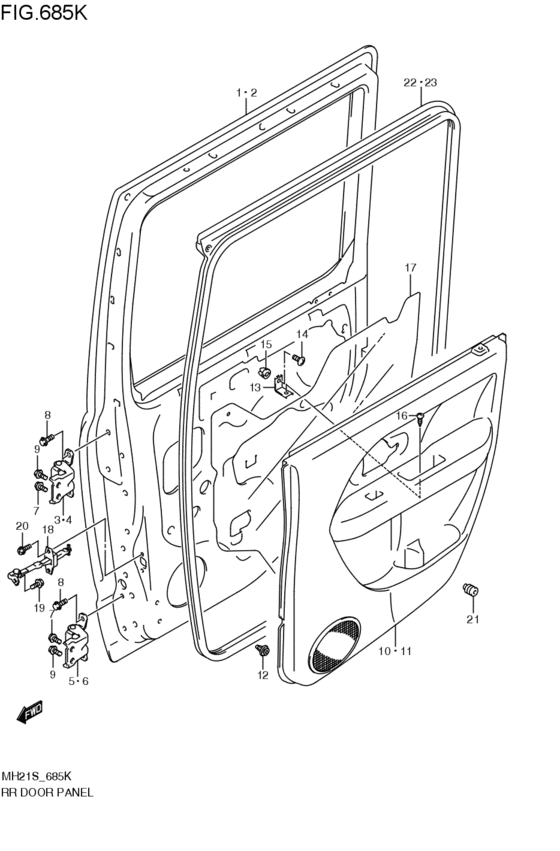

rear door panel (2003-09-01~2004-03-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- FB
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- SAB-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68003-58J00-000
パネルアッシ,リヤドア,ライト
2003-09-01~2004-03-01 |
68003-58J00-000 |
— | ||
| replacements | |||||
|
1
|
1
09159-06096-000 NUT2003-09-01~2004-03-01 |
09159-06096-000 |
from US $4.28 |
||
|
1
|
1
68003-58J02-000
パネルアッシ,リヤドア,ライト
2003-09-01~2004-03-01 |
68003-58J02-000 |
— | ||
|
2
|
2
68004-58J00-000
パネルアッシ,リヤドア,レフト
2003-09-01~2004-03-01 |
68004-58J00-000 |
— | ||
| replacements | |||||
|
2
|
2
09159-06096-000 NUT2003-09-01~2004-03-01 |
09159-06096-000 |
from US $4.28 |
||
|
2
|
2
68004-58J02-000
パネルアッシ,リヤドア,レフト
2003-09-01~2004-03-01 |
68004-58J02-000 |
— | ||
|
3
|
3
69410-58J00-000
ヒンジ,リヤドアアッパ,ライト
2003-09-01~2004-03-01 |
69410-58J00-000 |
— | ||
|
4
|
4
69420-58J00-000
ヒンジ,リヤドアアッパ,レフト
2003-09-01~2004-03-01 |
69420-58J00-000 |
— | ||
|
5
|
5
69430-58J00-000
ヒンジ,リヤドアロア,ライト
2003-09-01~2004-03-01 |
69430-58J00-000 |
— | ||
|
6
|
6
69440-58J00-000
ヒンジ,リヤドアロア,レフト
2003-09-01~2004-03-01 |
69440-58J00-000 |
— | ||
|
7
|
7
01551-08203-000
Bolt
2003-09-01~2004-03-01 |
01551-08203-000 |
— | ||
| replacement | |||||
|
7
|
7
01551-0820A-000 Bolt2003-09-01~2004-03-01 |
01551-0820A-000 |
from US $0.96 |
||
|
8
|
8
09103-08389-000 BOLT(8X24)2003-09-01~2004-03-01 |
09103-08389-000 |
US $17.30 |
||
|
9
|
9
09113-08001-000 BOLT(8X20)2003-09-01~2004-03-01 |
09113-08001-000 |
from US $1.08 |
||
|
10
|
10
83730-58J00-AYY
トリム,リヤドア,ライト(ベージュ/グレー)
ベージュ/グレー; FB; 2003-09-01~2004-03-01 |
83730-58J00-AYY |
— | ||
|
10
|
10
83730-58J00-P4Z
トリム,リヤドア,ライト(グレー)
グレ-; FA,FB,FBM,FC,FD,FR; 2003-09-01~2004-03-01 |
83730-58J00-P4Z |
— | ||
|
11
|
11
83740-58J00-AYY
トリム,リヤドア,レフト(ベージュ/グレー)
ベージュ/グレー; FB; 2003-09-01~2004-03-01 |
83740-58J00-AYY |
— | ||
|
11
|
11
83740-58J00-P4Z
トリム,リヤドア,レフト(グレー)
グレ-; FA,FB,FBM,FC,FD,FR; 2003-09-01~2004-03-01 |
83740-58J00-P4Z |
— | ||
|
12
|
12
09409-10312-000 CLIP2003-09-01~2004-03-01 |
09409-10312-000 |
from US $1.17 |
||
|
13
|
13
83751-73H00-000
Bracket,side door trim
2003-09-01~2004-03-01 |
83751-73H00-000 |
— | ||
| replacement | |||||
|
13
|
13
83751-73H0V-000 BRACKET,SIDE DR TRIM2003-09-01~2004-03-01 |
83751-73H0V-000 |
US $4.38 |
||
|
14
|
14
03241-06123-000
Screw
2003-09-01~2004-03-01 |
03241-06123-000 |
— | ||
| replacement | |||||
|
14
|
14
03241-0612A-000 SCREW2003-09-01~2004-03-01 |
03241-0612A-000 |
US $0.80 |
||
|
15
|
15
09148-06007-000 NUT2003-09-01~2004-03-01 |
09148-06007-000 |
from US $0.91 |
||
|
16
|
16
09132-05051-000
スクリュ,5X12
2003-09-01~2004-03-01 |
09132-05051-000 |
— | ||
| replacement | |||||
|
16
|
16
09132-05058-000 SCREW(5X12)2003-09-01~2004-03-01 |
09132-05058-000 |
US $12.50 |
||
|
17
|
17
83911-60X51-000
Cover, door sealing (600x1200)
2003-09-01~2004-03-01 |
83911-60X51-000 |
— | ||
| replacement | |||||
|
17
|
17
83911-60X52-000 COVER,DR SEALING2003-09-01~2004-03-01 |
83911-60X52-000 |
US $6.06 |
||
|
18
|
18
81830-58J00-000
ストップ,リヤドアオープン
2003-09-01~2004-03-01 |
81830-58J00-000 |
— | ||
| replacement | |||||
|
18
|
18
81830-58J02-000 STOP,REAR DOOR OPEN2003-09-01~2004-03-01 |
81830-58J02-000 |
US $28.89 |
||
|
19
|
19
09112-08004-000 BOLT(8X25)2003-09-01~2004-03-01 |
09112-08004-000 |
US $1.22 |
||
|
20
|
20
09122-86004-000 SCREW(6X20)2003-09-01~2004-03-01 |
09122-86004-000 |
US $11.80 |
||
|
21
|
21
82711-56B00-000 STOPPER,FR DOORStopper, fr dr lower 2003-09-01~2004-03-01 |
82711-56B00-000 |
from US $2.88 |
||
|
22
|
22
84661-58J00-000
ウェザストリップ,リヤドアオープニング,ライト
2003-09-01~2004-03-01 |
84661-58J00-000 |
— | ||
|
23
|
23
84671-58J00-000
ウェザストリップ,リヤドアオープニング,レフト
2003-09-01~2004-03-01 |
84671-58J00-000 |
— | ||
