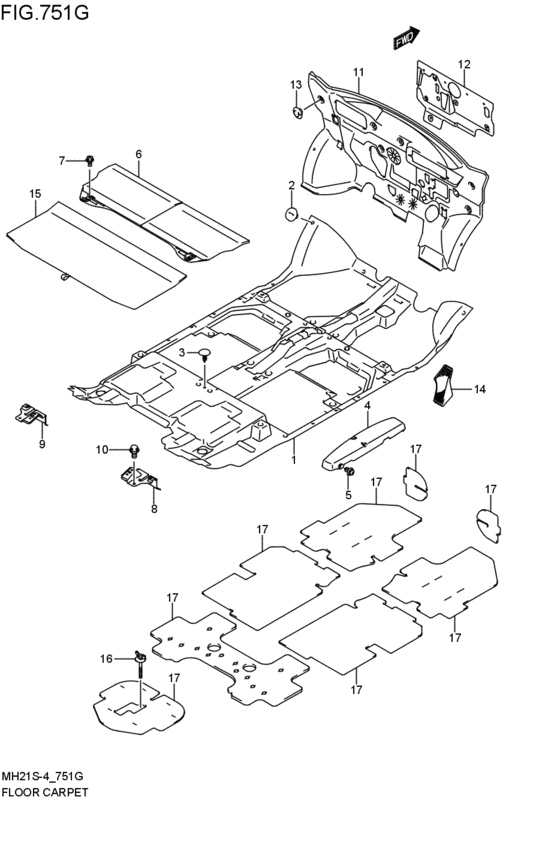

floor mat / carpet (2005-08-01~2007-06-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2005 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- FBS
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- NSAB
- ディスチャージ
- DISCH
- star
- 3STAR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75110-58J30-S01
カーペット,フロア(グレー)
グレ-; AT:(FA,FB,FBM,FBS,FBSN,FC,FCS,FCSC,FCSN); 2005-08-01~2007-06-01 |
75110-58J30-S01 |
— | ||
|
2
|
2
09148-05042-000 CLIP2005-08-01~2007-06-01 |
09148-05042-000 |
US $1.12 |
||
|
3
|
3
09409-10302-P4Z CLIP(GRAY)グレ-; 2005-08-01~2007-06-01 |
09409-10302-P4Z |
US $12.90 |
||
|
4
|
4
75121-58J00-P4Z
カバー,フロア,センタ(グレー)
グレ-; AT; 2005-08-01~2007-06-01 |
75121-58J00-P4Z |
— | ||
| replacement | |||||
|
4
|
4
75121-58J01-P4Z
New Genuine Part
グレ-; AT; 2005-08-01~2007-06-01 |
75121-58J01-P4Z |
— | ||
|
5
|
5
09409-06322-P4Z CLIP(GRAY)グレ-; AT; 2005-08-01~2007-06-01 |
09409-06322-P4Z |
from US $1.82 |
||
|
6
|
6
75101-58J01-S01 FLAP ASSY,RR FLOORグレ-; 2005-08-01~2007-06-01 |
75101-58J01-S01 |
US $296.24 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket 2005-08-01~2007-06-01 |
02162-0612A-000 |
from US $0.79 |
||
|
8
|
8
75451-58J00-000
カバー,リヤフロアサイド,ライト
2005-08-01~2007-06-01 |
75451-58J00-000 |
— | ||
| replacement | |||||
|
8
|
8
75451-58J10-000 COVER,RR FL SIDE,R2005-08-01~2007-06-01 |
75451-58J10-000 |
US $13.21 |
||
|
9
|
9
75456-58J00-000
カバー,リヤフロアサイド,レフト
2005-08-01~2007-06-01 |
75456-58J00-000 |
— | ||
| replacement | |||||
|
9
|
9
75456-58J10-000 COVER,RR FL SIDE,L2005-08-01~2007-06-01 |
75456-58J10-000 |
US $13.21 |
||
|
10
|
10
01551-1020A-000 Bolt2005-08-01~2007-06-01 |
01551-1020A-000 |
US $17.30 |
||
|
11
|
11
75220-58J01-000
サイレンサ,ダッシュパネル
2005-08-01~2007-06-01 |
75220-58J01-000 |
— | ||
|
12
|
12
75280-58J03-000
サイレンサ,ダッシュアウタ
2005-08-01~2007-06-01 |
75280-58J03-000 |
— | ||
| replacement | |||||
|
12
|
12
75280-58J05-000
New Genuine Part
2005-08-01~2007-06-01 |
75280-58J05-000 |
— | ||
|
13
|
13
09148-05037-000 CLIP2005-08-01~2007-06-01 |
09148-05037-000 |
from US $1.28 |
||
|
14
|
14
75490-58J00-000
ペダル,フットレスト
AT; 2005-08-01~2007-06-01 |
75490-58J00-000 |
— | ||
|
15
|
15
75440-58J11-S01
カバー,スペアタイヤ(グレー)
グレ-; 2005-08-01~2007-06-01 |
75440-58J11-S01 |
— | ||
|
16
|
16
75463-70B00-000
SCREW,SPARE TIRE
2005-08-01~2007-06-01 |
75463-70B00-000 |
— | ||
|
17
|
17
99611-60A01-000 SHEET,SILENCER 800X1000X32005-08-01~2007-06-01 |
99611-60A01-000 |
US $62.40 |
||
