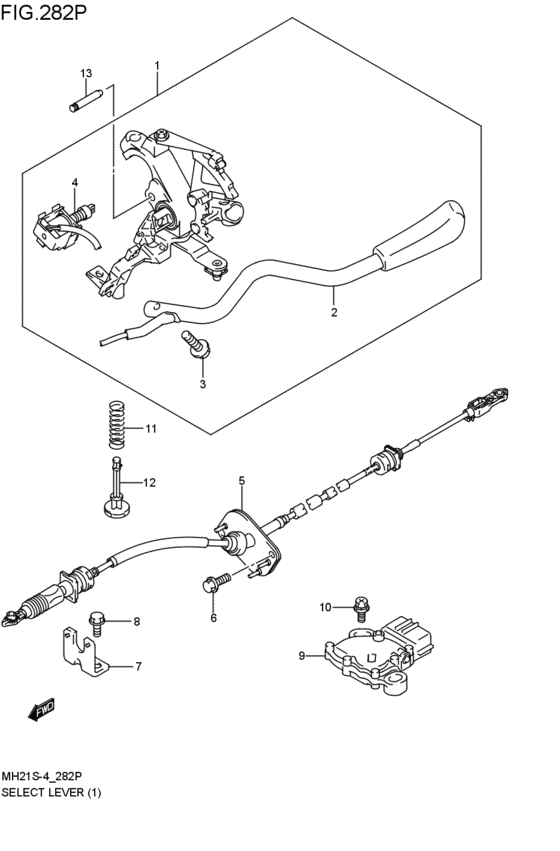

select lever (AT; 2005-08-01~2007-06-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2005 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- FBS
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- NSAB
- ディスチャージ
- DISCH
- star
- 3STAR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-73H51-000
セレクトアッシ,コラム
AT; 2005-08-01~2007-06-01 |
28100-73H51-000 |
— | ||
| replacement | |||||
|
1
|
1
28100-73H53-000
New Genuine Part
AT; 2005-08-01~2007-06-01 |
28100-73H53-000 |
— | ||
|
2
|
2
28110-73H51-000
レバー,コラムセレクト
AT; 2005-08-01~2007-06-01 |
28110-73H51-000 |
— | ||
| replacement | |||||
|
2
|
2
28110-73H52-000
New Genuine Part
AT; 2005-08-01~2007-06-01 |
28110-73H52-000 |
— | ||
|
3
|
3
28116-73H10-000
ボルト,コラムレバー
AT; 2005-08-01~2007-06-01 |
28116-73H10-000 |
— | ||
|
4
|
4
28610-73H50-000
ソレノイド,シフトロック
AT; 2005-08-01~2007-06-01 |
28610-73H50-000 |
— | ||
|
5
|
5
28210-58J13-000
ケーブルアッシ,コラム
AT; 2005-08-01~2007-06-01 |
28210-58J13-000 |
— | ||
|
6
|
6
02162-0620A-000
Bolt
AT; 2005-08-01~2007-06-01 |
02162-0620A-000 |
— | ||
| replacement | |||||
|
6
|
6
02162-0620C-000 SCREWAT; 2005-08-01~2007-06-01 |
02162-0620C-000 |
from US $0.83 |
||
|
7
|
7
28221-58J10-000
ブラケット,セレクトケーブル
AT; 2005-08-01~2007-06-01 |
28221-58J10-000 |
— | ||
|
8
|
8
28223-61D00-000 BoltBolt, selector cable bracket AT; 2005-08-01~2007-06-01 |
28223-61D00-000 |
US $3.97 |
||
|
9
|
9
37720-76G31-000 SWITCH ASSY,SHIFTAT; 2005-08-01~2007-06-01 |
37720-76G31-000 |
from US $134.46 |
||
|
10
|
10
25948-76G11-000 BOLT,SHIFT SWITCHAT; 2005-08-01~2007-06-01 |
25948-76G11-000 |
from US $1.98 |
||
|
11
|
11
20440-73H10-000 SPRING,LOCK RELEASEAT; 2005-08-01~2007-06-01 |
20440-73H10-000 |
US $1.69 |
||
|
12
|
12
20441-73H10-000 BUTTON,LOCK RELEASEAT; 2005-08-01~2007-06-01 |
20441-73H10-000 |
US $2.32 |
||
|
13
|
13
28117-73H10-000 PINAT; 2005-08-01~2007-06-01 |
28117-73H10-000 |
US $3.24 |
||
