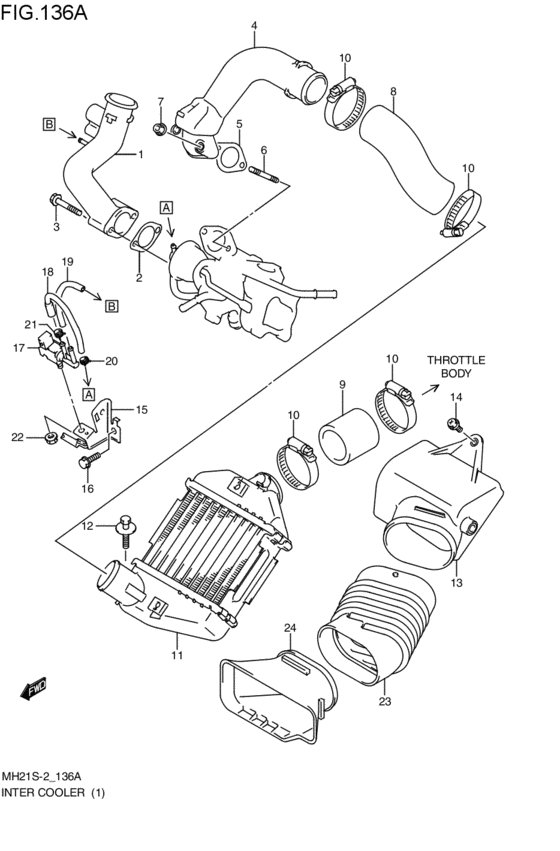

inter-cooler (TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2004 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- FCM
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- SAB-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13950-58J30-000 PIPE,TURBO INTAKE AIRTURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
13950-58J30-000 |
US $98.26 |
||
|
2
|
2
13955-56F00-000 GASKET,INTK AIR PIPEGasket, intk air pipe TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
13955-56F00-000 |
US $2.28 |
||
|
3
|
3
01550-06553-000
Bolt
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
01550-06553-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0655B-000 BoltBolt, hydraulic unit no.2 TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
01550-0655B-000 |
from US $0.91 |
||
|
4
|
4
13961-58J30-000 PIPE,TURBO OUTLET AIRTURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
13961-58J30-000 |
US $93.84 |
||
|
5
|
5
13965-56F00-000 GASKET,OUTLET AIR PIPEGasket, outlet air pipe TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
13965-56F00-000 |
US $2.40 |
||
|
6
|
6
09108-06132-000 BOLT,STUDTURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
09108-06132-000 |
US $19.10 |
||
|
7
|
7
08316-10063-000
Nut
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1006B-000 NUTTURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
13966-58J50-000
ホース,インタクーラ,NO.1
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
13966-58J50-000 |
— | ||
|
9
|
9
13967-58J50-000
ホース,インタクーラ,NO.2
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
13967-58J50-000 |
— | ||
|
10
|
10
09402-57511-000 CLAMPTURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
09402-57511-000 |
from US $6.24 |
||
|
11
|
11
13620-58J50-000
クーラ,インタ
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
13620-58J50-000 |
— | ||
|
12
|
12
09116-06171-000 BOLT(6X30)Bolt (6x30) TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
09116-06171-000 |
from US $4.22 |
||
|
13
|
13
13987-58J50-000
ダクト,インタクーラ
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
13987-58J50-000 |
— | ||
|
14
|
14
01550-06163-000
Bolt
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0616B-000 BoltTURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
01550-0616B-000 |
from US $0.76 |
||
|
14
|
14
01550-0616A-000 BoltTURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
01550-0616A-000 |
from US $0.76 |
||
|
15
|
15
18116-78G51-000 BRACKET,ABV&W/G VSVTURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
18116-78G51-000 |
US $6.15 |
||
|
16
|
16
01550-08163-000
Bolt, holder
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0816B-000 BoltTURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
01550-0816B-000 |
from US $0.91 |
||
|
16
|
16
01550-0816A-000 BoltBolt, rear TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
01550-0816A-000 |
from US $0.91 |
||
|
17
|
17
18117-52G00-000 VALVE ASSY,DUTY FOR PURGEValve assy, evap purge TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
18117-52G00-000 |
from US $89.60 |
||
|
18
|
18
09359-40801-600 HOSEHose, w/g cont inlet L:600>180; TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
09359-40801-600 |
US $16.04 |
||
|
19
|
19
09359-40801-600 HOSEHose, w/g cont inlet L:600>100; TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
09359-40801-600 |
US $16.04 |
||
|
20
|
20
09401-07402-000
Clip, boost hose
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
09401-07402-000 |
— | ||
| replacement | |||||
|
20
|
20
09401-08409-000 CLIPTURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
09401-08409-000 |
from US $0.99 |
||
|
21
|
21
09401-08411-000 CLIPTURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
09401-08411-000 |
from US $0.91 |
||
|
22
|
22
08316-10063-000
Nut
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
22
|
22
08316-1006B-000 NUTTURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
08316-1006B-000 |
from US $0.76 |
||
|
23
|
23
13988-58J50-000
ホース,インタクーラダクト
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
13988-58J50-000 |
— | ||
|
24
|
24
13989-58J50-000
パイプ,インタクーラエア,インレット
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
13989-58J50-000 |
— | ||
| replacement | |||||
|
24
|
24
13989-58J51-000
パイプ,インタクーラエアインレット
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD); 2004-04-01~2004-12-01 |
13989-58J51-000 |
— | ||
