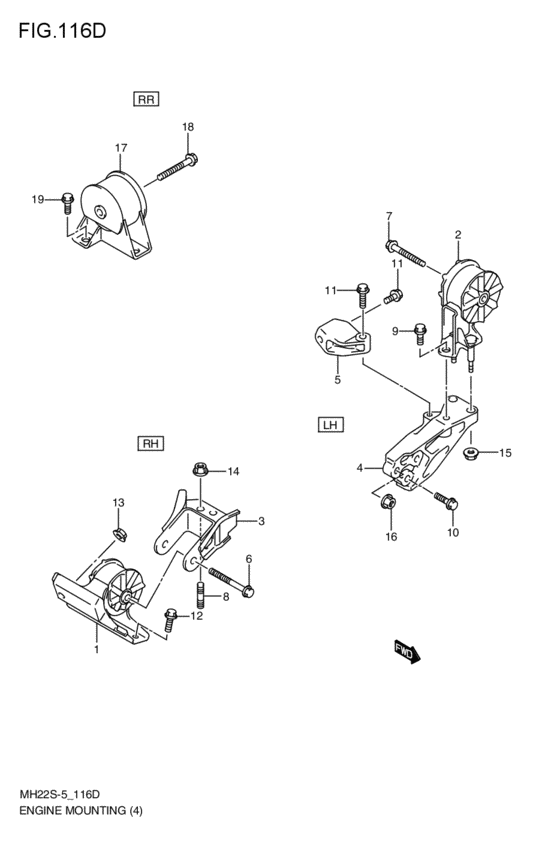

engine mounting (4WD:MT; 2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- MT
- grade
- FB
- abs
- ABS
- シートリフタ
- NLIFTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-58J10-000 MOUNTING,ENG,R4WD:MT; 2007-05-01~ |
11610-58J10-000 |
US $75.07 |
||
|
2
|
2
11620-58J20-000
マウンチング,エンジン,レフト
4WD:MT; 2007-05-01~ |
11620-58J20-000 |
— | ||
| replacement | |||||
|
2
|
2
11620-58J22-000 MOUNTING,ENG,L4WD:MT; 2007-05-01~ |
11620-58J22-000 |
US $169.60 |
||
|
3
|
3
11640-58J00-000
ブラケット,エンジンマウンチング,ライト
4WD:MT; 2007-05-01~ |
11640-58J00-000 |
— | ||
|
4
|
4
11651-58J00-000
ブラケット,エンジンマウンチング,レフト
4WD:MT; 2007-05-01~ |
11651-58J00-000 |
— | ||
|
5
|
5
11659-58J50-000
スチフナ,エンジンマウンチングブラケット,レフト
4WD:MT; 2007-05-01~ |
11659-58J50-000 |
— | ||
|
6
|
6
09113-10005-000 BOLT(10X90)4WD:MT; 2007-05-01~ |
09113-10005-000 |
from US $2.41 |
||
|
7
|
7
09113-10005-000 BOLT(10X90)4WD:MT; 2007-05-01~ |
09113-10005-000 |
from US $2.41 |
||
|
8
|
8
01421-1025A-000 BOLT,STUD4WD:MT; 2007-05-01~ |
01421-1025A-000 |
US $14.40 |
||
|
9
|
9
01550-1025A-000 BoltBolt, drive gear 4WD:MT; 2007-05-01~ |
01550-1025A-000 |
from US $1.06 |
||
|
10
|
10
01550-1035A-000 BoltBolt, fr fork upper 4WD:MT; 2007-05-01~ |
01550-1035A-000 |
from US $5.68 |
||
|
11
|
11
01550-1045A-000 Bolt4WD:MT; 2007-05-01~ |
01550-1045A-000 |
US $19.50 |
||
|
12
|
12
01551-1025A-000 Bolt4WD:MT; 2007-05-01~ |
01551-1025A-000 |
US $1.12 |
||
|
13
|
13
08316-1010A-000 NUTNut, kick starter 4WD:MT; 2007-05-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
14
|
14
08316-1010A-000 NUTNut, kick starter 4WD:MT; 2007-05-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
15
|
15
08316-1010A-000 NUTNut, kick starter 4WD:MT; 2007-05-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
16
|
16
08316-1010A-000 NUTNut, kick starter 4WD:MT; 2007-05-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
17
|
17
11710-58J00-000
マウンチング,エンジン,リヤ
4WD:MT; 2007-05-01~ |
11710-58J00-000 |
— | ||
|
18
|
18
11719-58J00-000 BOLT,MTG RR,10X1004WD:MT; 2007-05-01~ |
11719-58J00-000 |
US $2.47 |
||
|
19
|
19
01551-1025A-000 Bolt4WD:MT; 2007-05-01~ |
01551-1025A-000 |
US $1.12 |
||
